Xiegu X6200 HF Transceiver | 8W | Full Mode Full Band | RF Direct Sampling | Replaceable Battery | Built-in ATU | SDR Structure | WFM AIR RX
Xiegu X6200 HF Transceiver | 8W | Full Mode Full Band | RF Direct Sampling | Replaceable Battery | Built-in ATU | SDR Structure | WFM AIR RX
Discover a new horizon in the world of communications with the Xiegu X6200 HF Transceiver. Engineered with state-of-the-art RF Direct Sampling, this high-frequency transceiver brings a new level of clarity and precision to your contacts.
It has a 4-inch color screen, a replaceable battery pack, an automatic antenna tuner, a built-in as well as an external microphone, and a recorder. It also supports various SDR features, such as digital filters, noise reduction, pulse interference elimination, and spectrum/waterfall display. It has two USB interfaces, an ACC interface, a 3.5mmKEY interface, and an S/P interface. It has two external expansion component slots for additional applications and peripherals.
Elevate your radio operation experience with the Xiegu X6200 right now!

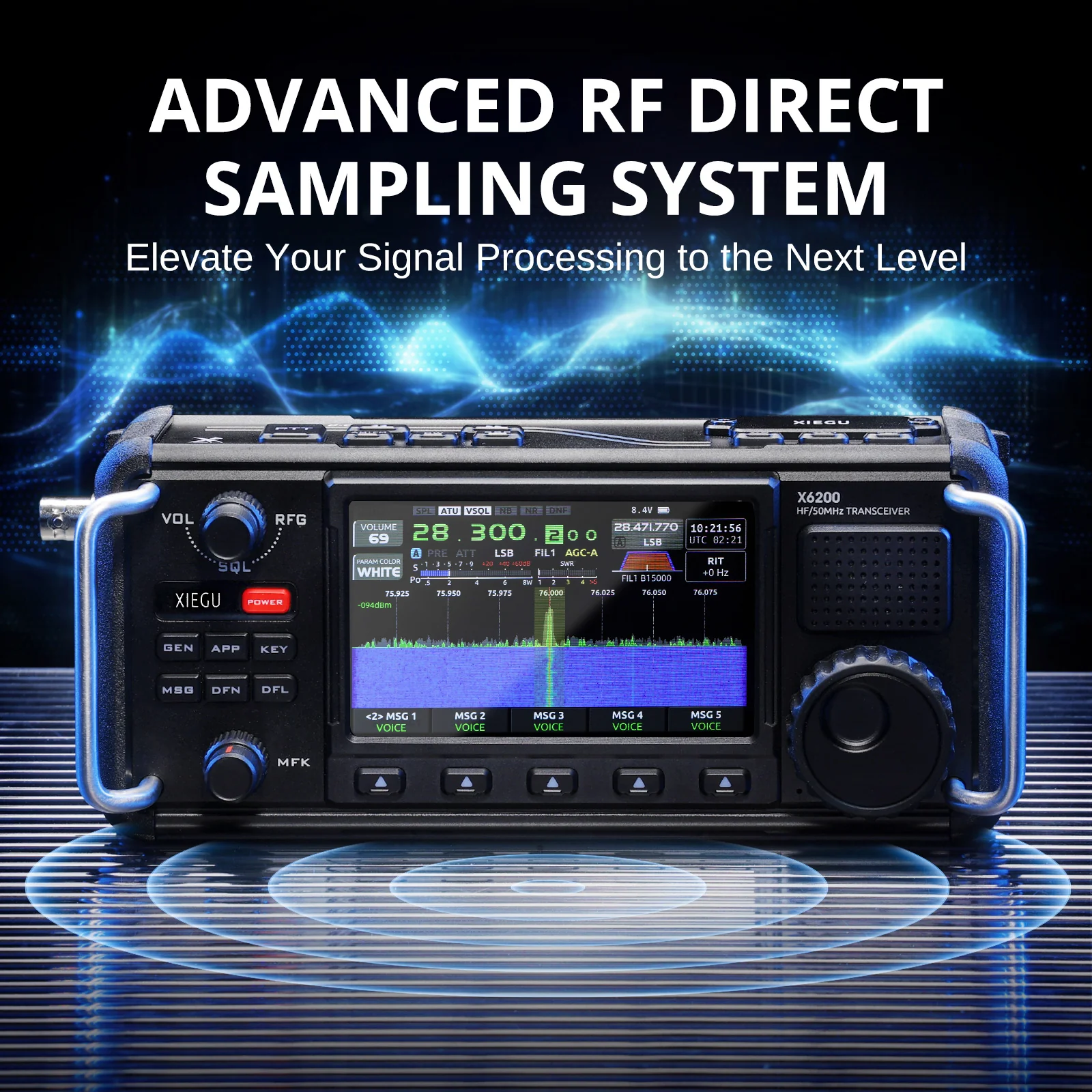

RF Direct Sampling System
Transform RF signals into digital format for unparalleled transmission clarity, revolutionizing communication quality.

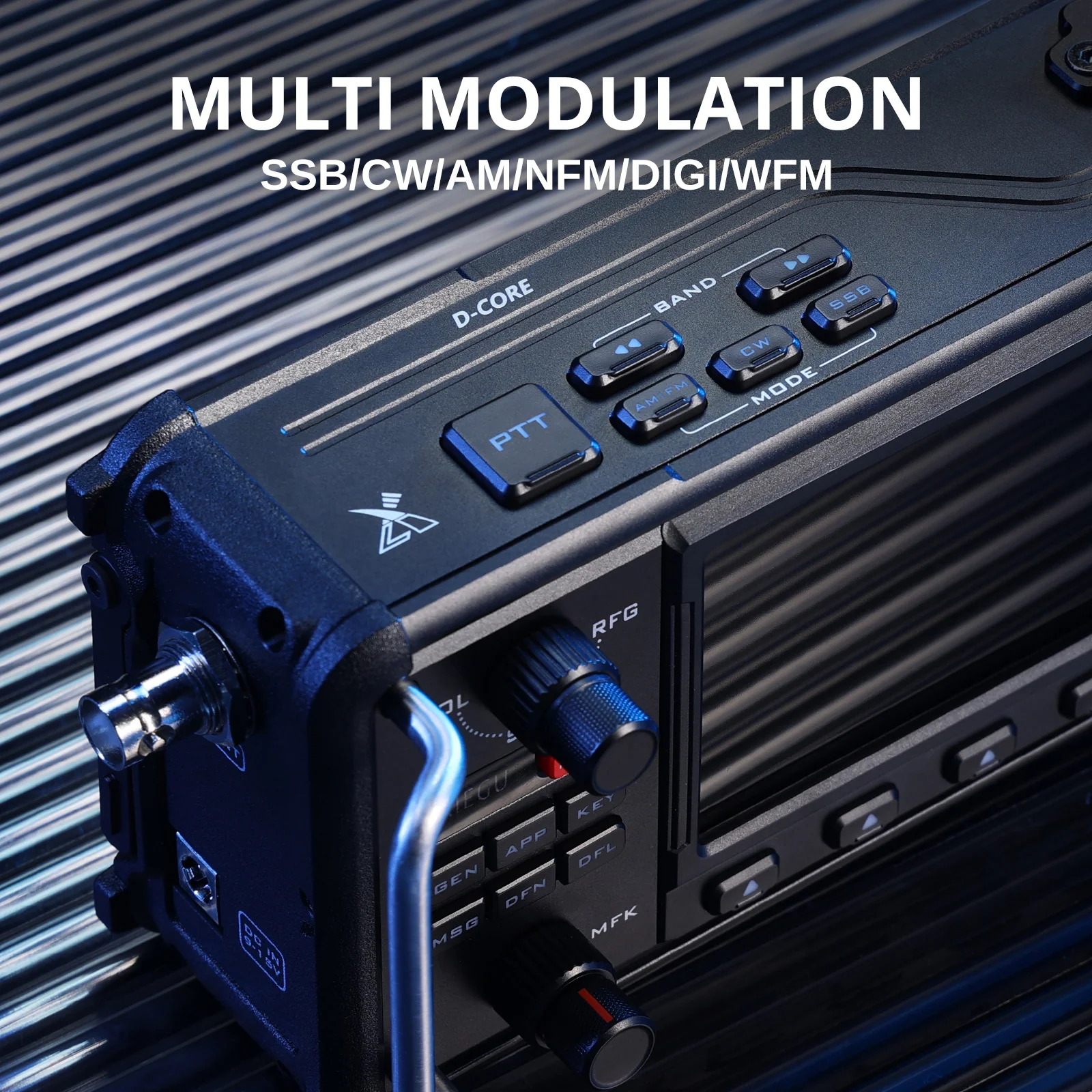

Multi Modulation
Comprehensive support for SSB, CW, AM, NFM, DIGI, and WFM modes, catering to enthusiasts and professionals alike.

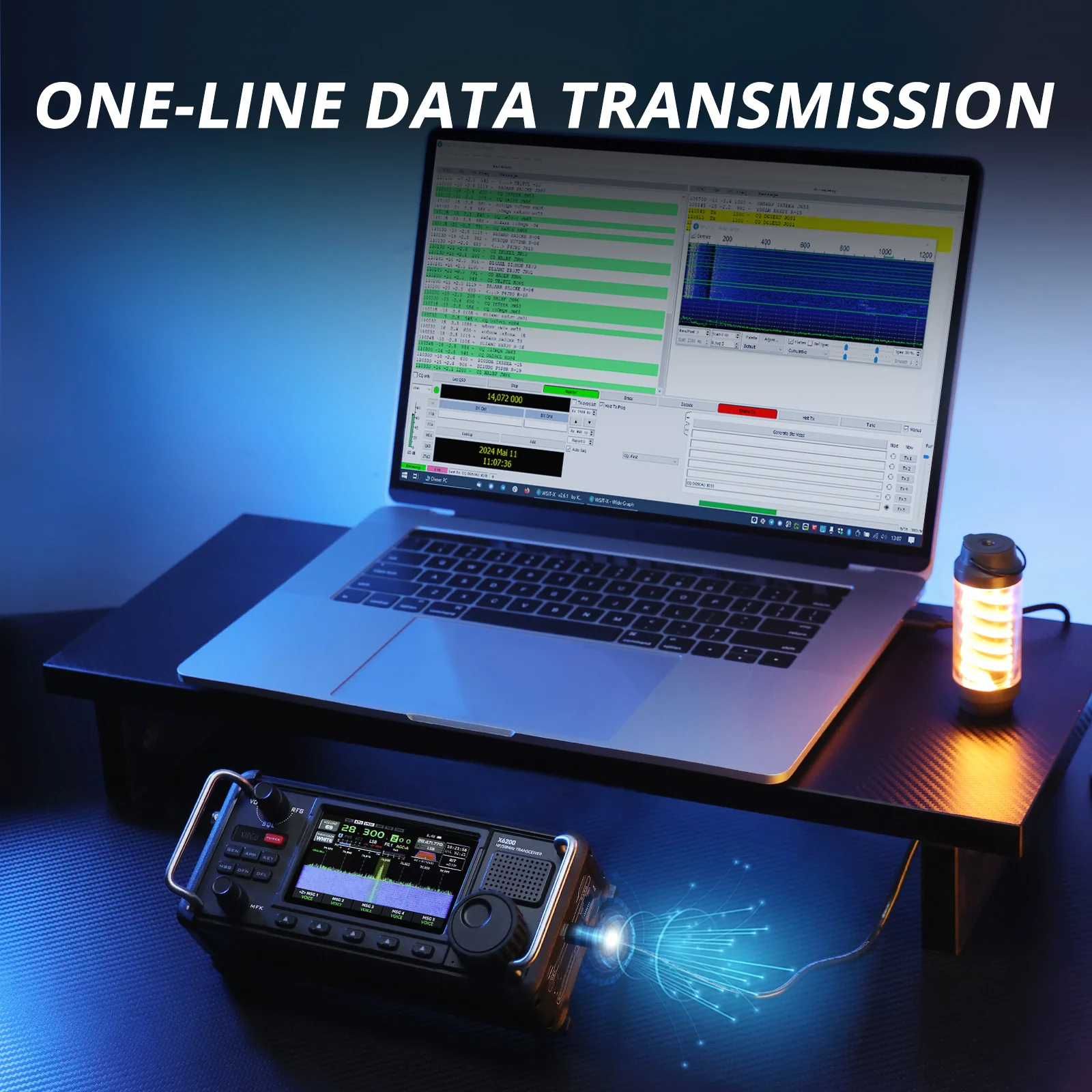

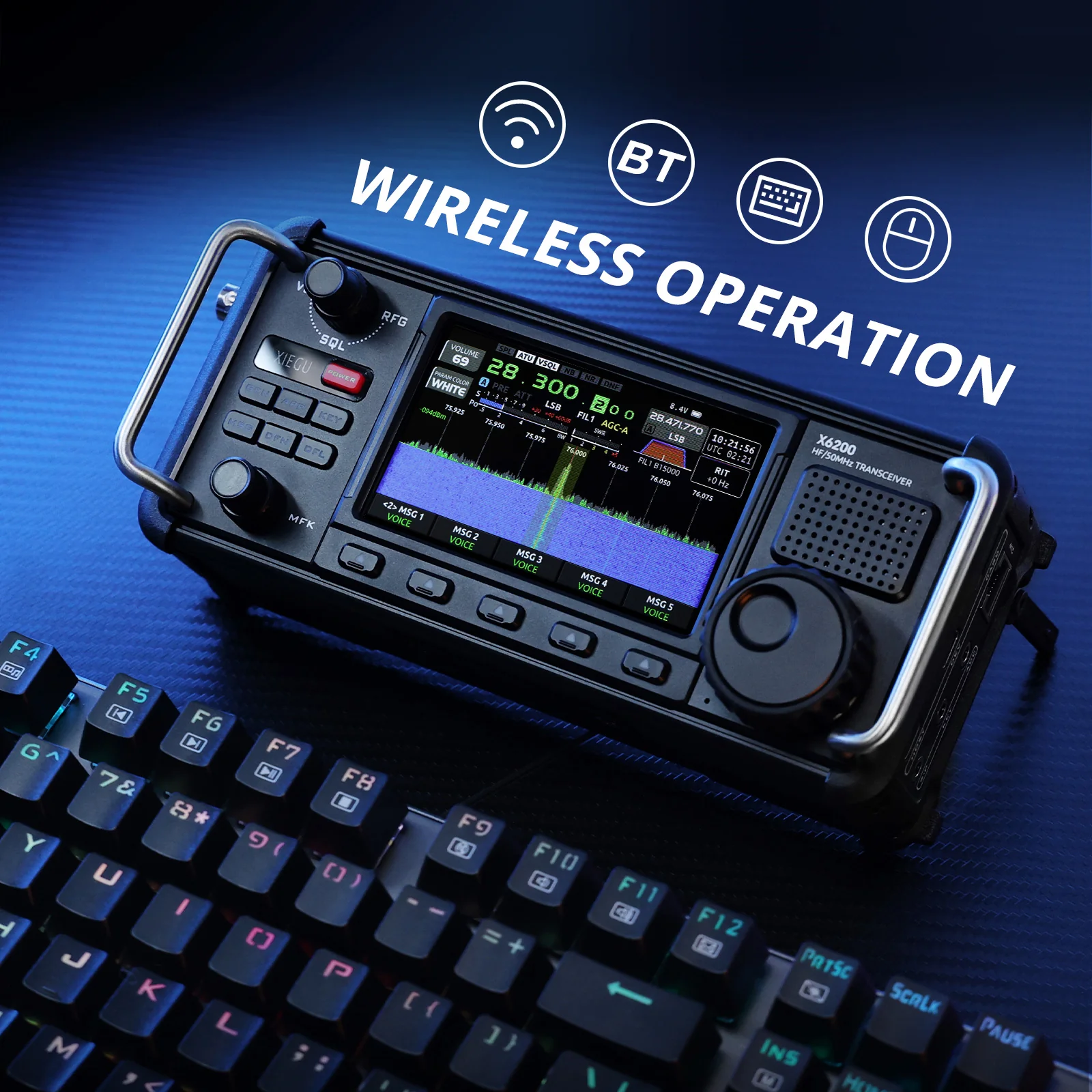

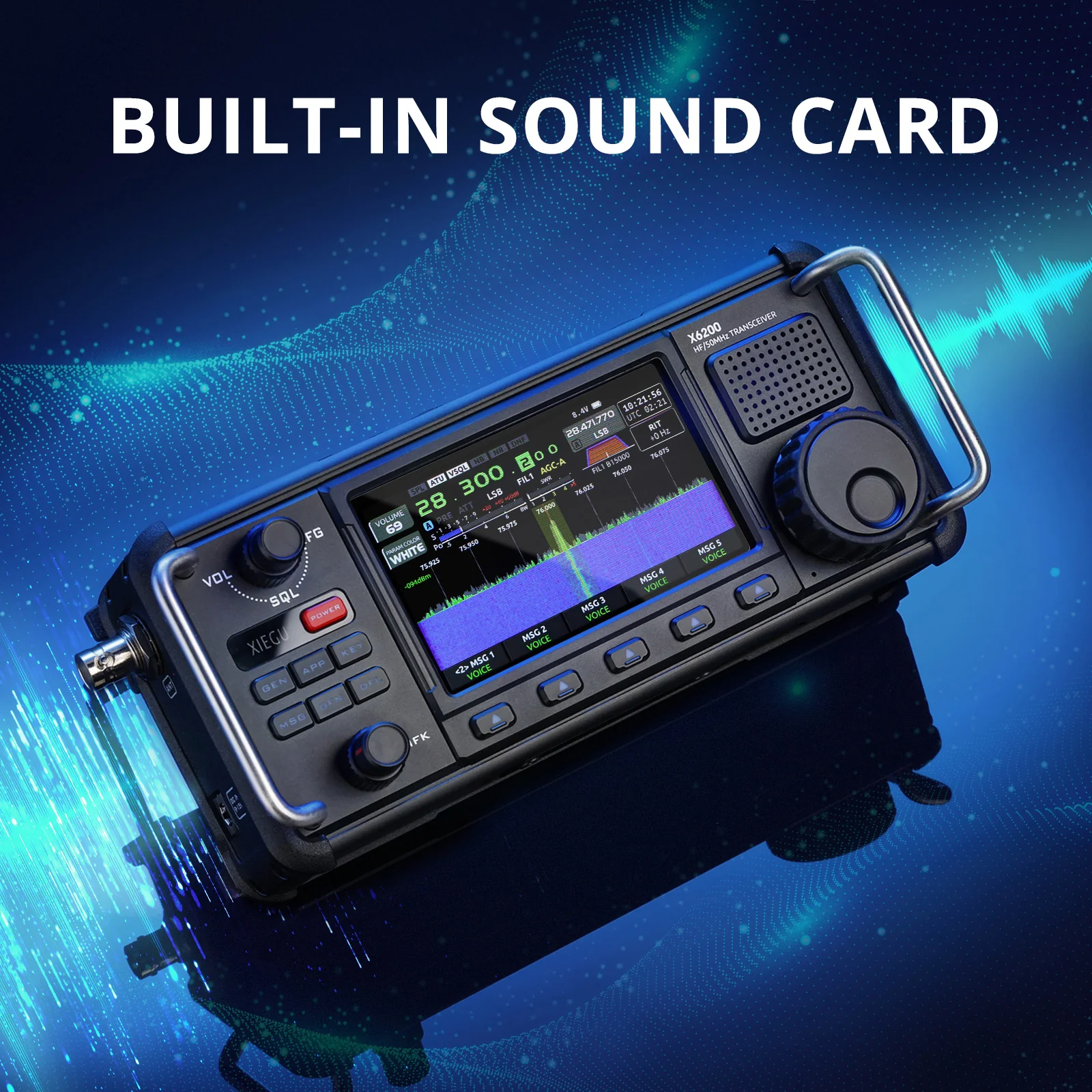

Seamless Connectivity

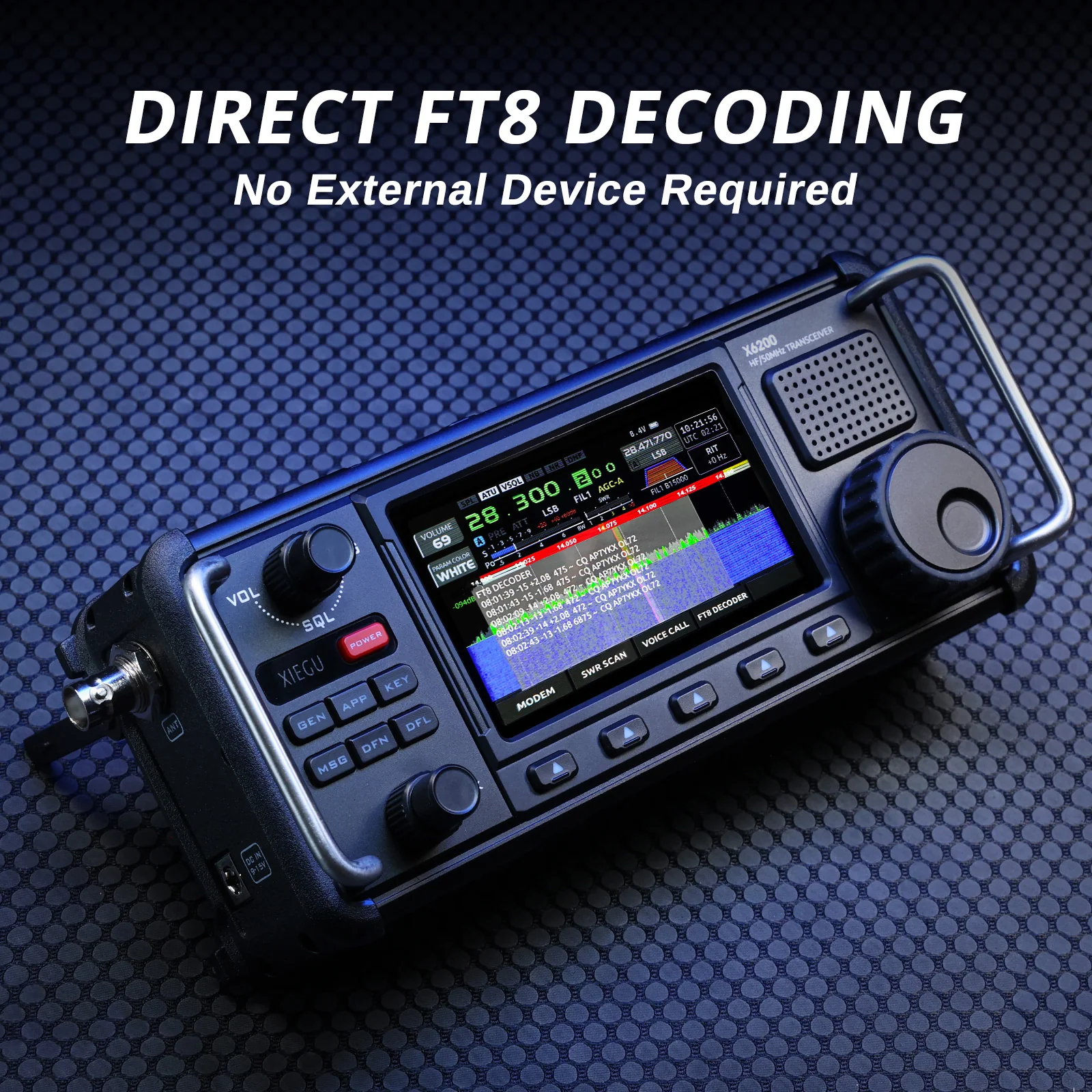

Integrated with a built-in sound card, FT8 decoder, and support for BT/WIFI operations.

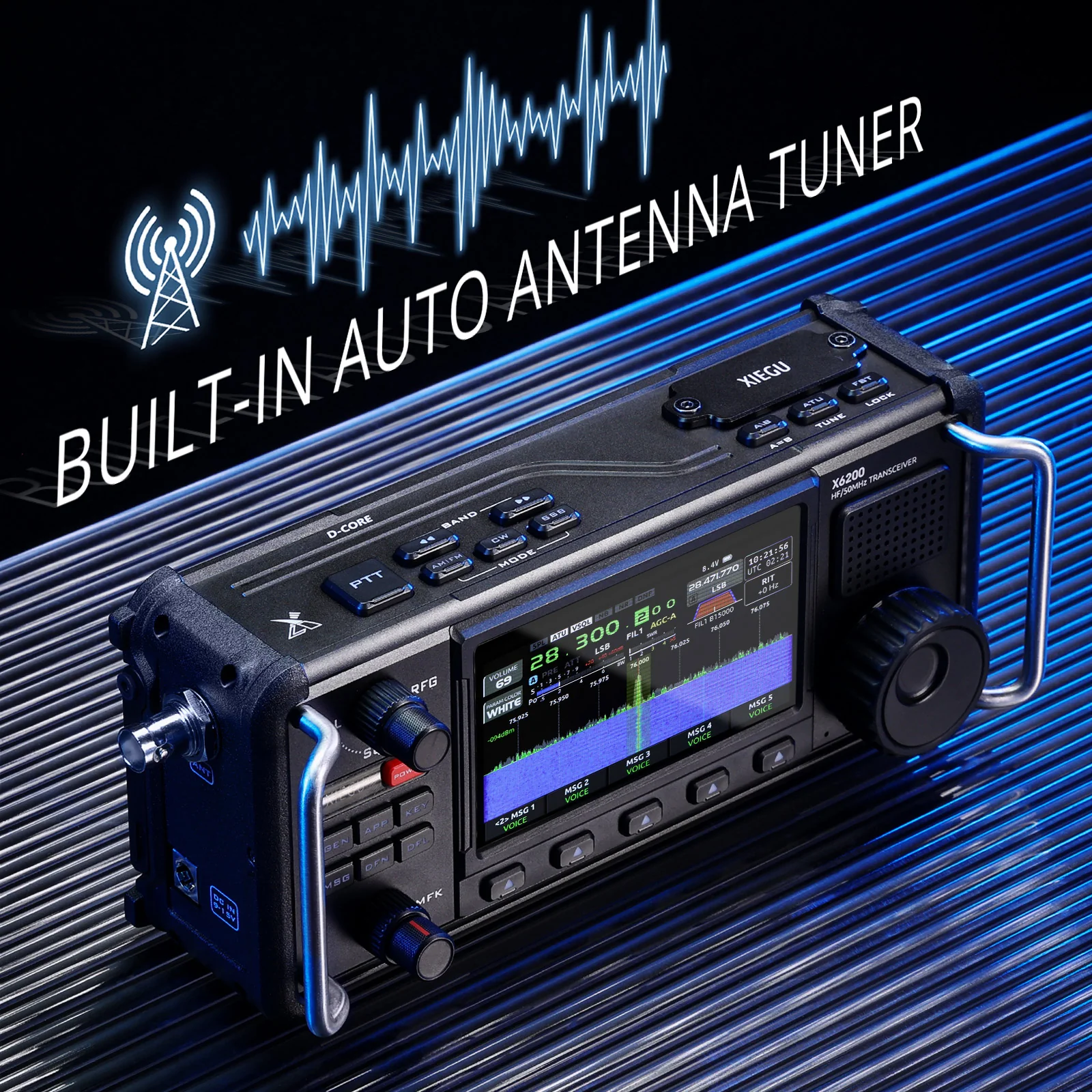

Auto Antenna Tuner
Auto-tune for the best signal, removing the hassle of manual adjustments, ensuring unparalleled signal reception and transmission.

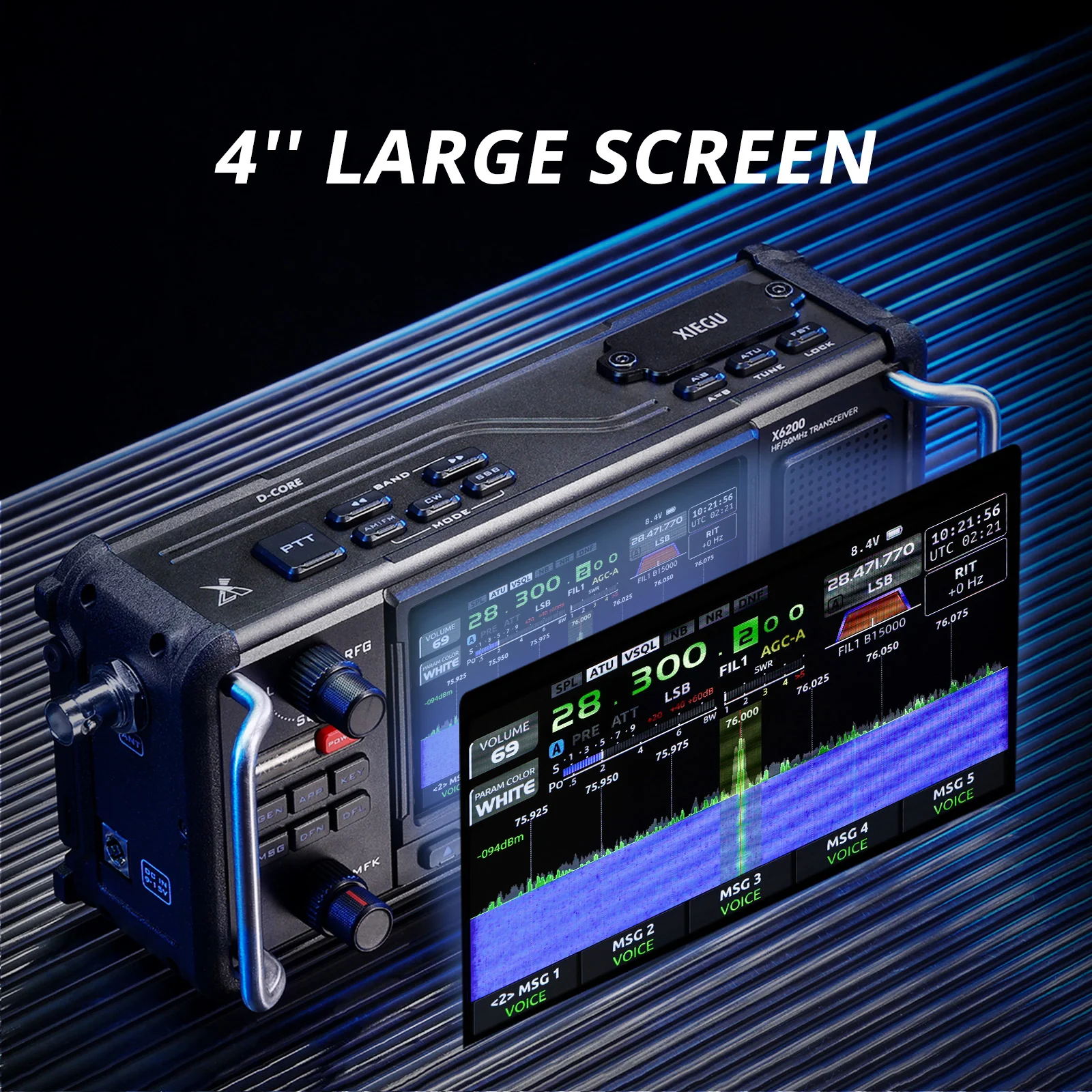

Advanced User Interface
Comes with a 4-inch high-resolution color screen. From spectrum displays with waterfalls to wide bandwidth spectral views, every detail is at your fingertips.
Portable Design
The Xiegu X6200 features a compact frame. It's your one-stop solution for both desktop and field POTA activities.
Replaceable Battery
A 3200mAh replaceable battery offers 4-5 hours of operation under light use. Enjoy reliable, continuous communication anywhere.

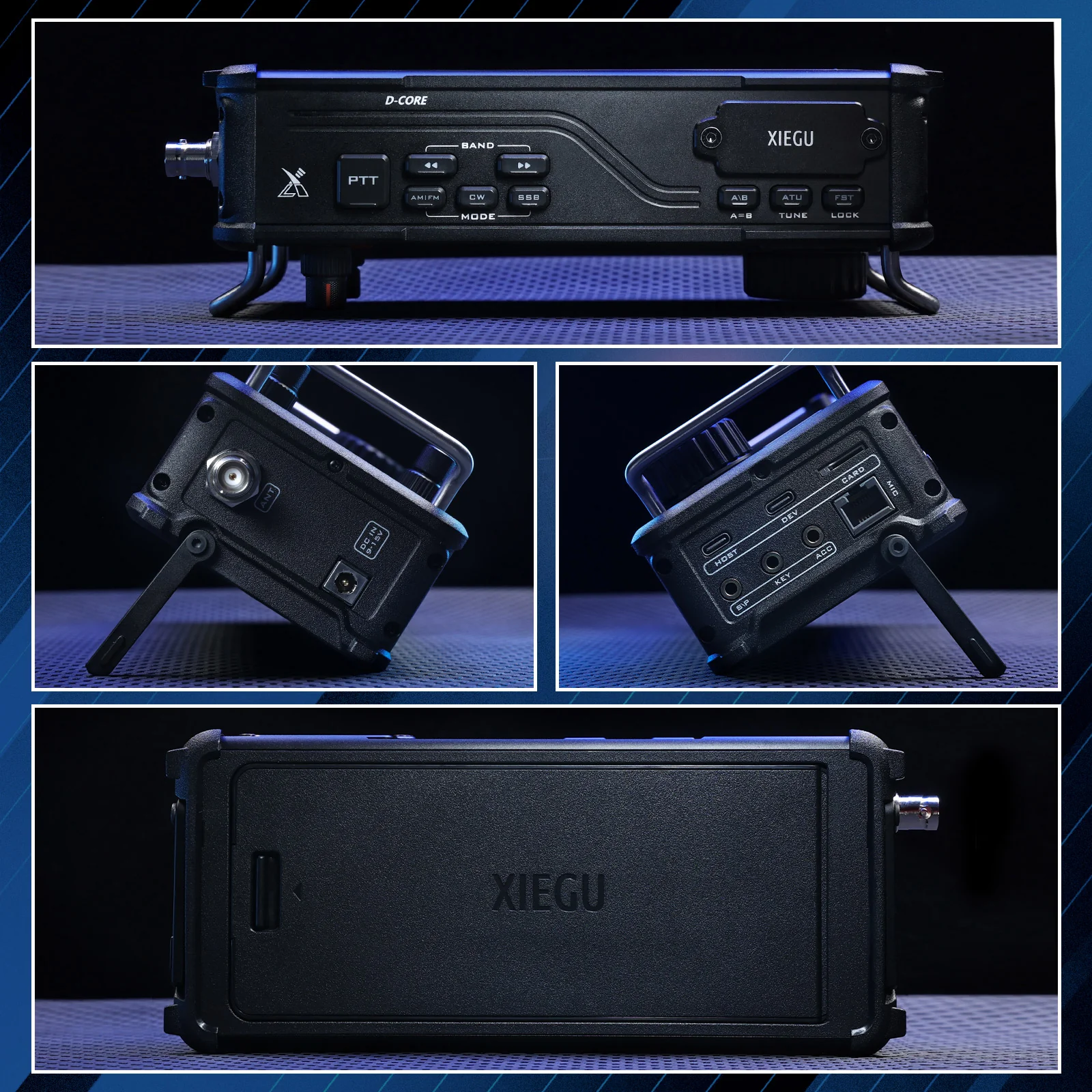

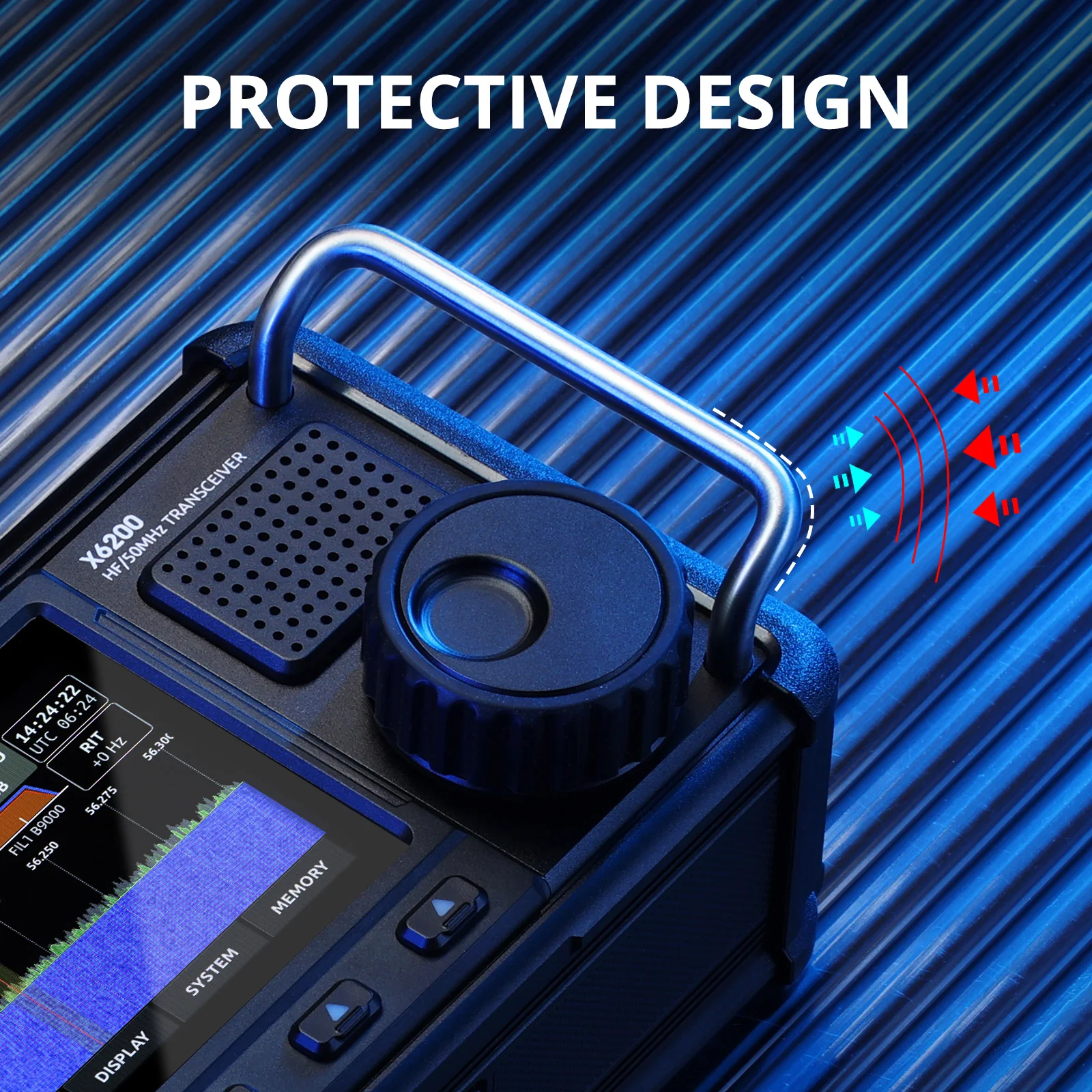

Protective Handles
The two handles offer complete protection for the screen from scratches and the knobs from potential impacts while also facilitating easier mobility.
| # General Specifications | |

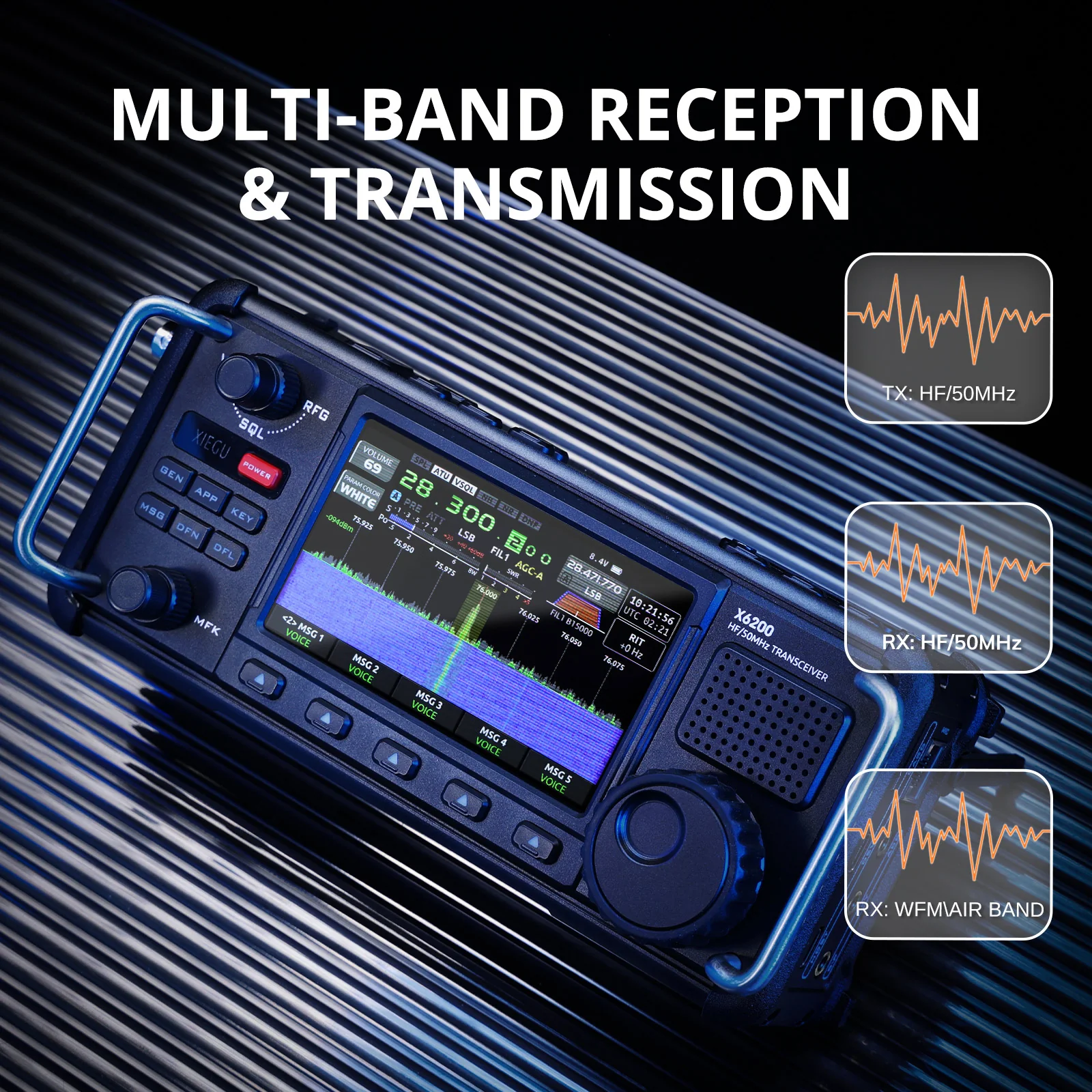

| Frequency receive | 0.5MHz-30MHz 50MHz~54MHz 88~108MHz (FM broadcast) 108~136MHz (Aviation band) |
| Frequency transmit: | 1.8-2.0MHz | 3.5-4.0MHz* 5.3515~5.3665MHz | 7.0-7.3MHz* 10.1-10.15MHz | 14.0-14.35MHz 18.068-18.168MHz | 21.0-21.450MHz 24.89-24.99MHz | 28.0-29.7MHz 50~54MHz* |
| Operating modes: | SSB, CW, FM, RTTY, AM |
| Minimum step: | 1Hz |
| Antenna impedance: | 50Ω |
| Working temperature: | 0°C ~ +50°C |
| External power supply voltage: | DC 9.0V~15.0V (negative electrode grounding) |
| Current consumption: | Standby: 650mA @Max Transmission: 3A @Max |
| Antenna interface type: | BNC |
| Frequency stability: | ±1ppm (20 minutes after start) |
| Overall dimensions: | Approximately 200*89*51mm |
| # Transmitter | |
| Transmission power: | Battery: 5W±1dB @Max External power: 8W ±1dB @13.8VDC |
| Spurious suppression: Carrier suppression: |
Carrier suppression: ≥50dB |
| Microphone impedance: | 200Ω ~10kΩ |
| Antenna tuner tuning impedance range: | 20Ω ~ 175Ω |
| Tuning time: | Antenna tuner initial tuning time: ≤10s Antenna tuner tuning read time:≤0.1s |
| # Receiver | |
| Circuit type: | RF direct sampling |
| Received sensitivity (10dBS/N) (PRE=on, ATT=off, NB=off, NR=off, AGC=on) |
Band | SSB/CW | FM | AM | WFM/AM 0.55 - 1.799MHz | / | / | 10uV | / 1.8~1.999MHZ | 0.2uV | / |10uV | / 2.0~27.999MHz | 0.20uV | / | 2uV | / 28.0~30.0MHz | 0.20uV | 0.2uV | 2uV | / 50.0~54.0MHz | 0.20uV | 0.2uV | 2uV | / 88~108MHz(WFM) | / | / | / | >10uV 108-136MHZ (AM)| / | / | / | >10uV |
| Sideband suppression: | ≥50dB |
| MDS: | -138dBm |
| Audio output: | Power: 0.5W (4Ω, ≤10% THD) Impedance: 4~16Ω |
Note: The specifications and parameters of the product are subject to the actual sales status.
1. The 80-meter or 3.5 MHz band is a band of radio frequencies allocated for amateur radio use, from 3.5 to 4.0 MHz in IARU Region 2 (consisting mostly of North and South America), and generally 3.5 to 3.8 or 3.9 MHz in Regions 1 and 3 (the rest of the world) respectively.
2. The 40-meter or 7-MHz band is an amateur radio frequency band, spanning 7.000-7.300 MHz in ITU Region 2, and 7.000-7.200 MHz in Regions 1 & 3.
3. About the operating mode color

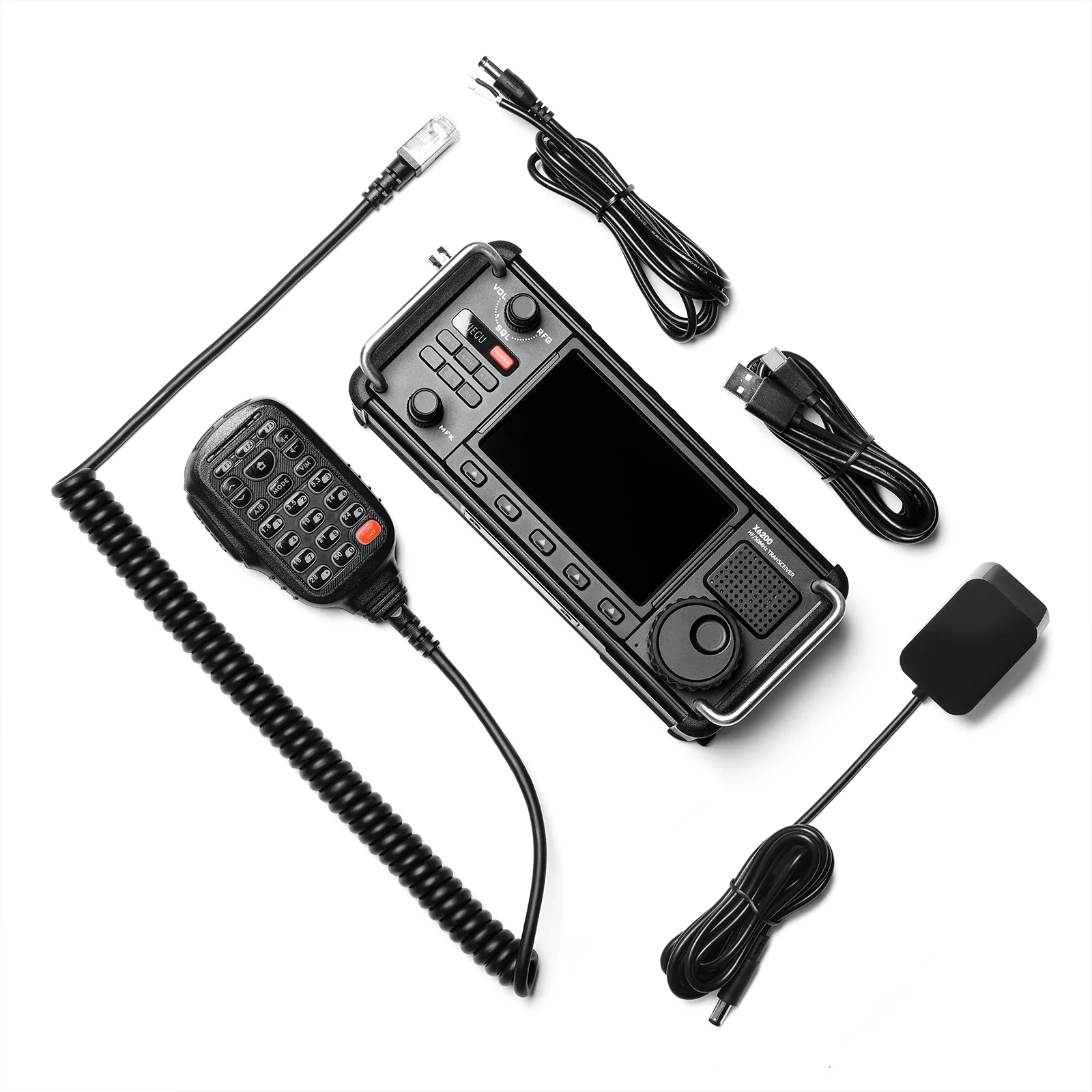

What's in that box?
1 x Xiegu X6200 Transceiver (including battery pack)
1 x Type-C Data Cable
1 x Multi-function Microphone
1 x Power Adapter (for charging the removeable battery)
1 x Power cable (for normal operation using a suitable external power supply)
1 x User Manual
1 x Xiegu WF-01 External Bluetooth Adapter [User Manual]
Recommended Accessories (not included in the package)
1. Xiegu XPA125B 100W Power Amplifier & L4001 Cable
2. Xiegu GNR1 Digital Audio Noise Filter
3. Xiegu VG4 40m/20m/15m/10m 4-band Vertical Antenna
4. Radioddity HF-008 6M-80M Portable Antenna & Radioddity M916 Antenna Base
5. Xiegu GY03 External Stereo Speaker
6. Raddy Multi-function Backpack
7. Radioddity PB3 Carrying Case
8. Xiegu DH100 100W Portable Power Station
9. Xiegu X6200 Spare Battery
Original: $799.00
-65%$799.00
$279.65More Images
