Baofeng UV-5RA [OPEN BOX]

Not brand new, it's OPEN BOX!

Open Box items are products that have damaged packaging or are otherwise not suitable to be sold as new. All items are tested to be working by a member of our team.

Open Box items come with a 6-month warranty instead of the standard 1-year warranty and are not eligible for any warranty extension offered to new products. We will not accept returns of Open Box items due to cosmetic damage or other non-performance-related issues. All sales of Open Box items are final and not eligible for a return or refund.

If for some reason the item is defective on arrival, please contact [email protected] so we can arrange a replacement.

---

　

▸ FCC ID: 2AJGM-UV5R

Functions:
1. Frequency Range: 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX) | 65-108MHz (FM RX Only)
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1 Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Burst Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10. High /Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
　

Specifications:

General
Frequency Range	65-108MHz (FM Receive only) 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX)
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain Dual-Band Antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension（W x H x D）	100 x 52 x 32 mm
Weight	250g （including battery; antenna）
Transmitter
Output power	4W / 1W (Max 5W)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation	＜7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	＜10

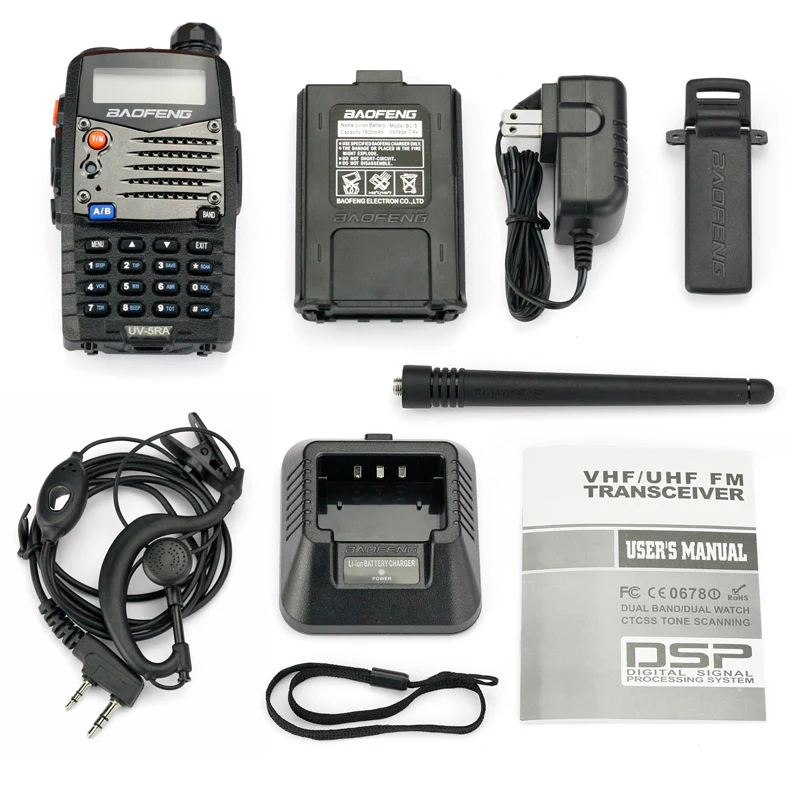

Package:
1 x BaoFeng UV-5RA Two-Way Radio
1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x adapter

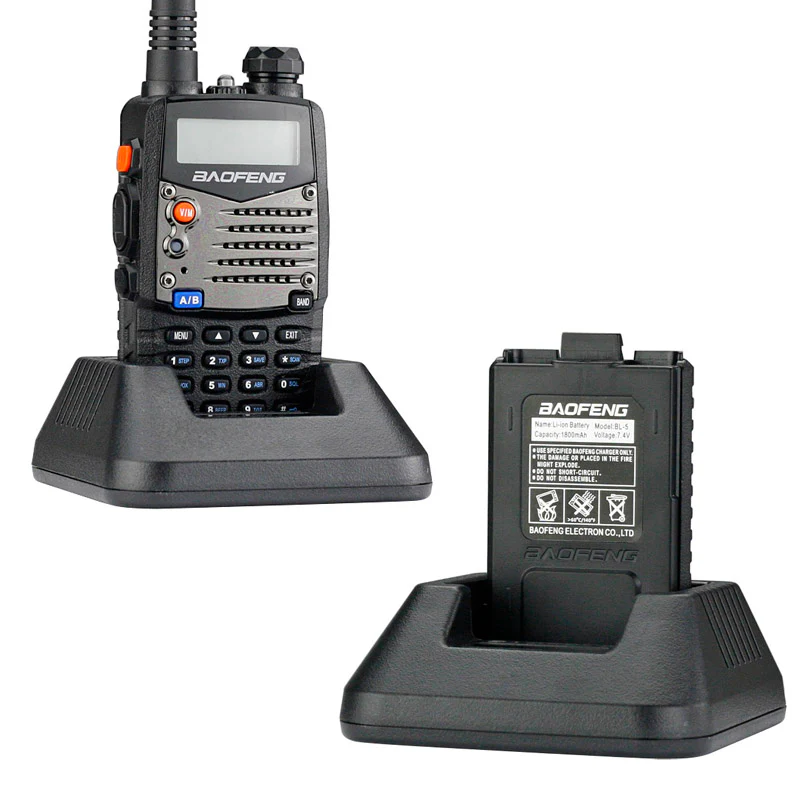

1 x Desktop Charger ( 100V ~ 240V )
