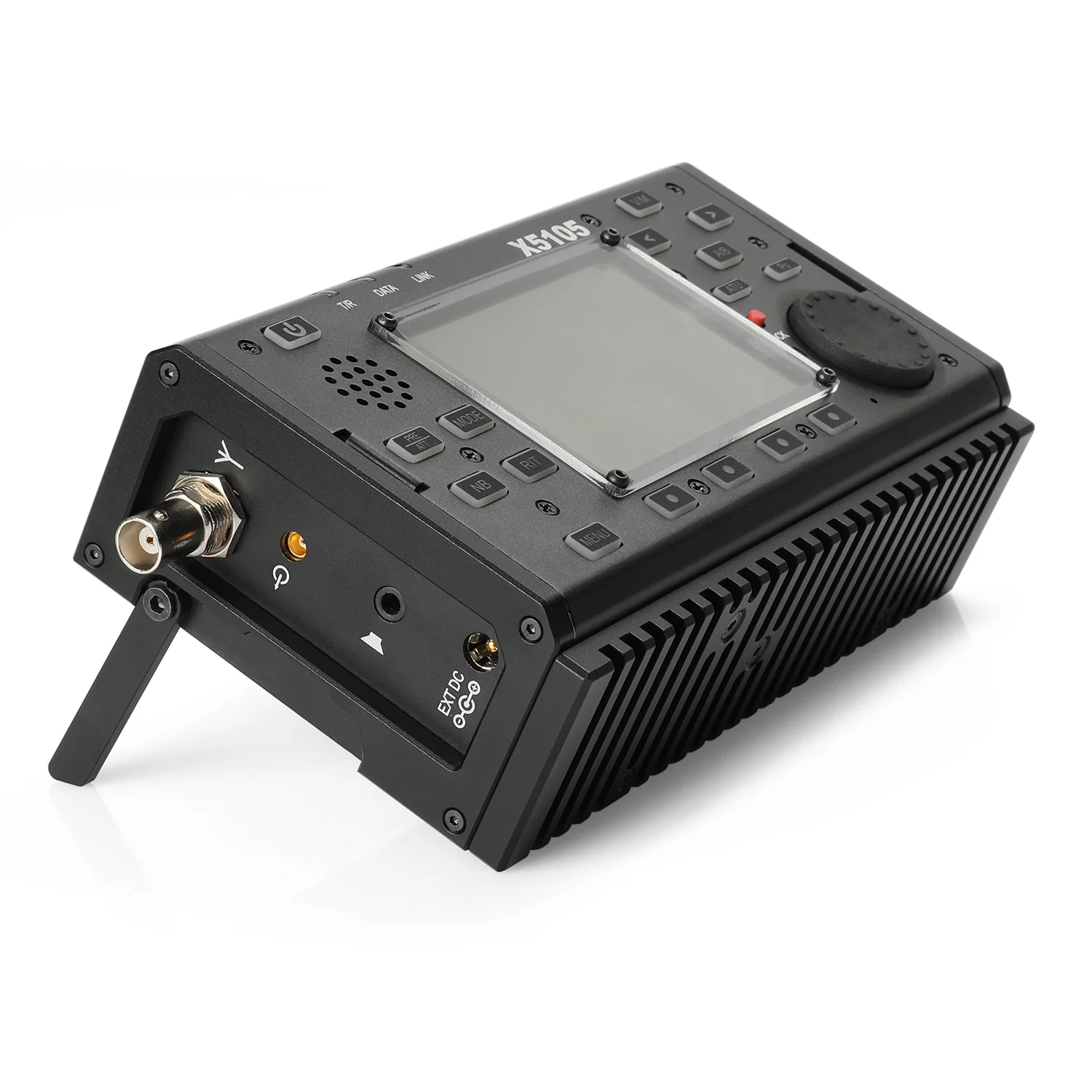

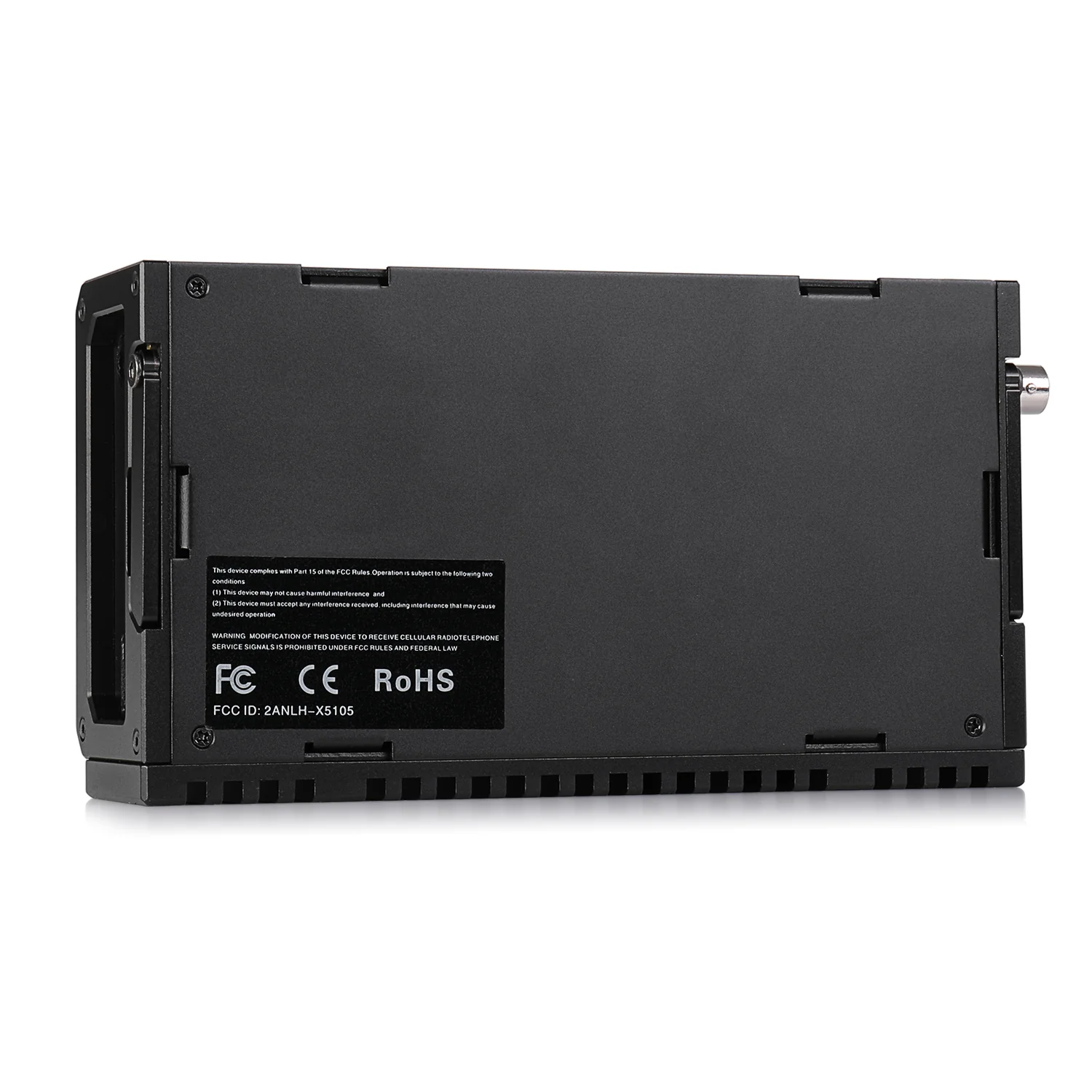

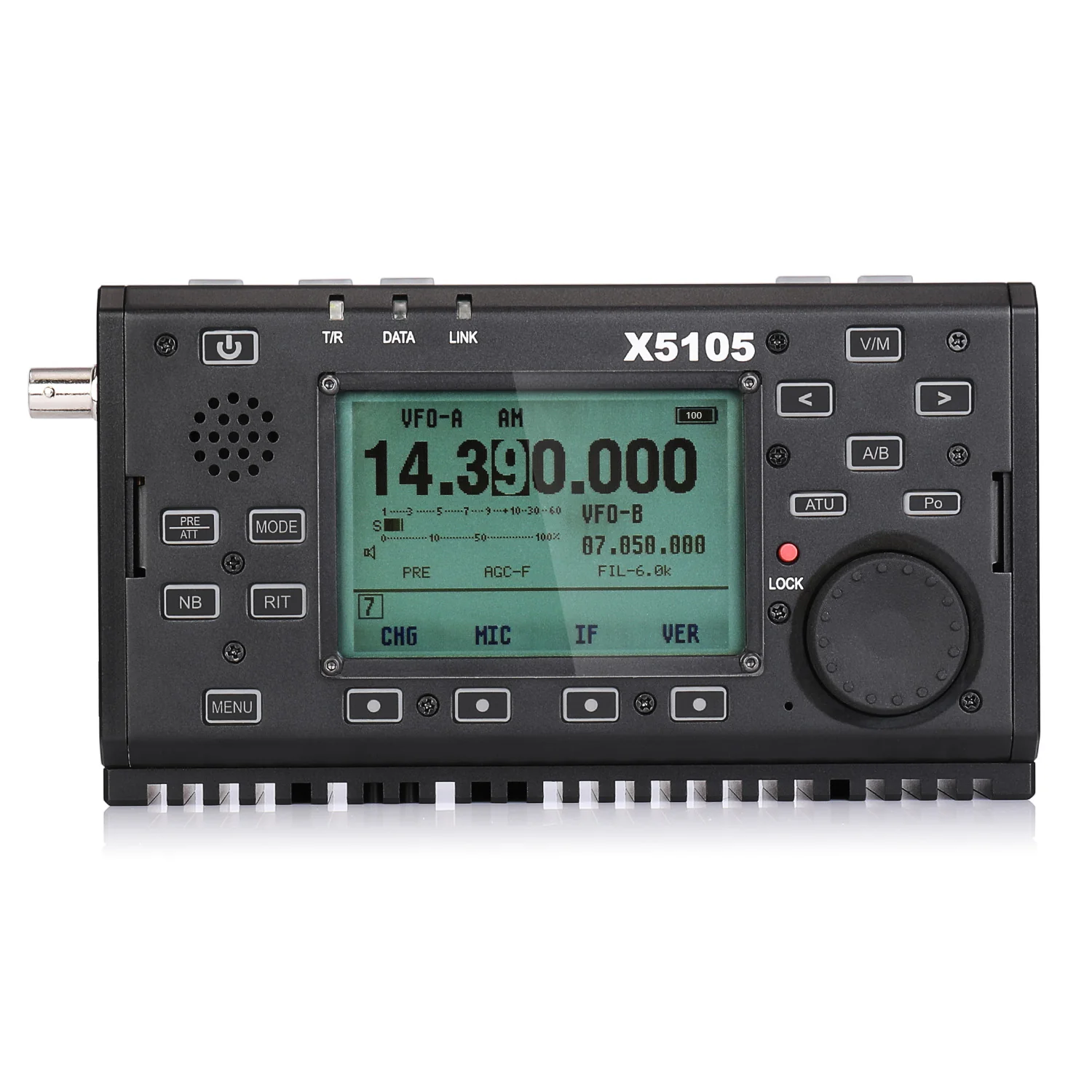

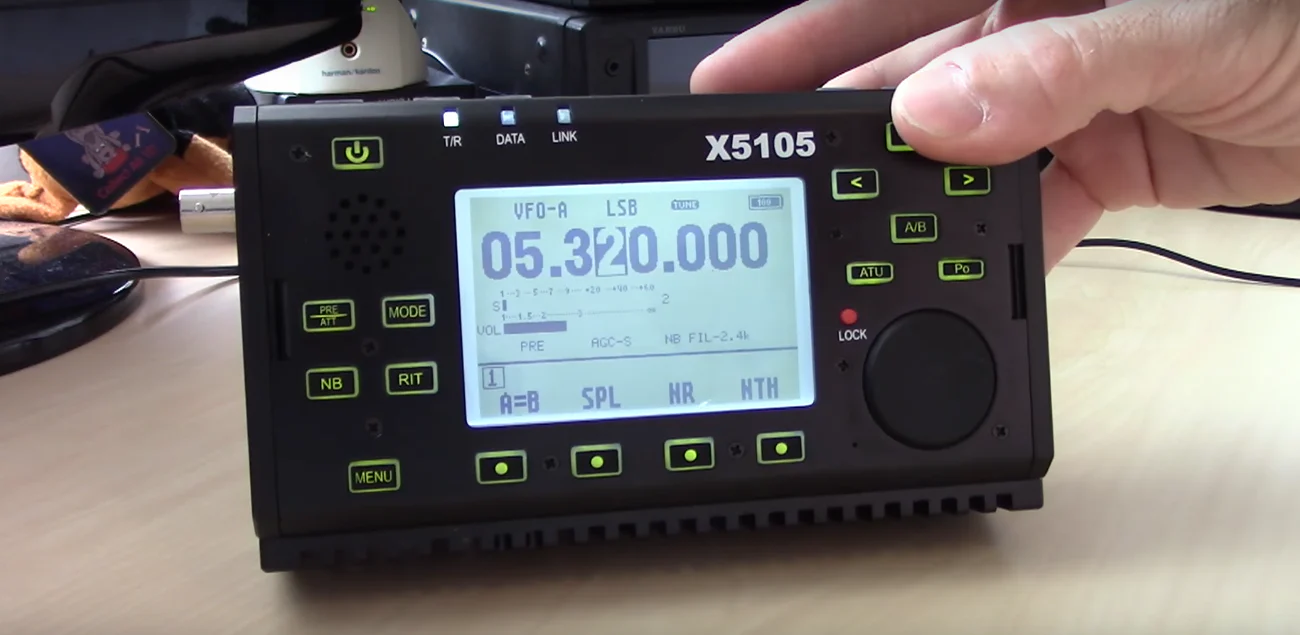

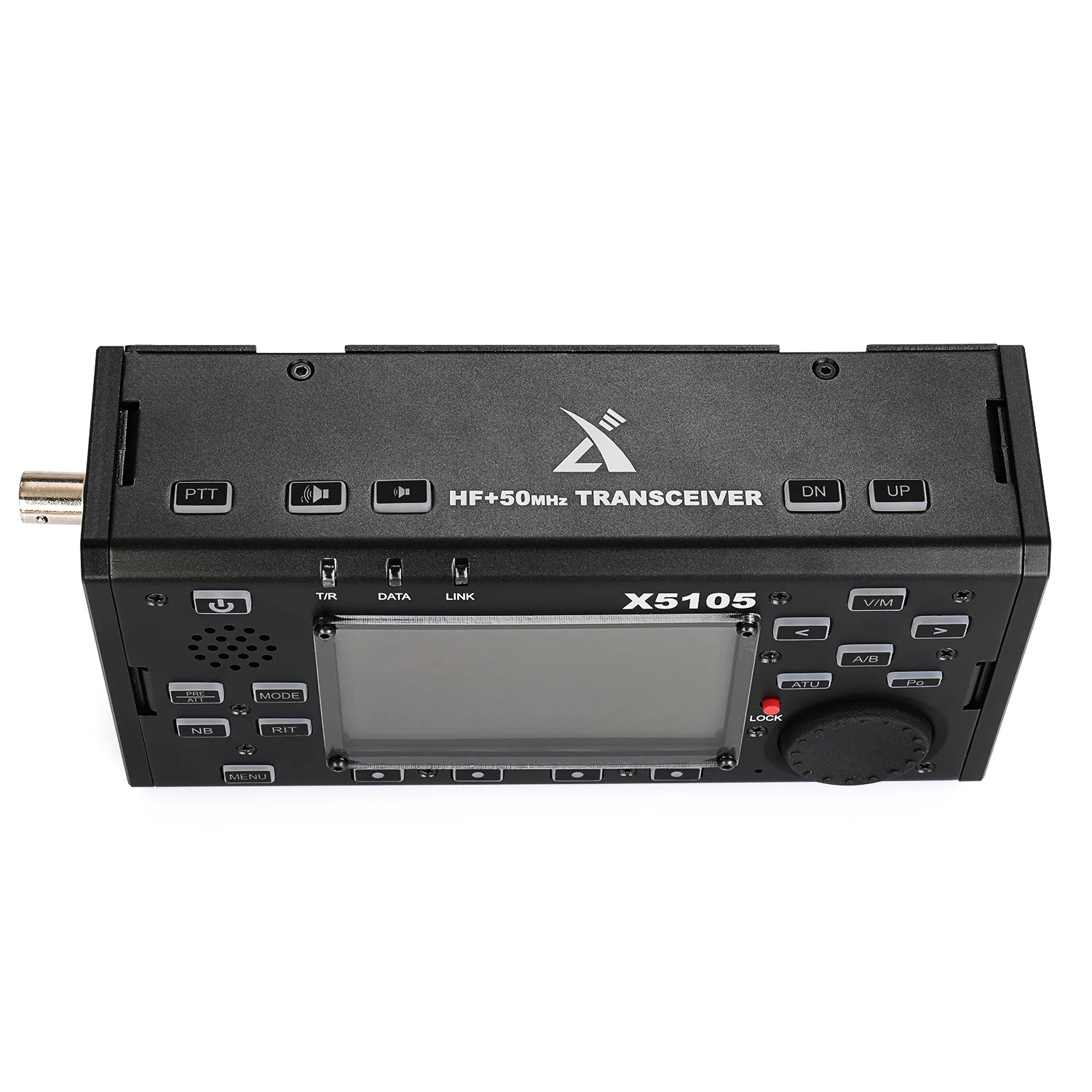

Xiegu X5105 [OPEN BOX]

Features
➤ HF/50MHz Portable Transceiver
➤ SSB/CW/AM/FM, 5W QRP
➤ Built-in Auto Antenna Tuner
➤ Built-in Large Capacity Battery

Highlights
1. Double freq conversion (high / intermediate freq) + ADSP baseband
2. MDS; Sensitivity: -135dBm
3. Dynamic Receive Range: 105dB
4. 2kHz Blocking gain: 65 dB
5. >0.25uV @ 12dB Sinad
7. CW Preset Message、CW Auto Decoding
8. PSK31\RTTY Auto Decoding
9. NR/NOTCH/VOX/COMP
10. Built-in Scan Receiver
11. Built-in SWR Scanner
12. Better Protection

FIRMWARE V3.0 Download: CLICK HERE

1. Easier operation with new VOX function.
2. Fixing CW issue.
3. Properly optimized hardware greatly reduces the problem rate.

What is the difference between the standard version and the "outdoor" version ?

Not brand new, it's OPEN BOX!

Open Box items are products that have damaged packaging or are otherwise not suitable to be sold as new. All items are tested to be working by a member of our team.

Open Box items come with a 6-month warranty instead of the standard 1-year warranty, and are not eligible for any warranty extension offered to new products. We will not accept returns of Open Box items due to cosmetic damage or other non-performance-related issues. All sales of Open Box items are final and not eligible for a return or refund.

If for some reason the item is defective on arrival, please contact [email protected] so we can arrange a replacement.

---

　

　

---

Basic Specifications
Frequency range:
Receive: 500kHz-30MHz 50MHz-54MHz
Transmitting: 160 meters -6 meters (Amateur band only)
Operating mode: A1A(CW), A3E(AM)，J3E(USB/LSB), F3E(FM)
minimum frequency stepping: 1Hz
Antenna impedance: 50Ω
Operating temperature range: -10℃ ~ +60℃
Frequency stability: after turn on the radio 1-60 minutes is ± 2ppm, @25℃: 1ppm/hour
supply voltage: normal: 13.8VDC + 15%, negative grounding
Operating voltage: 9.0-15.0VDC, negative grounding
Current consumption: receive: 660mA@ Max transmit: 2.5A@ Max
Battery capacity: 3800mAh @12V
Dimensions: 160*100*46mm / 6.3*3.9*1.8in [does not include protrusion]

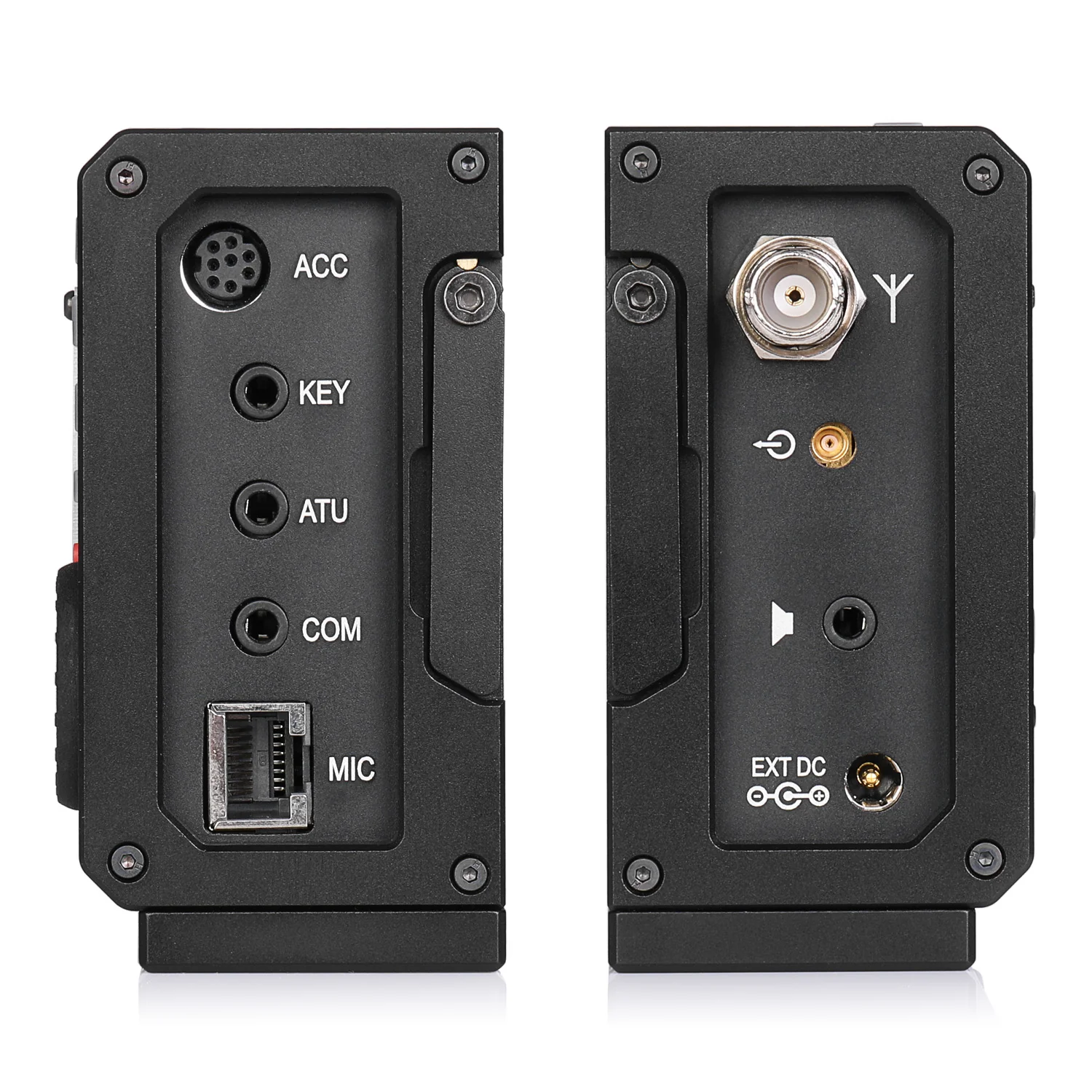

Antenna Socket: BNC connector
Weight: 0.94Kg [host only]

Receiver Parameters:
Circuit form: double-conversion superheterodyne with audio DSP
IF frequency: 1 IF: 70.455MHz, 2 IF: 10.695MHz, 3 IF 455kHz (FM)
Image rejection ratio: 70dB
IF suppression: 60 dB
Audio output: 0.6W (8Ω, ≤10% THD)
Audio output impedance: 4-16Ω
Selectivity:
SSB-6dB: 2.4kHz/-60dB: 4.6kHz
AM-6dB: 6.0kHz/-60dB: 25.0kHz
FM-6dB: 12.0kHz/-60dB: 25.0kHz
　

Transmitter Parameters
Transmitter power, 5W(SSB/CW/FM), 1.5W(AM carrier), @13.8VDC
Modulation mode: SSB balanced modulation/AM low level amplitude modulation/FM Variable reactance frequency modulation
FM Maximum frequency swing: ±5kHz
spur reduction: -45dB
Carrier suppression: ＞40dB
Sideband spurious: ＞50dB
SSB frequency response: 400Hz-2800Hz（-6dB）
Microphone impedance: 200-10k(conventional 600Ω)

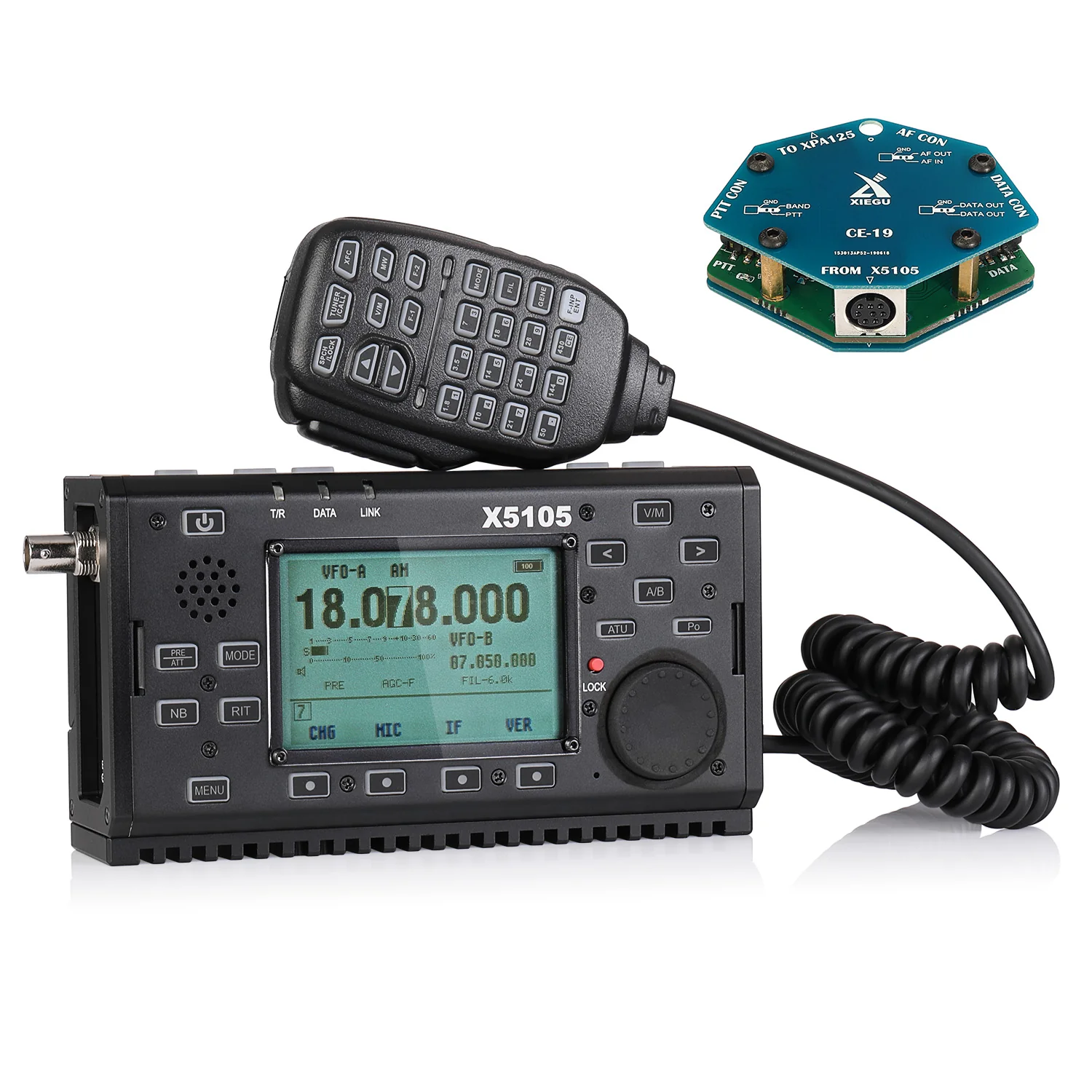

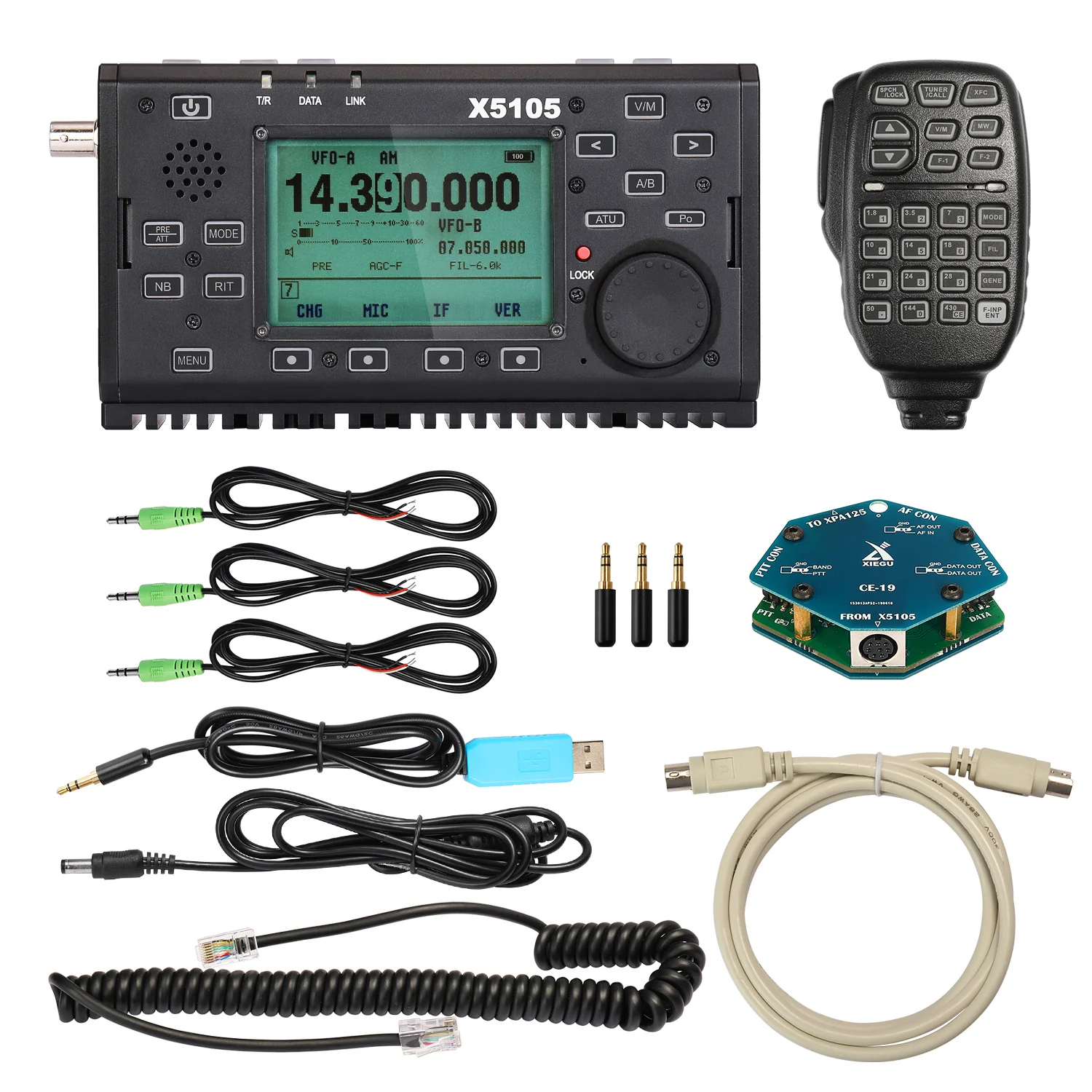

Package Content:
1 x X5105 Transceiver
1 x Power Cable

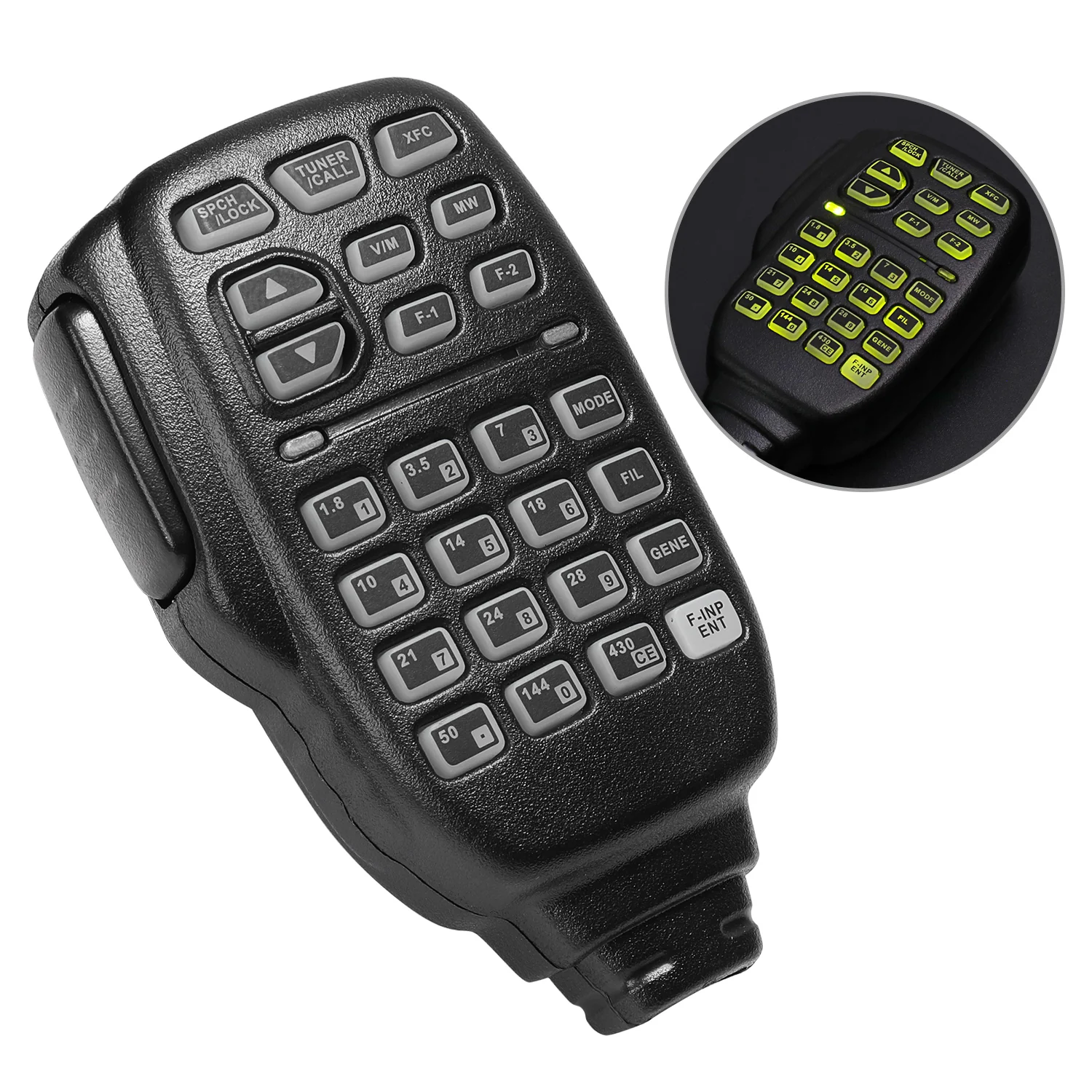

1 x Speaker Mic
1 x USB Cable
1 x User Manual

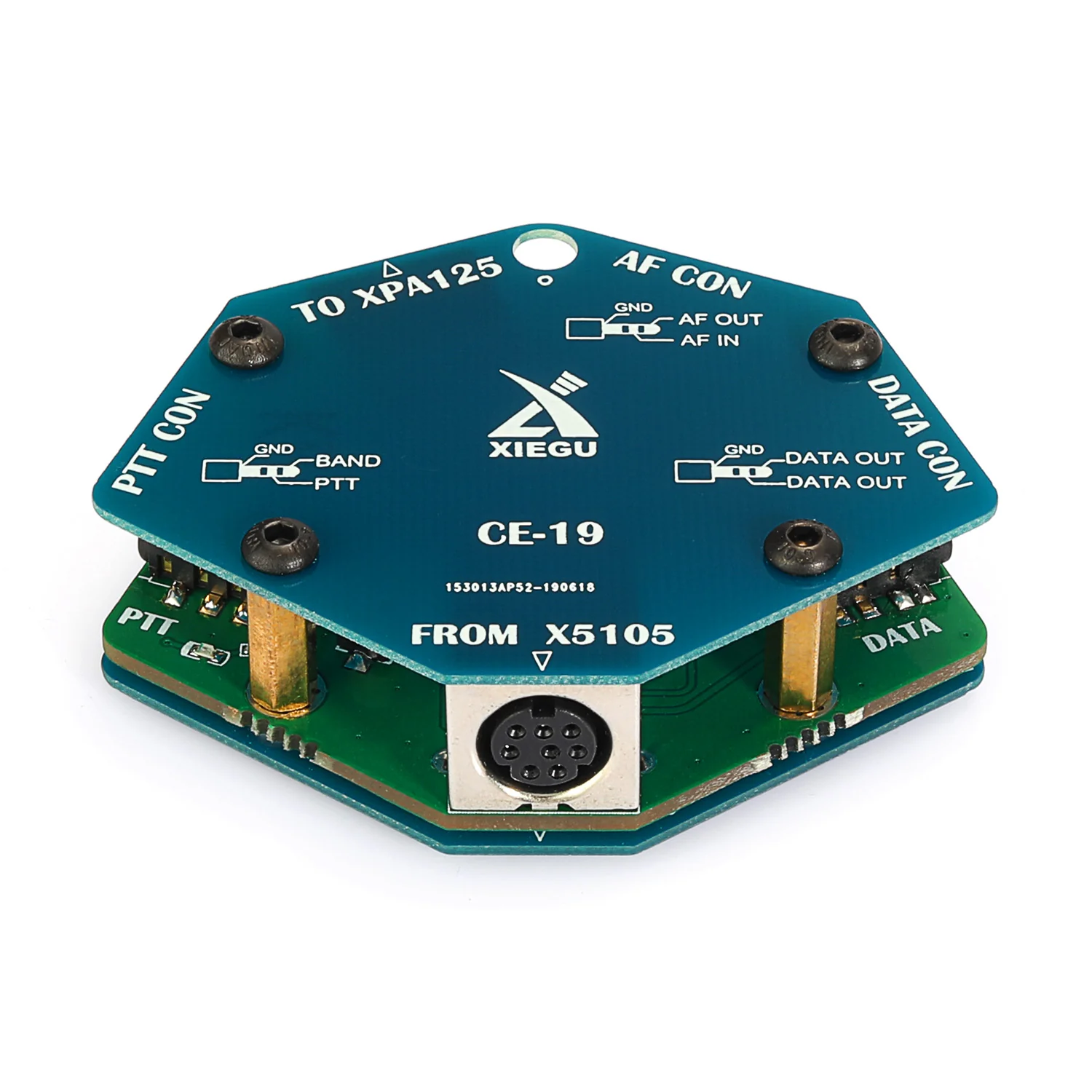

1 x CE-19

1.If you would like the machine to work(transmitt or receive) when charging,please avoid a continuous use of more than 1 hour.
2.We suggest fans or air conditioner in car to work with the machine to ensure a better heat dissipation.
