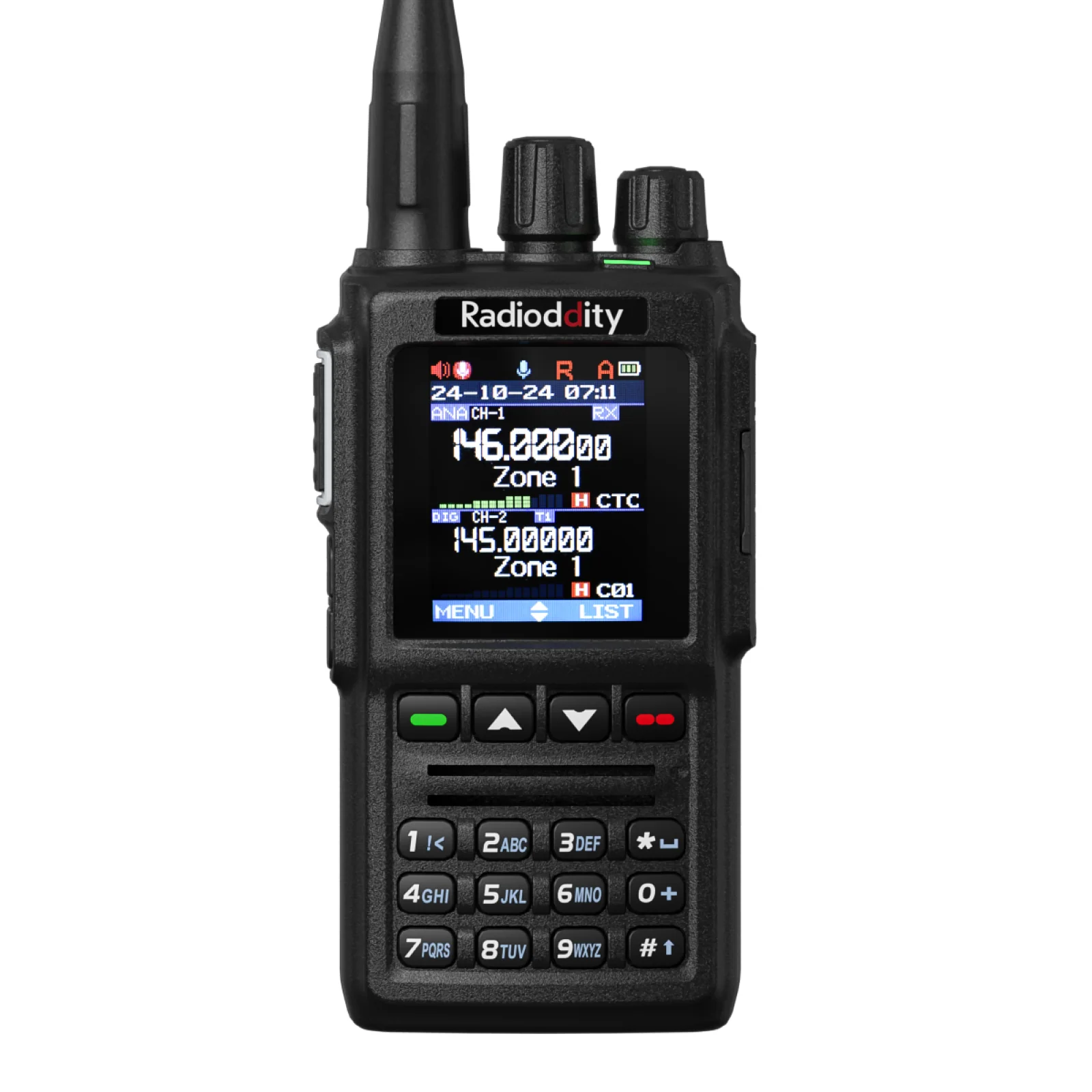

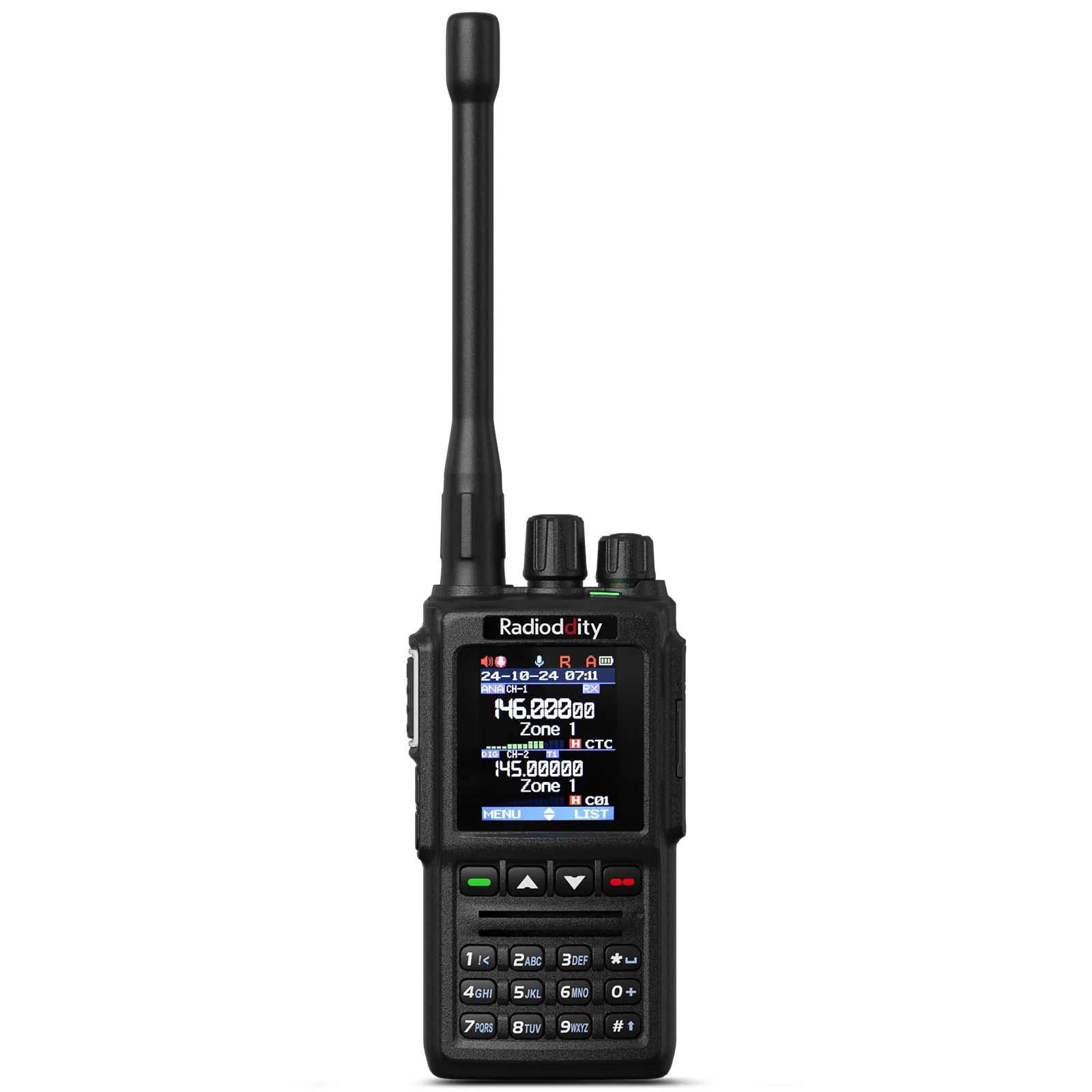

Radioddity GD-168 DMR | 5W | Dual Band Dual Mode | Satellite Communicate | Noise Reduction | 500K Contacts | Dual Battery & Antennas | Type-C Charge & Program

Stay connected with the Radioddity GD-168 DMR radio, boasting a substantial 500K contacts and 10K talk groups capacity for large-scale communication. The 1.77" color TFT screen offers crystal-clear visibility, while modern conveniences like Type-C charging and programming ensure easy use. Equipped with advanced noise reduction and satellite communication capabilities, the GD-168 delivers reliable and high-performance communication in diverse environments. Whether for professionals or enthusiasts, it’s built to meet the demands of dynamic communication needs.

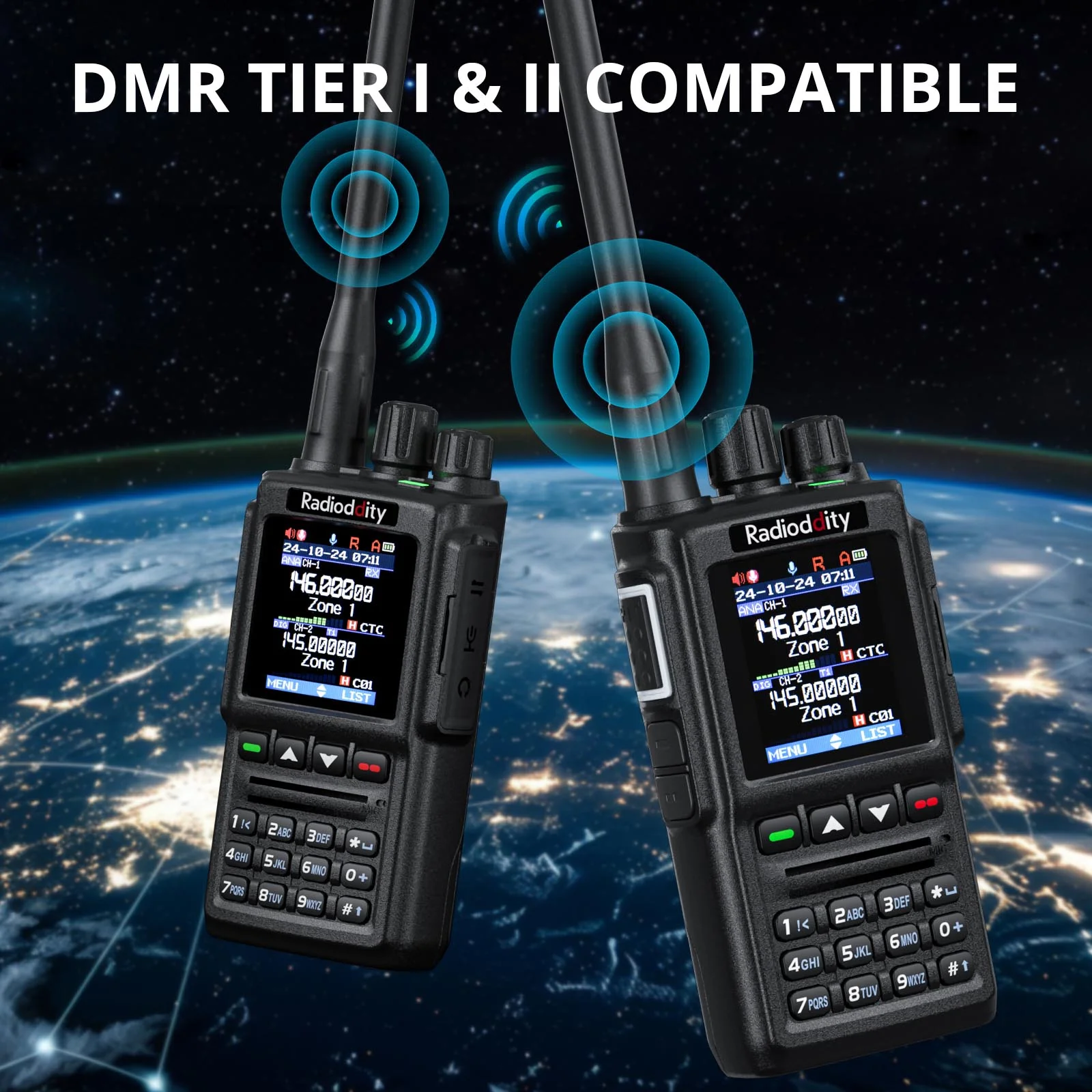

DMR Tier I & II Compatible

Ensures compatibility with various digital mobile radio systems, enabling effective communication across different networks and maintaining connectivity in diverse environments.

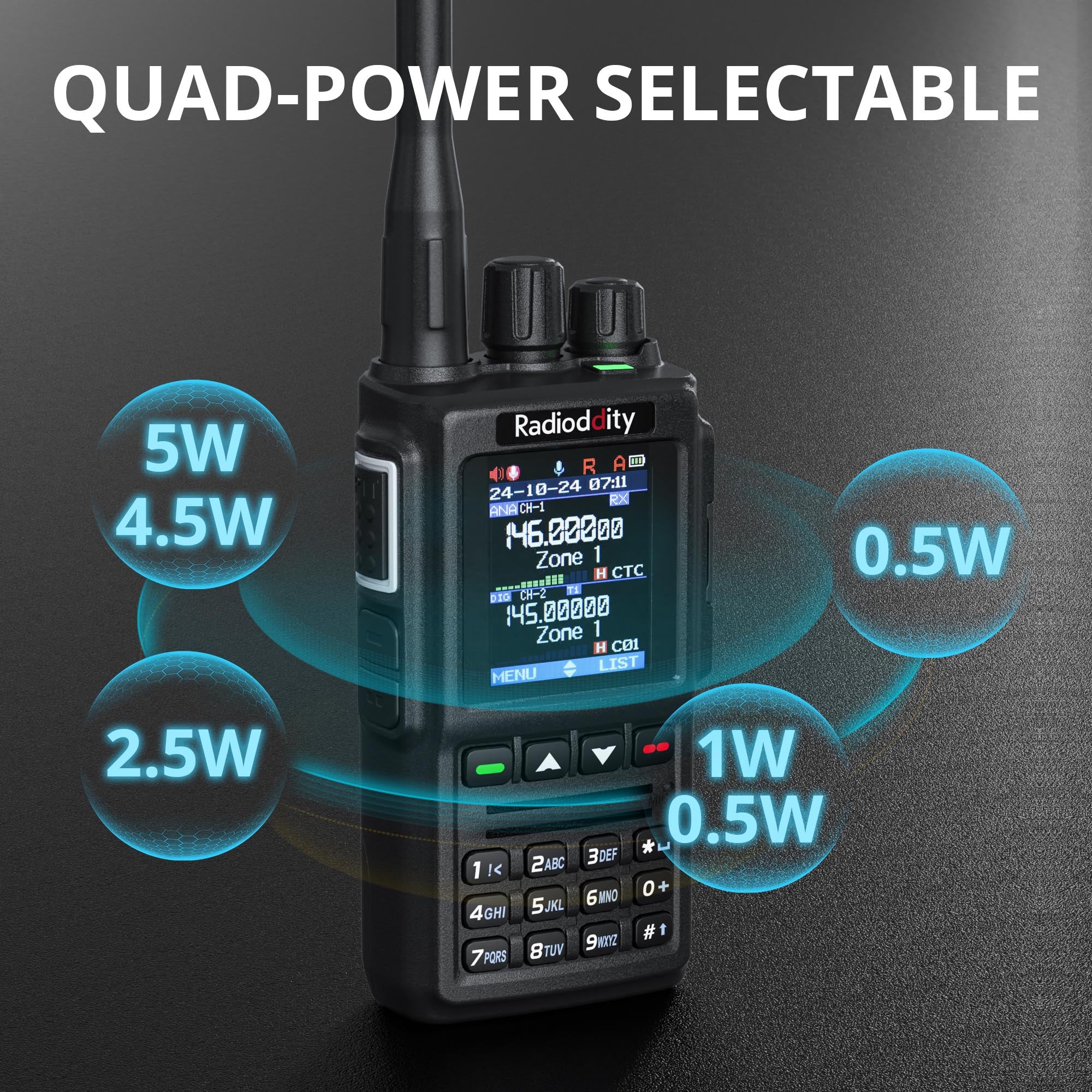

Quad-power Selectable

Easily switch between four power levels—5W/4.5W, 2.5W, 1W/0.5W, and 0.5W—to optimize battery life and transmission range, offering flexibility for various environments.

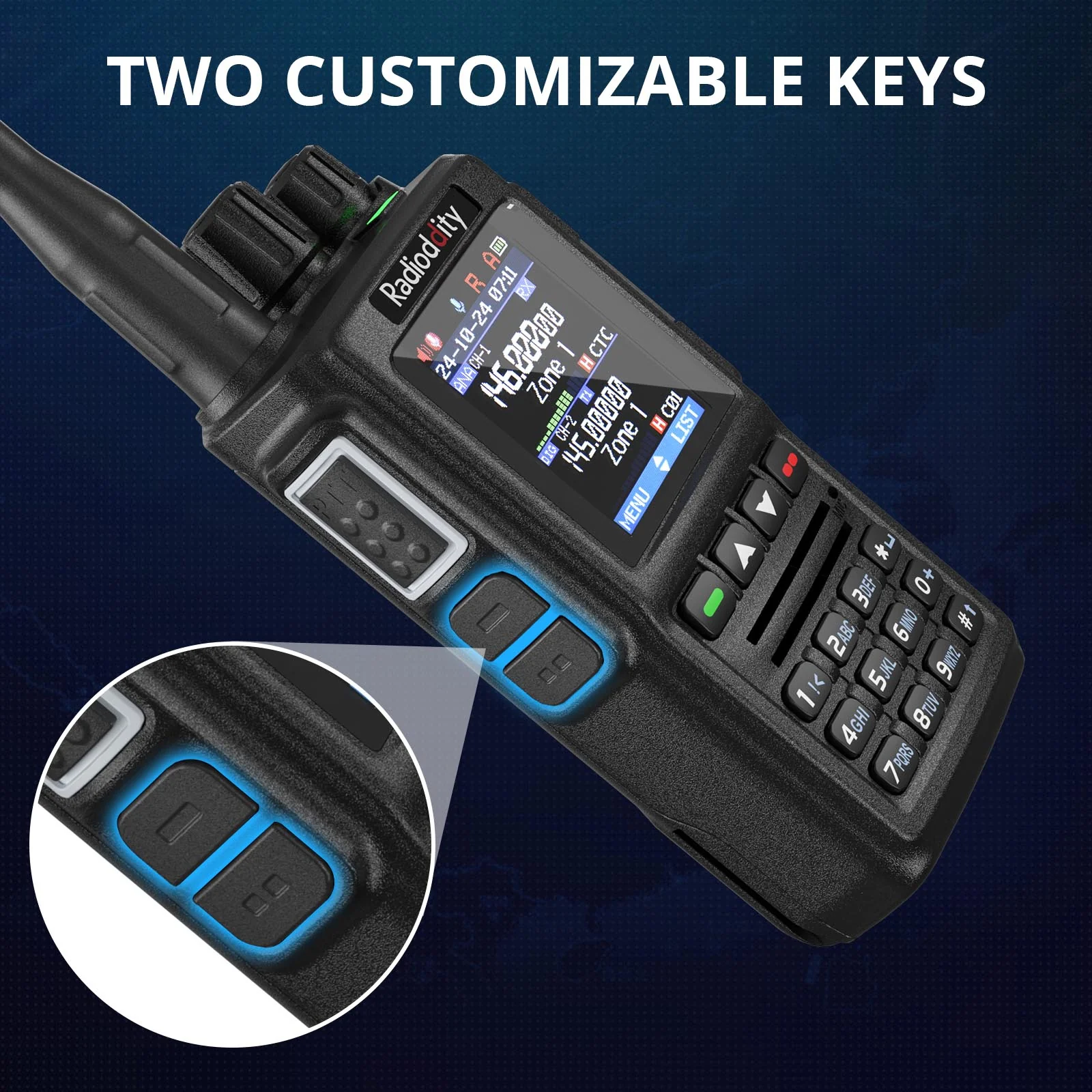

Two Customizable Keys

Personalize your device with two programmable keys that can be programmed through the radio menu or CPS, providing quick access to frequently used functions for seamless operation.

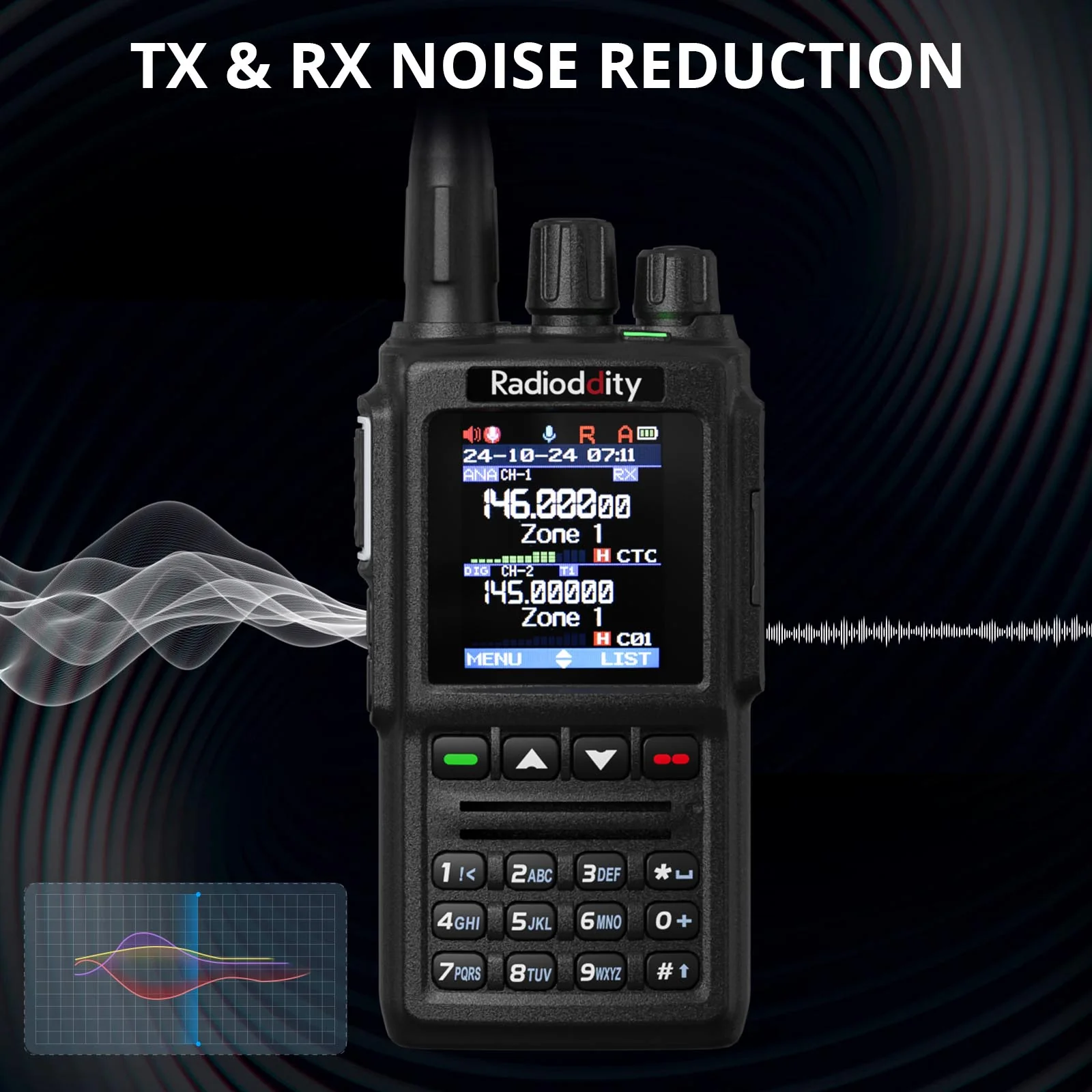

TX & RX Background Noise Reduction

Effectively minimizes background noise for crystal-clear transmissions in noisy environments, making it a reliable choice for high-quality communication.

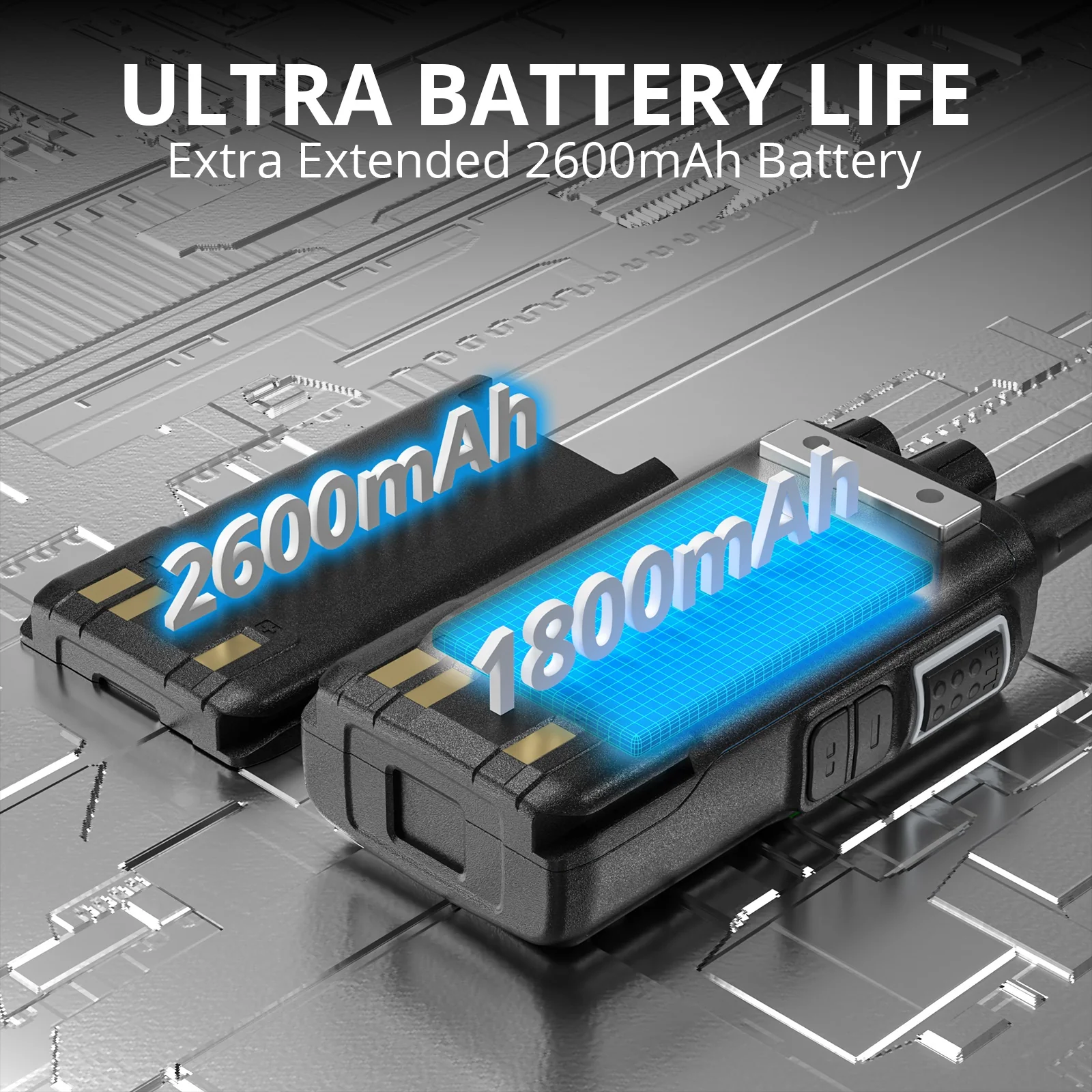

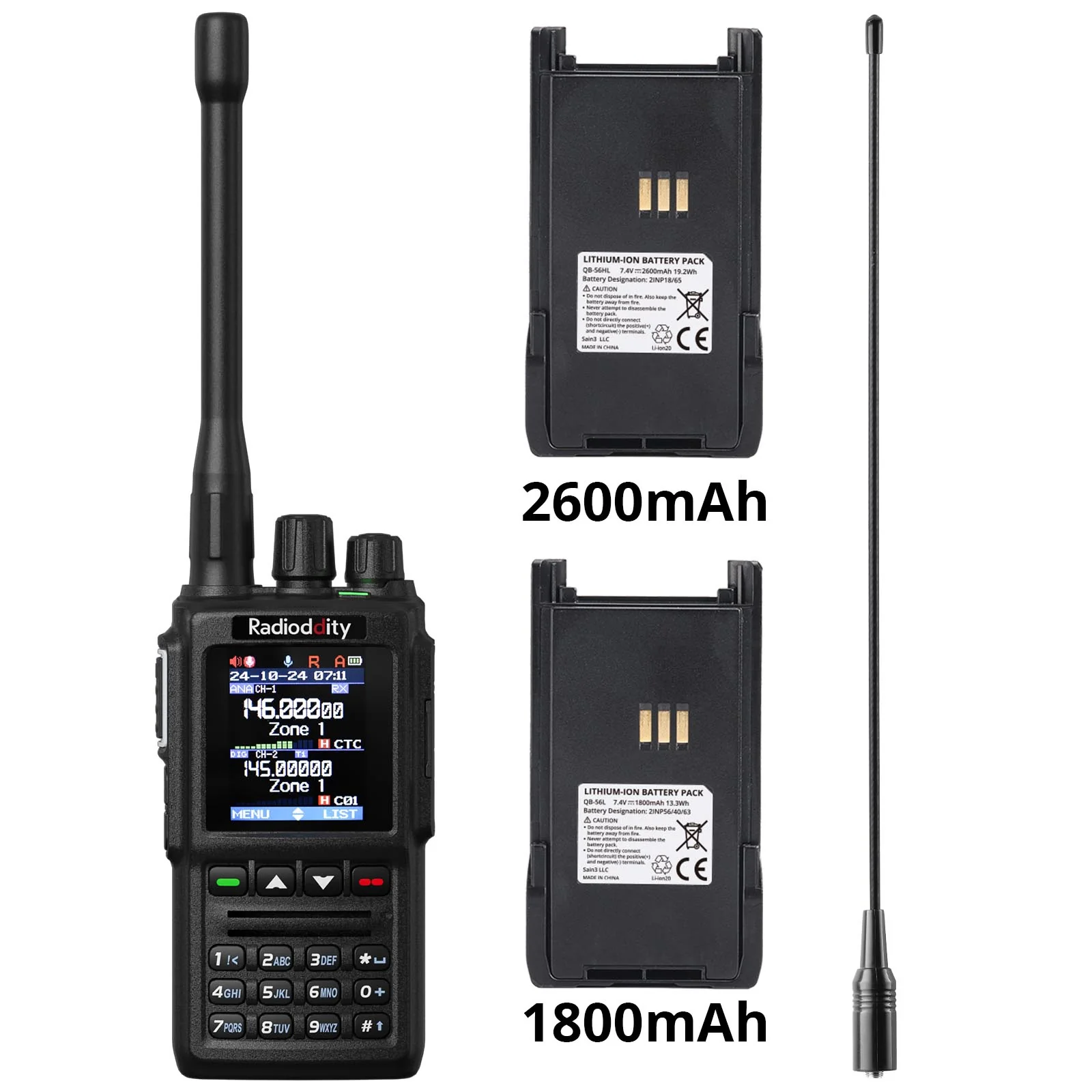

Equipped Dual Batteries

The radio is equipped with a robust 1800mAh battery, complemented by an additional high-capacity 2600mAh extended battery, ensuring prolonged operation without interruptions.

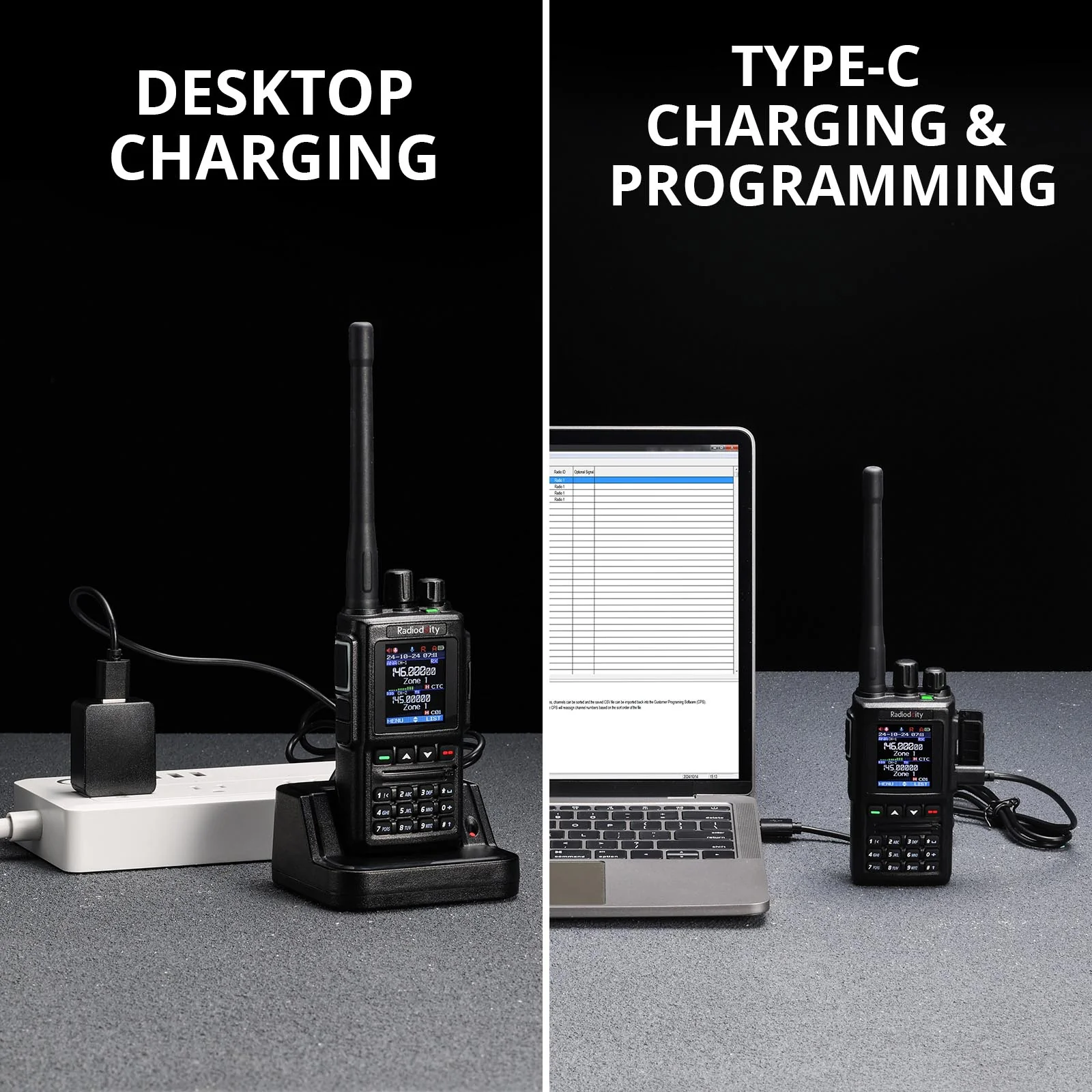

Type-C Charging & Programming

Efficient charging and programming through a Type-C cable, letting you power up and program your device easily, ensuring your device is always ready for use.

Functions:
● Dual Band Dual Mode
● DMR Tier I & II Compatible
● Quad-power Selectable: 5W/4.5W | 2.5W | 1W/0.5W | 0.5W
● Max 5W Output
● Dual Battery & Dual Antenna Equipped
● Two Customizable Keys

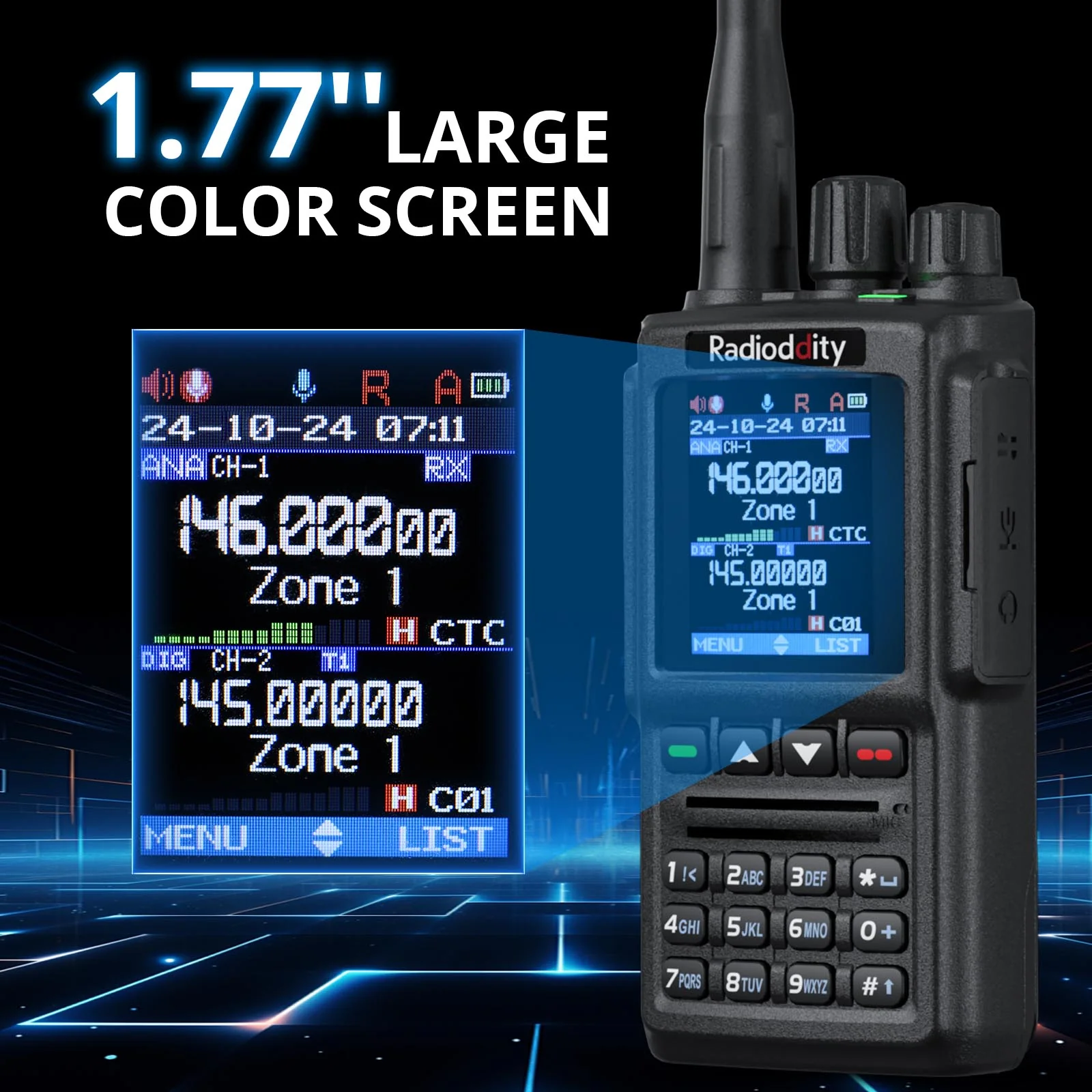

● 1.77" Color TFT Screen
● 4000 Channels

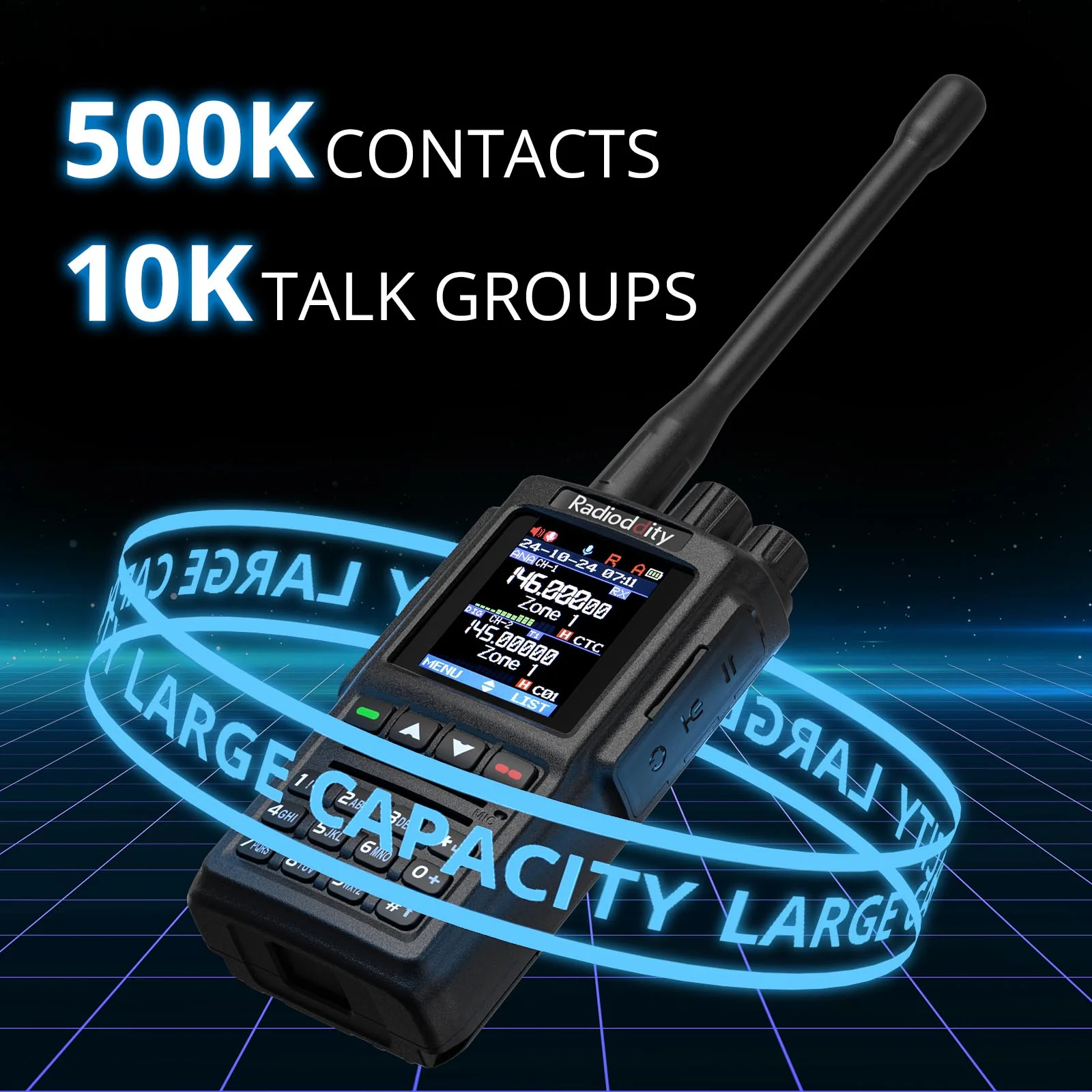

● 500K Contacts & 10K Talk Groups
● Type-C Charging & Programming
● Satellite Communication
● APRS Function (Digital & Analog APRS TX | Digital APRS RX)
● Roaming Function
● Talker Alias Function
● Dual Mode Recording
● AES256 & ARC4 Encryption
● FM Band Reception
● Auto-sense Digital & Analog Reception

Specifications：
Frequency Range: 136-174MHz, 400-480MHz
Channel Capacity: 4000 channels
Channel Spacing: 25KHz (Wide Band) 12.5KHz (Narrow Band)
Phase-locked Step: 5KHz, 6.25KHz
Operating Voltage: 7.4V DC ±20%
Battery Capacity: 1800mAh+2600mAh
Frequency Stability: ±1.5ppm
Operating Temperature: -20℃~ +55℃
Size: 103.5×53.5×35.5mm (with battery pack)
Weight 220g: (with battery pack, antenna)

Receiving Part
Sensitivity (12dB SINAD): ≤0.25μV (Wide Band); ≤0.35μV (Narrow Band)
Digital Sensitivity: 0.3uV/-117.4dBm (BER 5%); 0.7uV/-110dBm (BER 1%)
Adjacent Channel Selectivity: ≥65dB (Wide Band) ; ≥60dB (Narrow Band)
Spurious Emission: ≤-57dB
Spurious Rejection: ≥65dB (Wide Band); ≥60dB (Narrow Band)
Blocking: 84db
Hum & Noise: ≥45dB (Wide Band); ≥40dB (Narrow Band)
Audio Distortion: ≤5%
Audio Power Output: 1000mW/16Ω

Transmitting Part
Power Output: VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
Modulation: ±5.0KHz@25KHz (Wide Band); ±[email protected] (Narrow Band)
Adjacent Channel Power: ≥70dB (Wide Band); ≥60dB (Narrow Band)
Hum & Noise: ≥40dB (Wide Band); ≥36dB (Narrow Band)
Spurious Emission: ≤-36dB (Wide Band); ≤-36dB (Narrow Band)
4FSK Digital Modulation: 12.5KHz(data)7K60FXD, 12.5KHz(data+voice)7K60FXE
Audio Distortion: ≤5%
Error rate: ≤3%

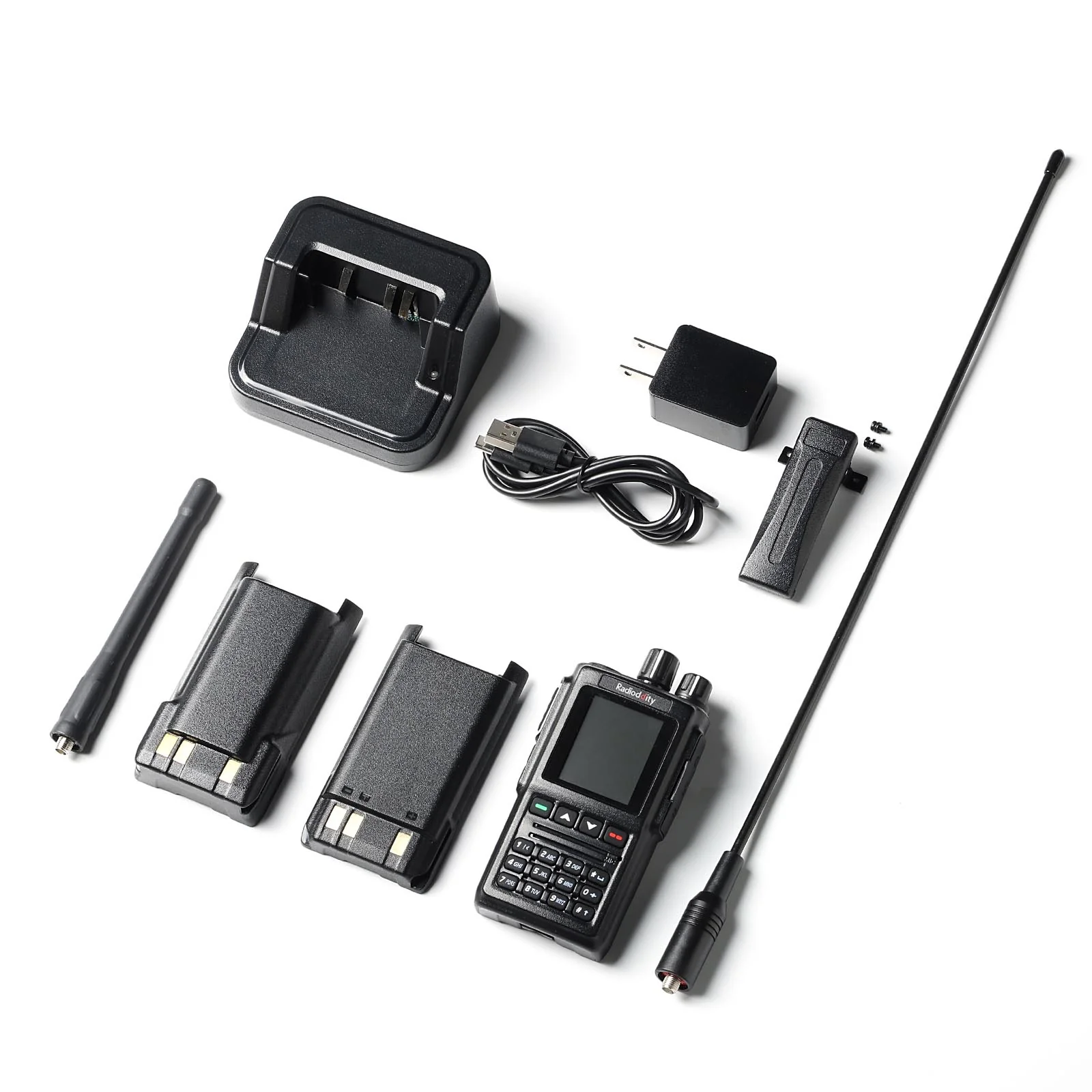

What’s in the box?
1 x GD-168 DMR Radio
1 x 1800mAh Battery
1 x 2600mAh Battery
1 x Standard Antenna
1 x 15’’ Long Antenna
1 x Desktop Charger Base
1 x Type-C Cable (for programming & charging)
1 x Adaptor
1 x Belt Clip
1 x User Manual

GD-168

GD-88

GD-AT10G

DM-1701

https://www.radioddity.com/products/radioddity-gd-168

https://www.radioddity.com/products/radioddity-gd-88

https://www.radioddity.com/products/radioddity-gd-at10G

https://www.radioddity.com/products/baofeng-dm-1701

Frequency Range

Output Power

Channel

DMR Contacts

GPS

Analog APRS TX/RX

Digital APRS TX/RX

Battery Capacity

Satellite Communicate

AES256 Encryption

ARC4 Encryption

SMS APRS Message RX

Type-C Charging/Programming

136-174MHz&400-480MHz@@5W@@4000@@500000@@ @@Analog APRS TX@@✔@@1800mAh & 2500mAh@@✔@@✔@@✔@@✔@@✔

136-174MHz&400-480MHz@@7W@@4000@@300000@@✔@@✔@@✔@@3000mAh@@ @@✔@@✔@@✔@@

400-480MHz@@10W@@4000@@200000@@✔@@Analog APRS RX@@ @@3100mAh@@ @@✔@@ @@ @@

136-174MHz&400-480MHz@@5W@@3000@@120000@@ @@ @@ @@2200mAh@@ @@✔@@ @@ @@
