Xiegu X108G OUTDOOR VERSION [DISCONTINUED]

Description

X108G outdoor version is an X108 upgraded version. It is a single-conversion HF transceiver. In particular to optimize the receive channel , it has a lower local noise and higher signal to noise ratio, up 0.25uV & 12dB. The machine has a large dynamic range AGC control, so X108G when receiving various signals appear at ease; in addition, also has S meter, power meter standing, NB capabilities, to meet the daily needs of the operator. RF transmit channels using MOS pipe imports, the machine APC circuit to ensure the machine is kept constant RF output power level in each frequency band, but also according to actual needs, adjust the output power, and with a high VSWR protection


Feature

1.    Low noise, single-conversion super heterodyne receiver.
2.    Double-balanced diode mixers provide excellent dynamic range
3.    Receiving sensitivity: 0.25uV (preamplifier open,> 1.8MHz band).
4.    Narrow double-tuned band-pass filter covering the realization of all amateur bands (WARC bands).
5.    Built NC APC circuit, the transmission power constant, high control accuracy.
6.    Standard 0.5ppm TCXO circuit of high-quality clock source.
7.    Narrowband standard 500Hz CW filter.
8.    Machine design parameters


Basic parameters

Frequency Range: Emissions: All HAM bands
Work mode: SSB (J3E); CW (A1A); AM (A3E)
The minimum frequency step: 1Hz
Antenna Impedance: 50Ω
Operating temperature range: -10 ℃ ~ + 60 ℃
Frequency stability: ± 0.5ppm @ boot 5 minutes, -10 ℃ ~ + 60 ℃
Operating voltage: 12 ~ 14.5V DC
Current parameters: reception 600mAMax; Emission 7.5AMax
Machine size: 120 * 45 * 180 (mm) [not including knobs, handles, and other prominent]
Transmitter parameters
Transmit power: 20W (@ 13.8V)
Mode: SSB balanced modulator
           AM modulated low
Spurious rejection: ≥40dBc
Carrier suppression: ≥45dBc
Selective: SSB 2.4kHz (-6dB)
                         CW 500Hz (-6dB)
Receiver parameters
IF frequency: 10.7MHz
Receiving sensitivity: 0.5uV (PRE ON, ≤2.0MHz)
                                0.3uV (PRE ON,> 2.0MHz)

Reception ban:

1.8 ~ 2.0MHz
3.5 ~ 4.0MHz
5.0 ~ 5.5MHz
7.0 ~ 7.3MHz
10.0 ~ 10.2MHz
14.0 ~ 14.5MHz
18.0 ~ 18.2MHz
21.0 ~ 21.6MHz
24.8 ~ 25.0MHz
28.0 ~ 28.8MHz
Dynamic range: better than 90dB
RIT frequency tuning range: ± 1kHz
Audio output: 0.5W@8 ohm

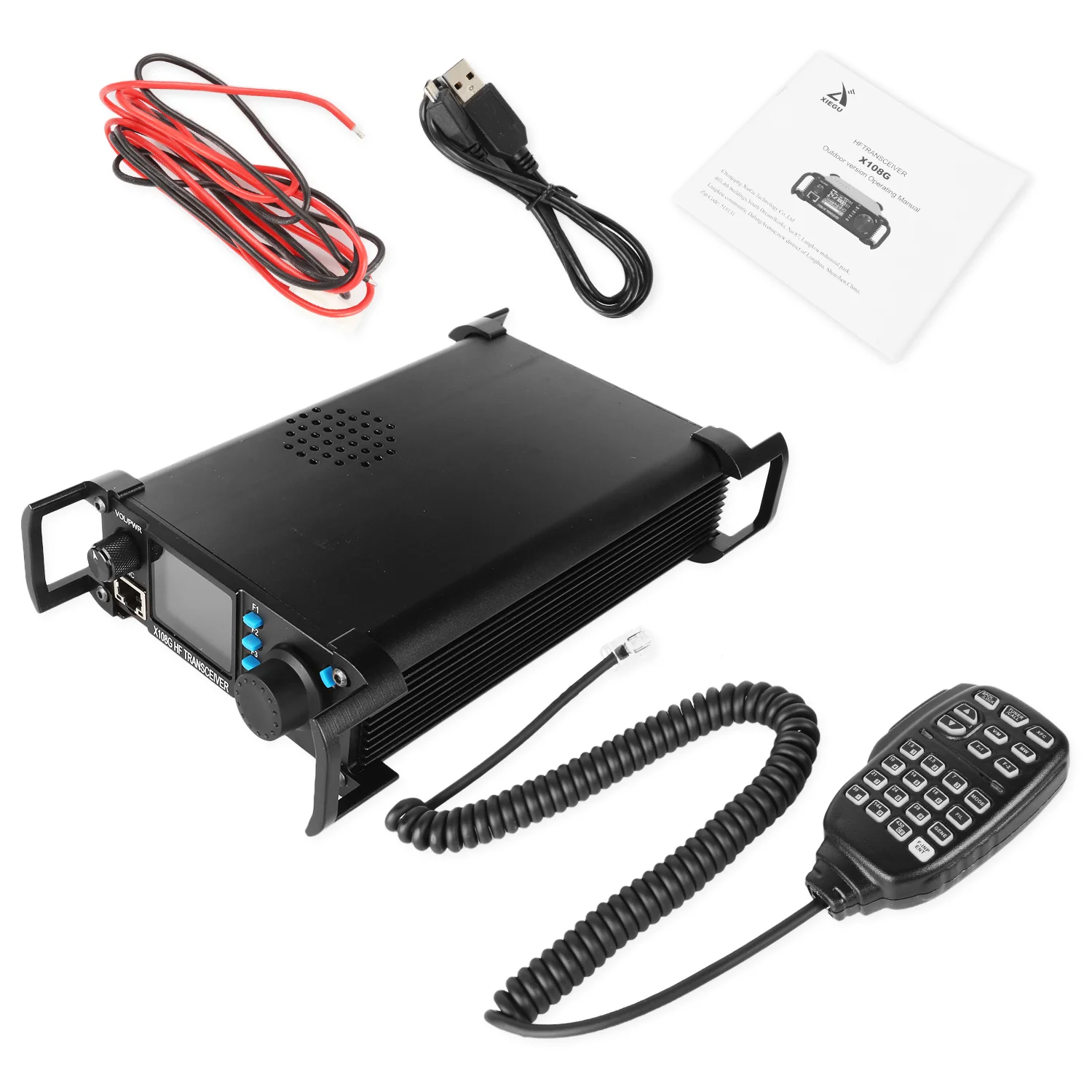

Package Content:

1 x X108G outdoor version HF Transceiver
1 x PTT Mic
1 x Power cable
1 x USB cable
1 x Ham Radio map
1 x contact log
