VGC VR-P25UD UHF Radio Amplifier | Analog and DMR | Auto Mode Switch | Up to 40 Watts
VR-P25UD is a lightweight portable handheld RF amplifier.
Features:
- Automatic switching
Between analog and digital modes. VR-P25UD is also suitable for TDMA signals in addition to FDMA (DMR Tier II and P25 Phase2)
- High output power up to 40 watts
With an input power of a handheld radio of 2-6 watts - up to 40 watts output power is possible.
- UHF band
The amplifier VR-P25UD can support UHF (400-470MHz)
- Compact design
With a compact size it is particularly suitable for outdoor use such as Field-day or for mounting in the car
- Certifications:
All VGC amplifiers have been certified by CE, FCC.
-Multi-functional:
Includes voltage stabilizer, overheating protection, RF sensing, auto power off, harmonic filters.
- Integrated speakers and microphone connection
- Status display about the current operating state
Three Primary Modes of Amplification
Radio Controlled

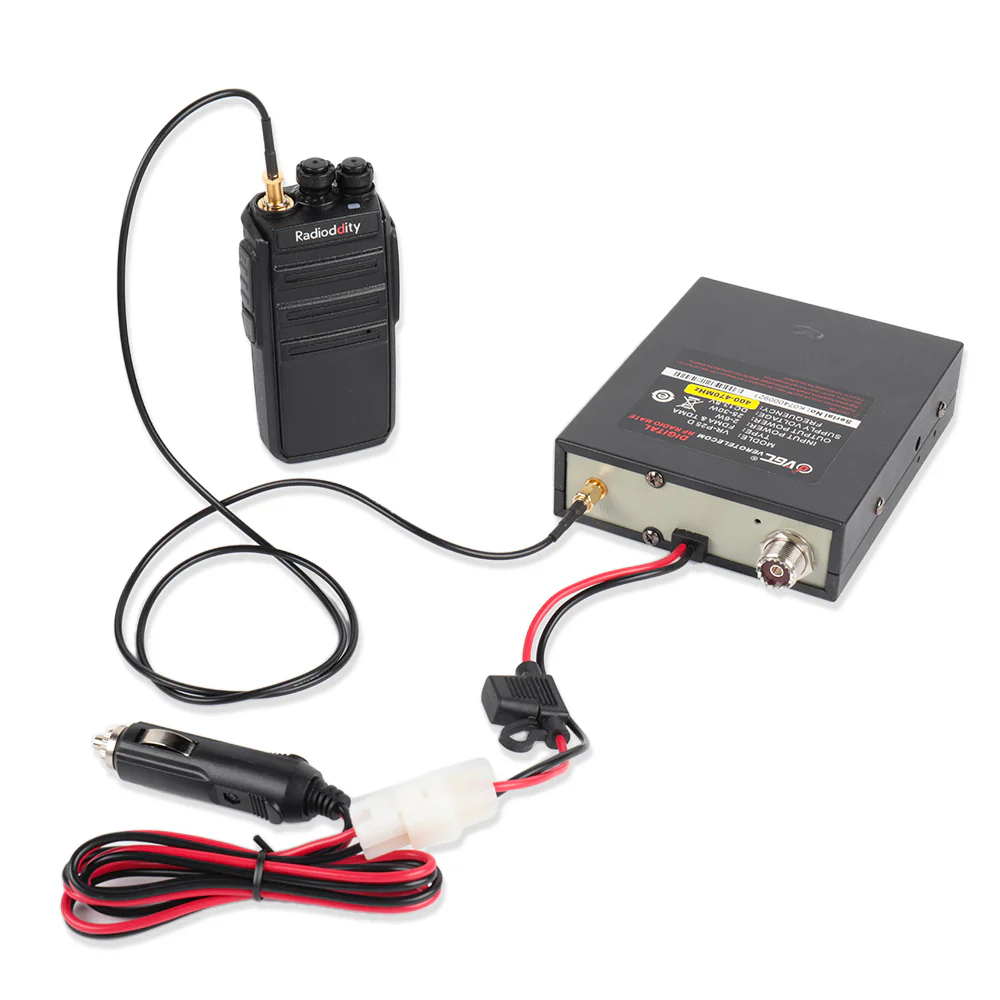

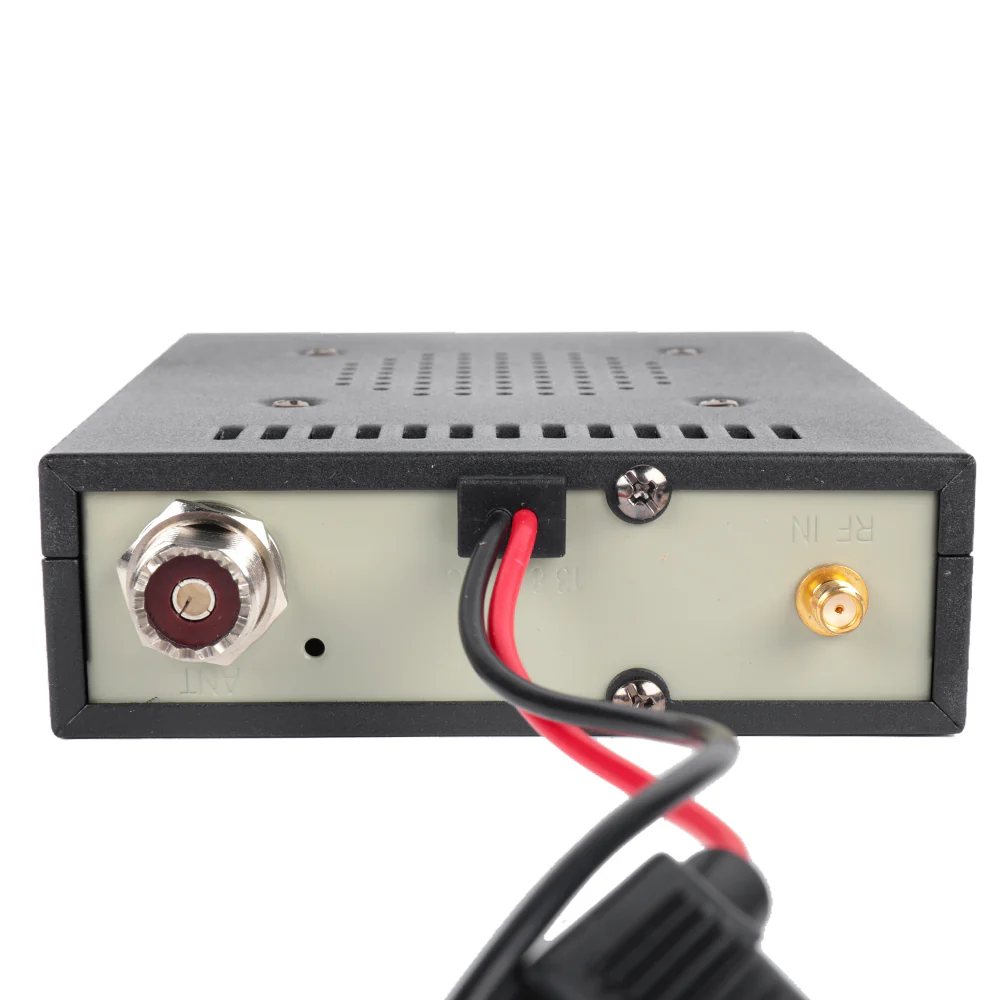

Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Transmit and receive right on the Handheld radio - while your output signal is amplified.
Accessory Controlled
Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Connect a speaker microphone, headset, or compatible accessory to the radio. Transmit and receive right on the accessory connected to the Handheld radio - while your output signal is amplified.
Amplifier Controlled

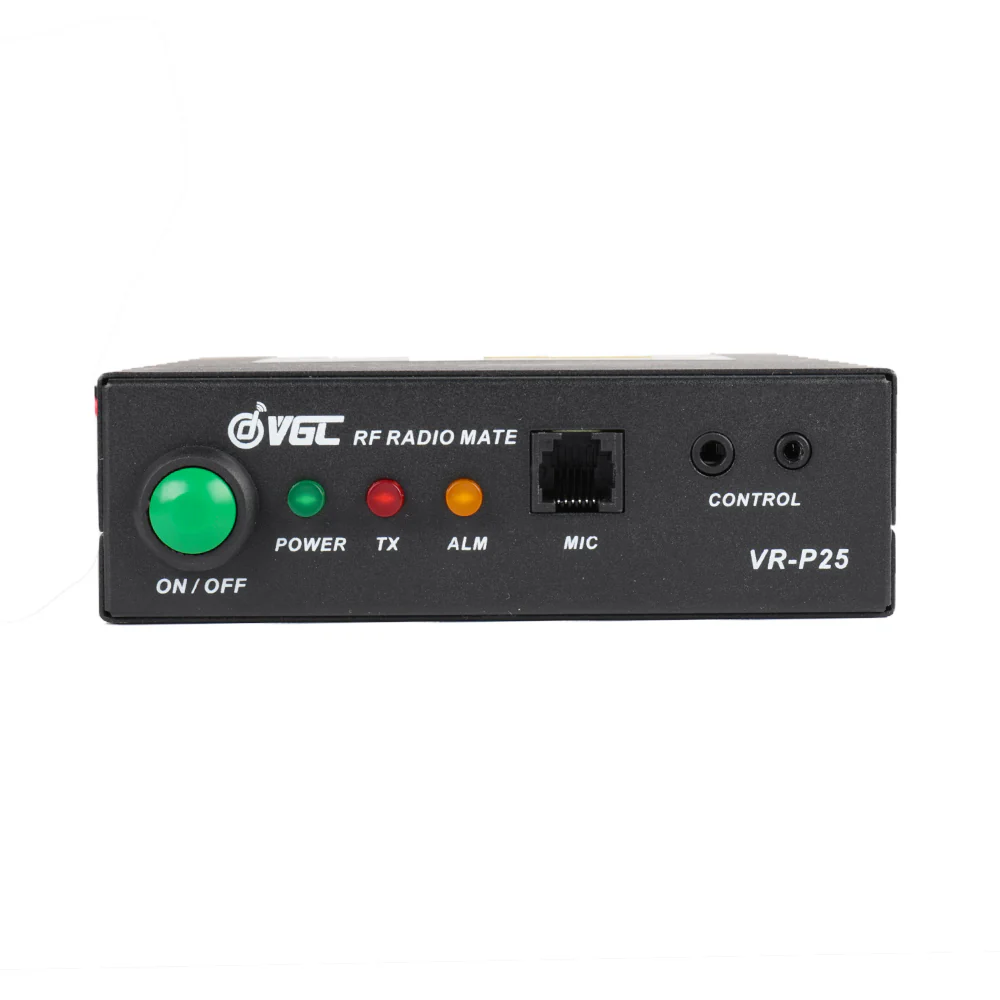

Connect the speaker microphone to the MIC jack on the front panel of the amplifier. Connect to the antenna output of the handheld transceiver to the RF IN connector on the rear panel of the amplifier with the Radio toAmplifier RF cable. Connect the accessory port of your radio to the Control jack on the front panel of the amplifier using the Amplifier Control Cable. Transmit and receive using the speaker microphone on the amplifier while incoming audio is relayed through the loud amplifier speaker.
Specifications:
Frequency range: 400-470MHz
Power supply: 13.8 VDC (± 15%), 5.5 A maximum
Input RF power: 2 - 6W (± 10%)
Output RF power: 20 - 40W
Size: 5.5 in D x 4.5 in. W x 1.4 in. H (135 mm D x 115 mm W x 36 mm H)
Dead weight: 1.5 lbs. (680 g)

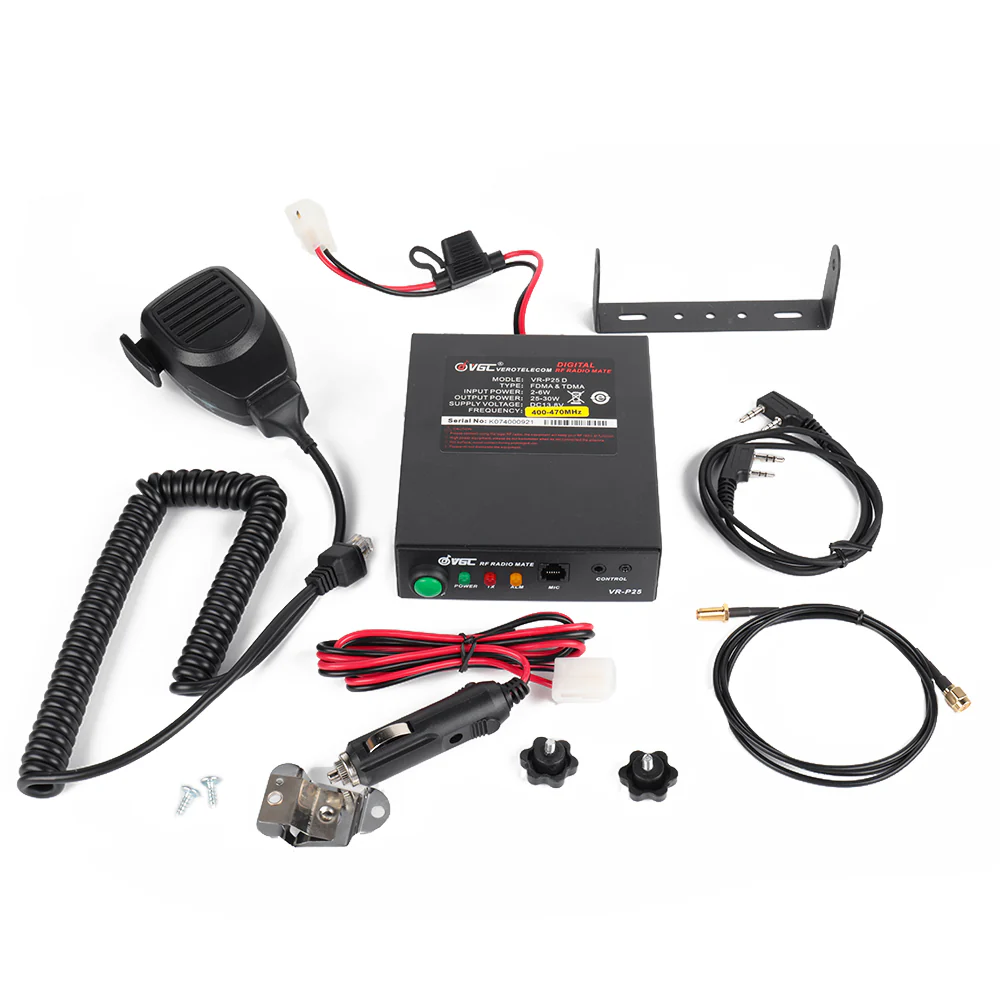

Package Content:
1 x VGC VR-P25U amplifier
1 x Speaker microphone
1 x SMA female cable
1 x Power supply
1 x Mounting bracket
1 x Remote control cable (standard K1)
1 x Screw sets
1 x User manual
Original: $99.99
-65%$99.99
$35.00More Images
