TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]
HomeStore

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]

Functions:

Frequency Range: UHF: 400-490MHz
Output Power:  UHF: 45W/25W/10W

8 group's of scrambler:
1750Hz Tone:CTCSS/DCS setting & scanning
0-9 SQL grade setting: Frequency/Channel scanning
High/Mid/Low power selectable: Voice commander
Repeater offset shift: Keypad lock function
Contact book: Battery voltage display
DTMF/2 tone/5 tone: ANI ID
Remote kill/ stun/ activate/ revive: Emergency alarm
Wide/Narrow band setting: TX inhibit
Busy Channel Lock-Out: Channel name editing
Reverse frequency: Talk around
Scrambler(Optional): Voice prompt
Time-out Timer: Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz


Specification:

General:
Frequency Range: 400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g

Receiver:
Reference Sensitivity: 0.2ÎŒV @ 12dB SINAD
Operating Bandwidth: [email protected] /70dB@25KHz
Adjacent Channel Selectivity: [email protected] 70dB@25KHz
Inter-modulation Rejection: ≄60dB/ ≄65dB
Spurious Response Rejection: ≄70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≄40dB@25KHz /≄45KHz @12.5KHz

Transmitter:
RF Power: 45W/25W/10W(UHF)
Frequency Modulation: 11kΊF3E / 16kΊF3E
Modulation Distortion: <5%
FM Noise: ≄36dB@25KHz /≄40KHz @12.5KHz
Adjacent Channel Power: ≄[email protected] /≄70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%


Package Content:

1 x TYT TH-9000D 400-490MHz  Mobile Transceiver
1 x Handheld Microphone
1 x Power Cable
1 x Screws and Accessories
1 x User's Manual
1 x Fixed Bracket
$128.99
TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED]—
$128.99

More Images

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 2

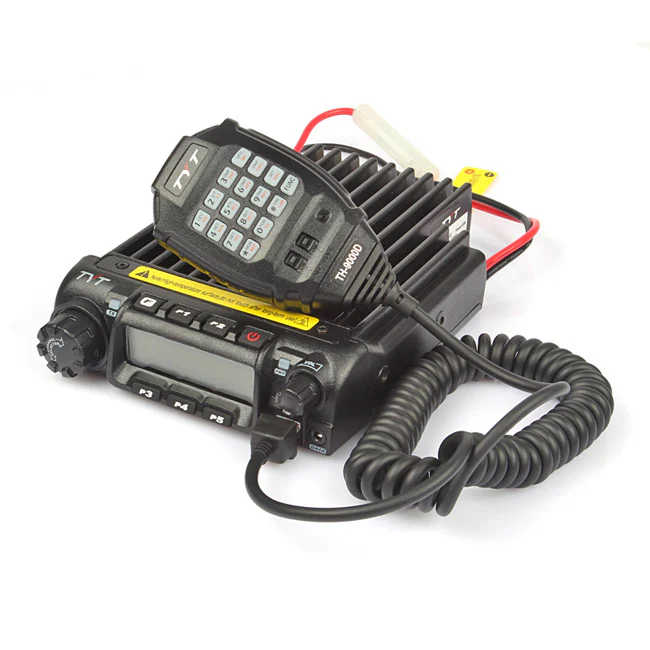

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 3

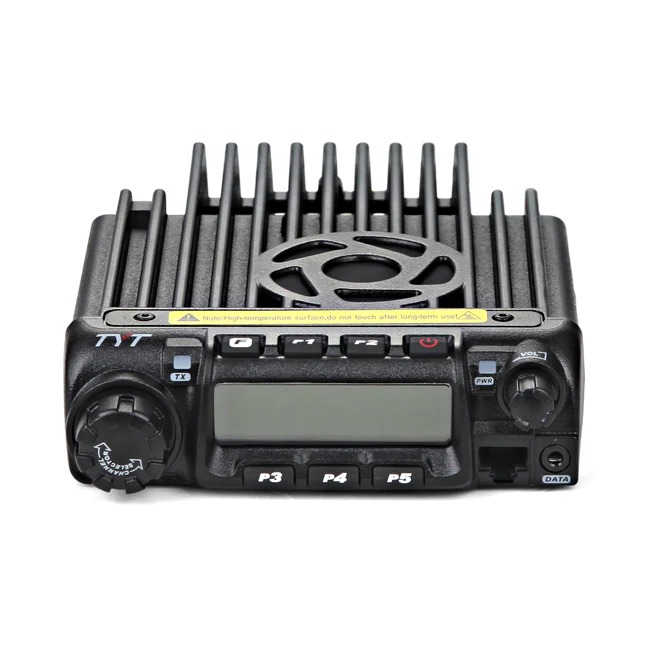

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 4

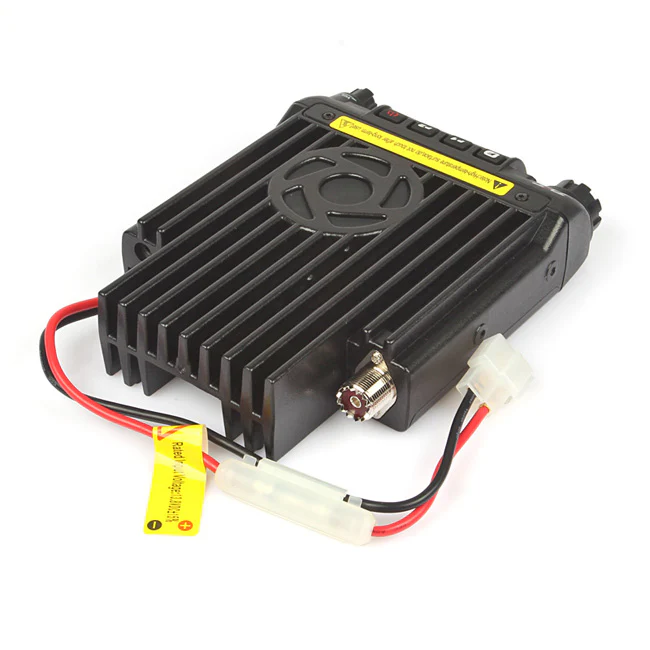

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 5

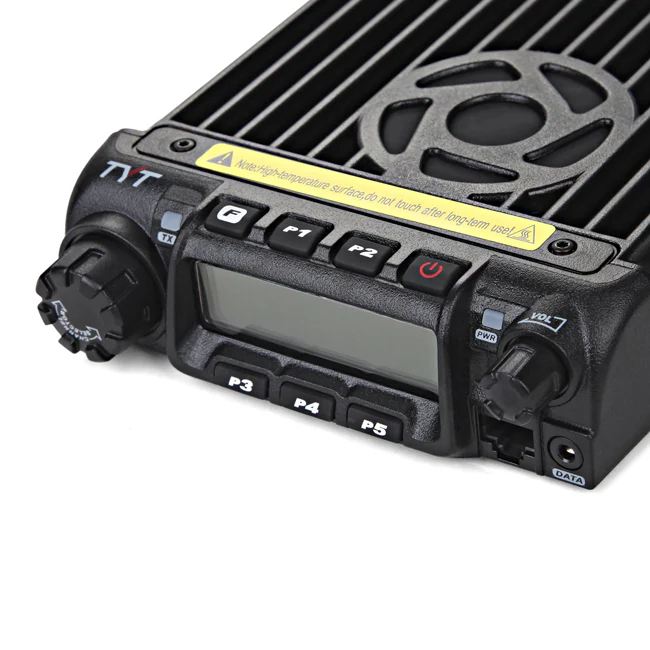

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 6

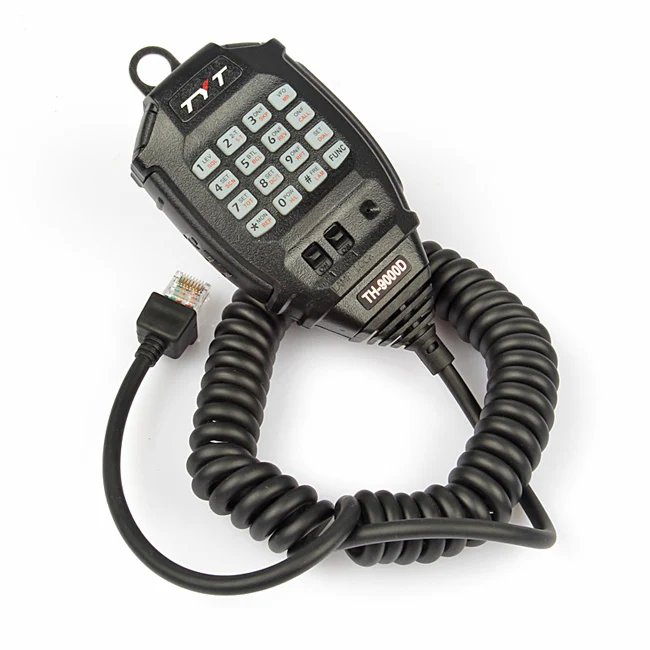

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 7

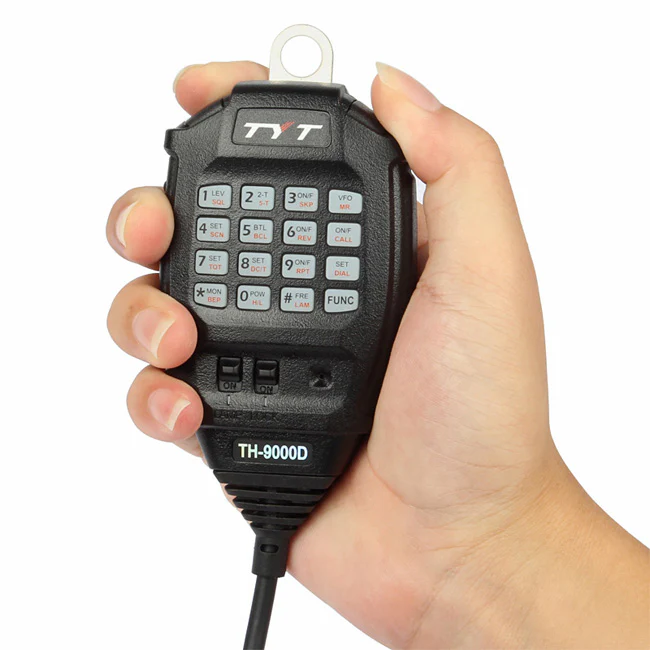

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 8

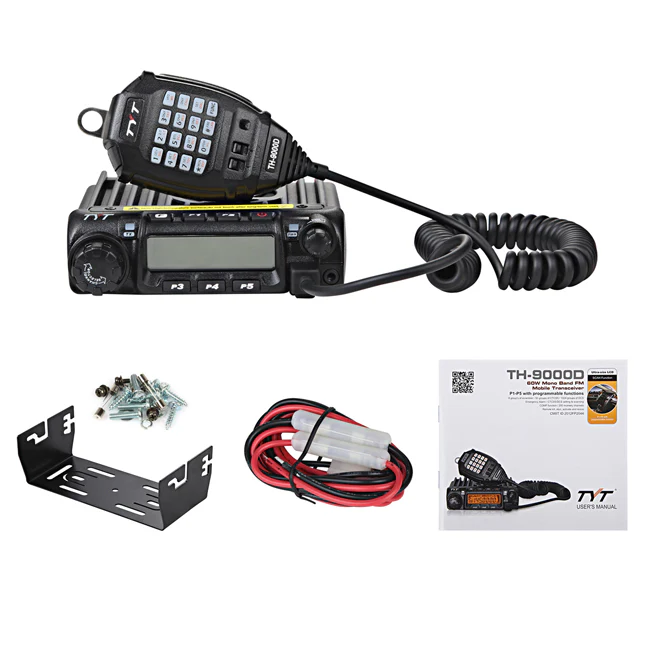

TYT TH-9000D 400-490MHz 45W Car Mobile Radio Transceiver [DISCONTINUED] - Image 9
