TYT MD-380G VHF DMR+GPS

Product Functions:
1.  Advanced GPS function for emergency communication
2.  Use TDMA digital which doubles the number of users on a single licensed
3.  12.5KHz channel comply with DMR digital protocol
4.  Private call, group call, all call
5.  CTCSS / DCS, Auto scan
6.  English Voice Prompt
7.  Wide narrow selection
8.  High/Low power
9.  Emergency Alarm
10. Time out timer
11. Encryption


Product Specification:

General:
Frequency Range: 136-174MHz
Channel No.: 1000
Antenna impedance: 50Ω
Antenna: High and gain
Operating Voltage: 7.5 vDC
Operating Temperature: -30~+60
Dimension(W x H x D): 131x61x38mm
Battery: 2000mAh Li-ion

Transmitter:
Output power: ≥5W(H); ≥1W(L)
Vocoder type: TDMA
Frequency Stability: 1.0 PPM
Adjacent channel power: ≤-60dB
Spurious Radiation: Antenna:9KHz-1GHz ,≤ -36dBm; 1GHz-12.75GHz ,≤-30dBm
Hum and noise: -40dB 12.5KHz
4 FSK Digital Mode: 12.5KHz(data only):7k60FXD; 12.5KHz(data+voice)7k60FXE

Receiver:
Digital sensitivity: 0.3uV/-117.4dBm(BER 5%); 0.22uV/-100dBm(BER 1%)
Audio distortion: 3%(TYPE)
Audio power: 1W
Autio response: =1dB-3dB
Adjacent Channel Selectivity: Tia603C:65dB,ETSI:60dB
Spurious: Tia603C:75dB,ETSI:70dB
Co Channel rejection: ≥-12 dB

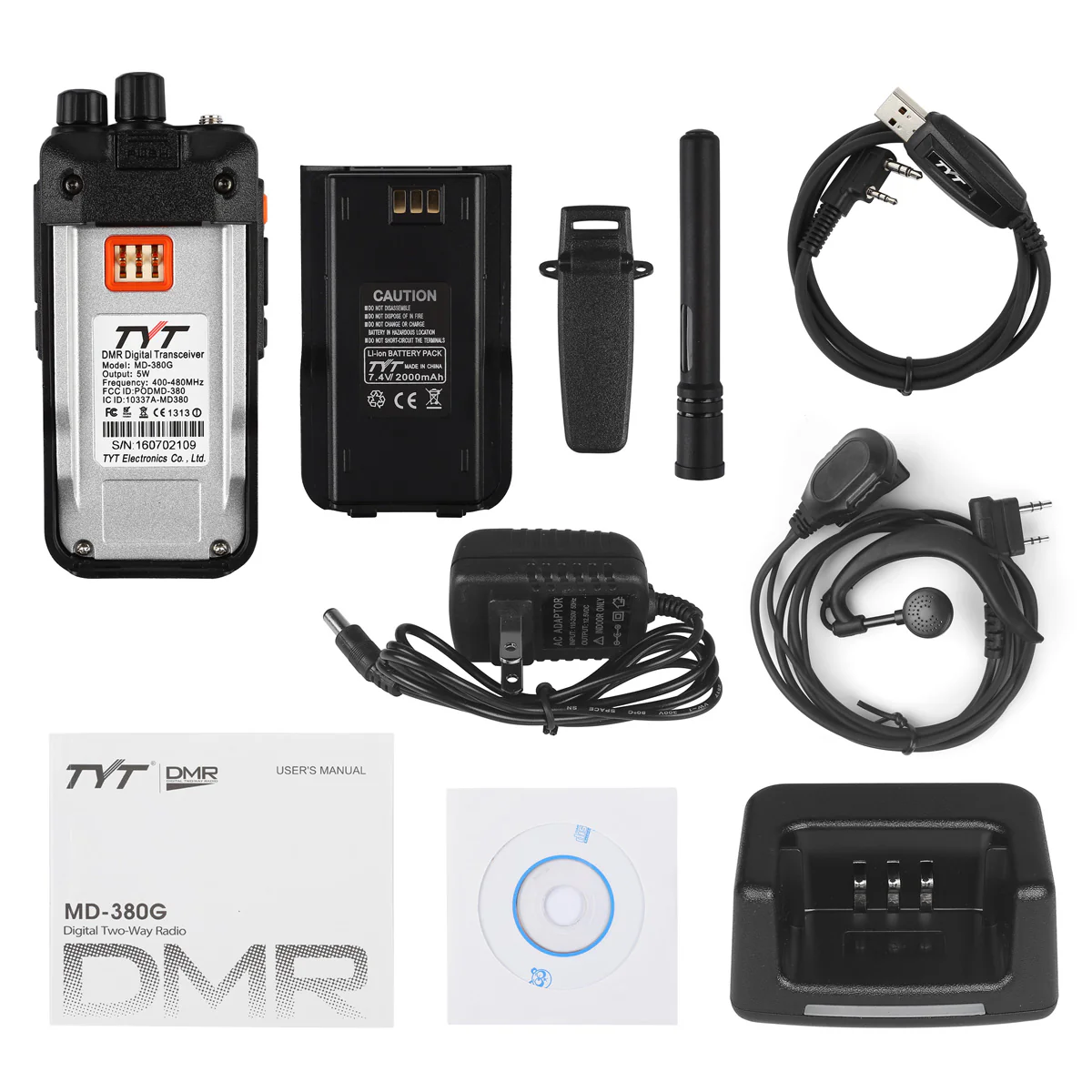

Package Content:
1 x TYT MD-380G VHF DMR with GPS
2 x Antenna
1 x Li-ion Battery 2000mAh
1 x Belt Clip
1 x Charger
1 x Adapter
1 x User's Manual
1 x Programming Cable & CD
