Radioddity HF-010 Portable HF Antenna | 80m-6m Full Band | All-Terrain Setup | SWR 1-1.5 | Quick-Tuning
Radioddity HF-010 Portable HF Antenna | 80m-6m Full Band | All-Terrain Setup | SWR 1-1.5 | Quick-Tuning
Elevate your field operations with the Radioddity HF-010. Designed for serious ham radio operators, this portable HF vertical antenna kit eliminates the common frustrations of field setups. Standard aluminum components have been replaced with high-grade 304 stainless steel threaded connectors across the entire assembly. Combined with a protective anti-corrosion coating and an integrated internal-coil design, the HF-010 is built to withstand the rigors of POTA, SOTA, and unpredictable backyard weather.
The HF-010 delivers true multiband flexibility with full 10-band coverage from 80m to 6m and power handling up to 150W PEP. It pairs equally well with QRP rigs and standard transceivers with up to 150W. With both a ground spike and a tripod supported by a stability water bag, deployment is never limited by terrain. Whether operating from a mountain peak, a concrete patio, or mounting the HF vertical antenna to a vehicle roof using a magnetic base such as the Radioddity M916 (this requires the optional HF-010A accessory), setup remains fast, stable, and efficient.
Built for real-world portable use and operation on a parked car (combined with the HF-010A accessory), the Radioddity HF-010 combines durability, versatility, and consistent on-air performance for operators who demand reliability in the field.
10-BAND HF COVERAGE (80M–6M)
Operates from 3.5–50MHz, supporting up to 100W CW / 150W PEP SSB. Features dedicated fixed coils for 80m and a smooth sliding tuning coil for 60m–17m, delivering low SWR (typical ≤1.5:1) and stable resonance across bands—ideal for portable HF operations.

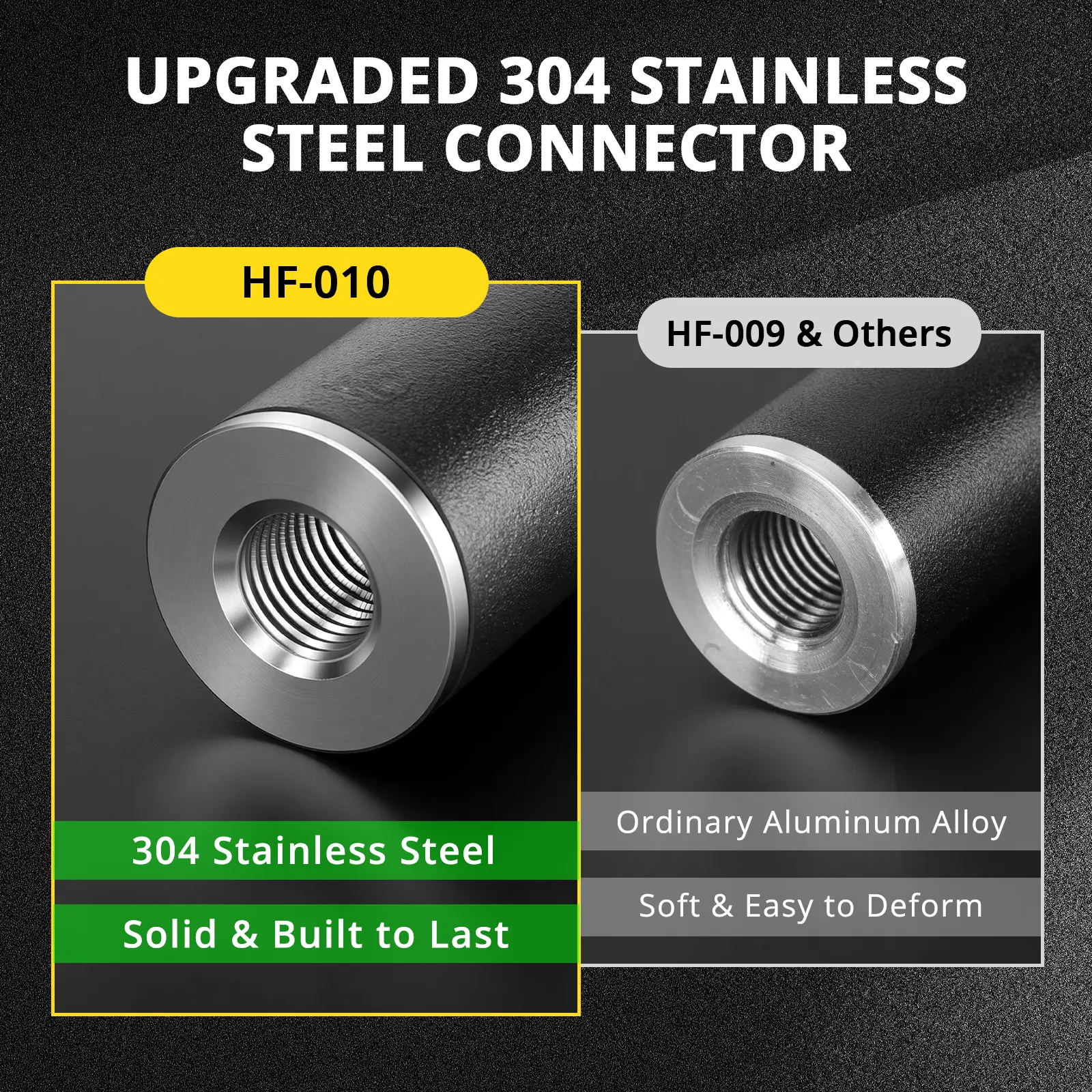

304 STAINLESS STEEL CONSTRUCTION
Built for demanding outdoor use. Critical connectors are upgraded to 304 stainless steel for superior corrosion resistance, enhanced structural rigidity, and long-term durability. The enclosed sliding coil design protects against dust and moisture, ensuring stable tuning in harsh field conditions.

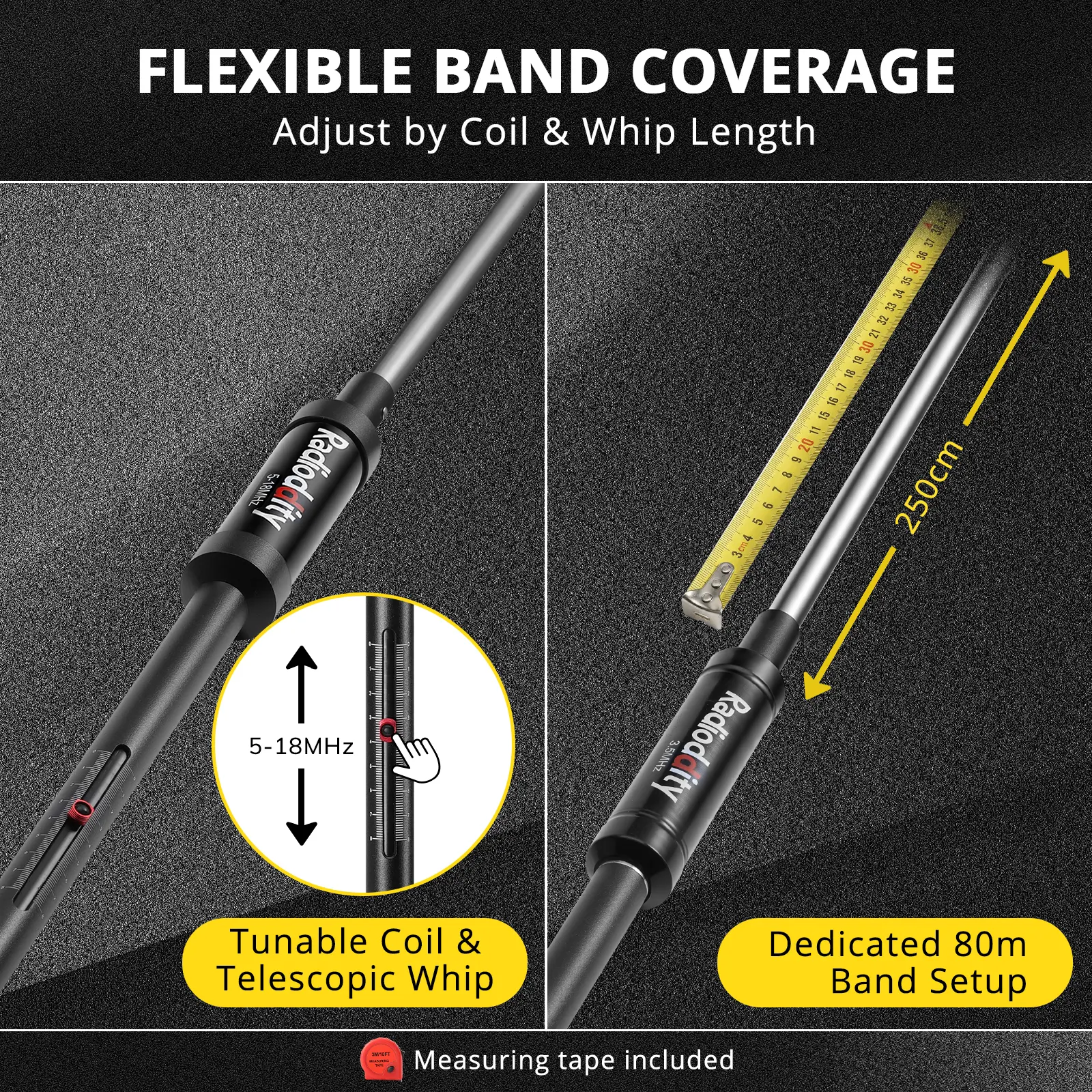

QUICK SLIDING TUNING & EASY SETUP
Slide to tune and use the included tape measure to mark resonant points for quick band switching. Segmented design allows fast setup and storage in the included Oxford carrying bag, perfect for hiking, travel, and emergency use.
Installation Instruction:
1. Base Assembly & Grounding
Assemble the ground spike, connecting piece, tripod mount, and antenna base.
2. Install Extension Rods
Screw both extension rods onto the top of the antenna base.

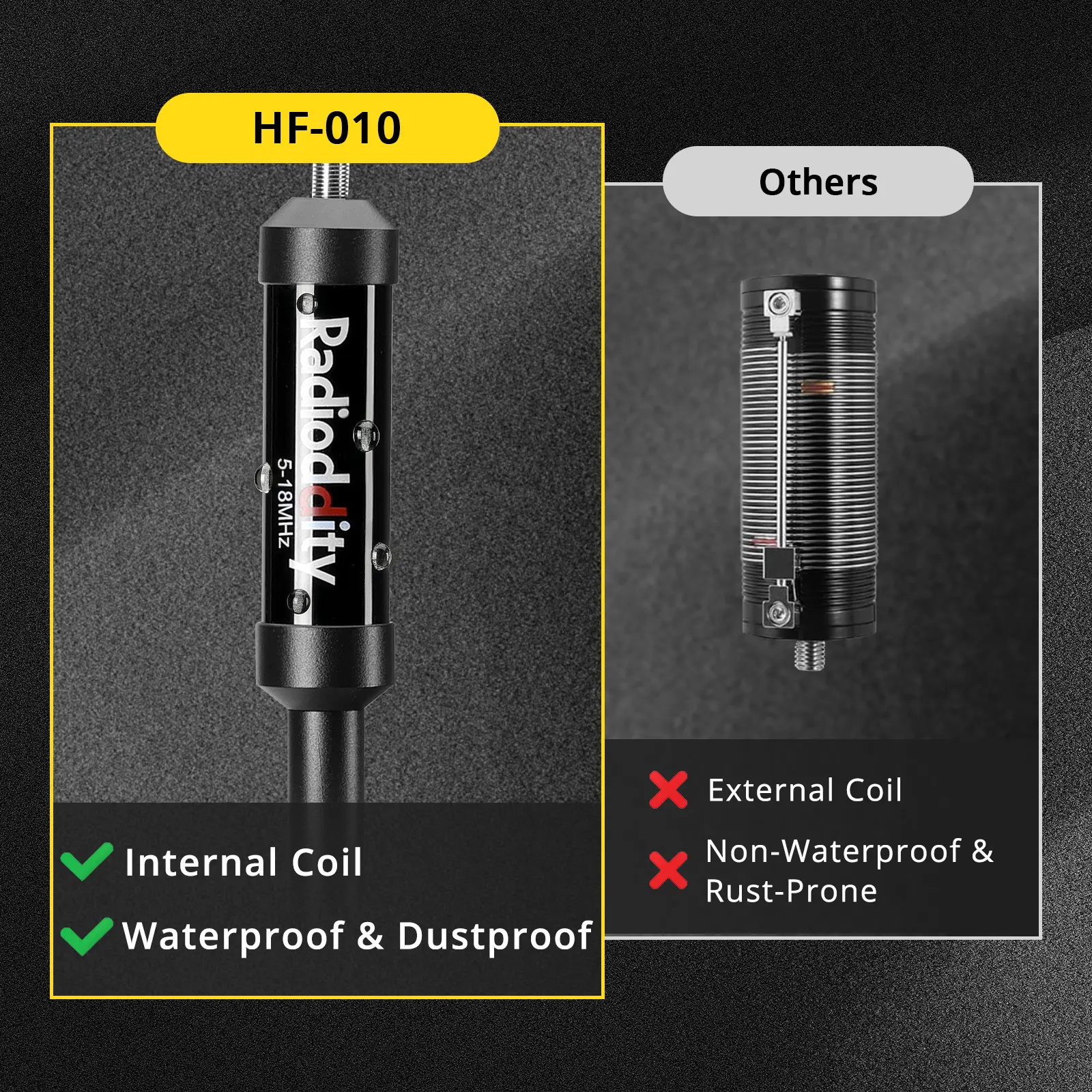

3. Attach the Loading Coil
Mount the appropriate coil on top of the extension rods:
For 60m – 17m: Use the tunable loading coil.
For 80m: Use the fixed loading coil.
Note: Omit the coil for frequencies above 18 MHz (15m–6m) for best performance.
4. Mount the Telescopic Whip
Screw the telescopic whip onto the very top of the assembly. Adjust the whip's
extension length according to the frequency table in the manual to achieve resonance.
5. Connect the Ground Radial Wires with their specified lengths.
Specifications：
Frequency: 80m - 6m (3.5 - 50MHz)
Maximum Power Rating: 100W CW / 150W PEP SSB
SWR: ≤ 1.5:1
Ground Radials: 3 × 4.8 m (15.7 ft each)
Coaxial Cable: 10 m (32.8 ft)
Impedance: 50 Ω
Max total length: 2.75 m (9.0 ft)
Maximum visible length: 5.1 m (16.7 ft)
Net Weight: 2.5 kg (5.5 lb)
Total Weight (with accessories): 3 kg (6.6 lb)
Carrying Bag Size: 55 × 20 × 9 cm (21.7 × 7.9 × 3.5 in)
QA:

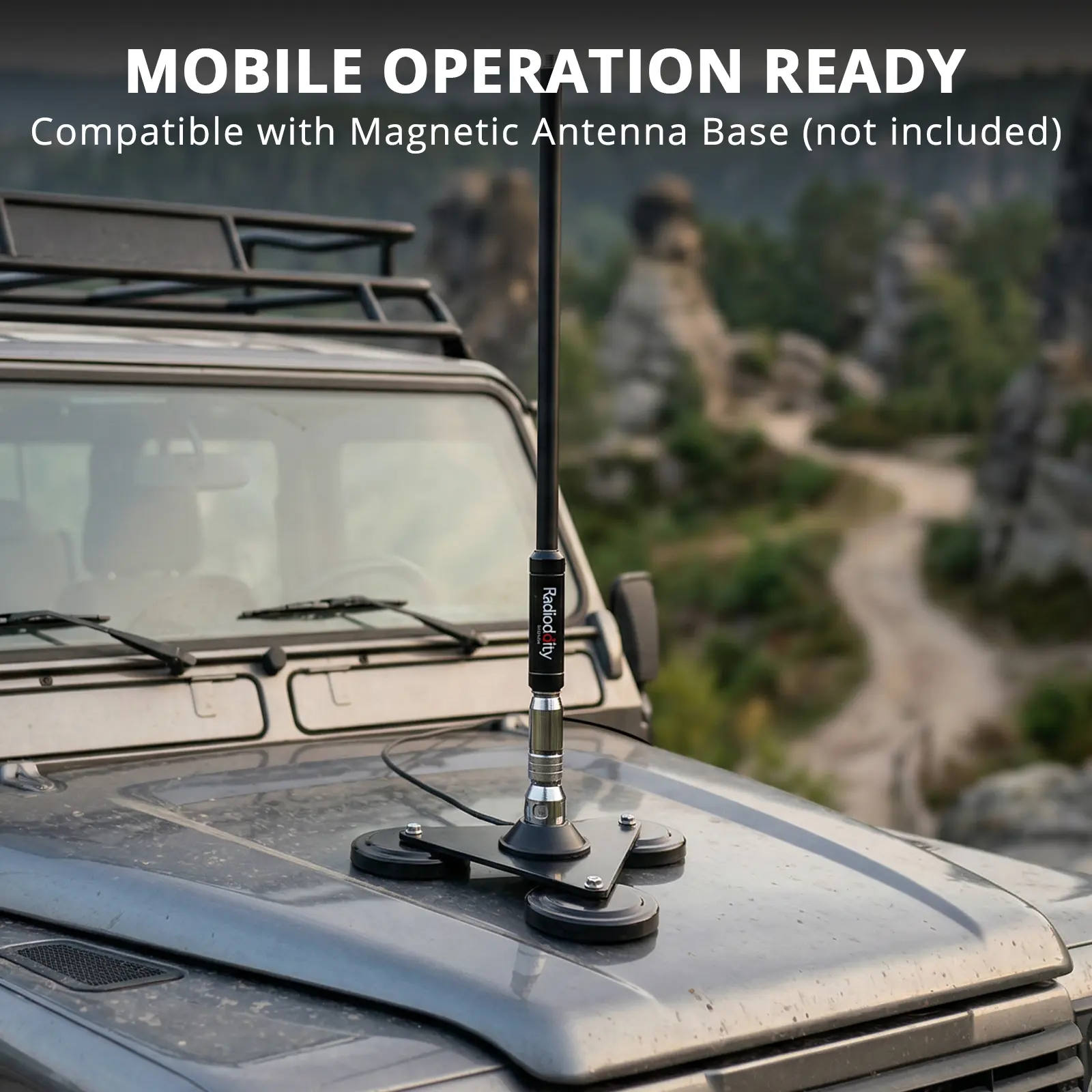

Q: Can I use this antenna for mobile operations on my car?
A: Yes. The HF-010 supports vehicle mounting with a compatible magnetic antenna base (sold separately). We recommend pairing it with the Radioddity M916 magnetic base and the Radioddity HF-0101A adapter for a stable setup on a parked vehicle. Since not all users require vehicle mounting, these accessories are optional.
Q: How stable is the antenna on hard surfaces like a patio?
A: For surfaces where a ground spike can’t be used, the HF-010 includes a folding tripod and a 3-liter water bag for increasing its stability. Once filled, the bag provides ballast to keep the antenna secure and stable even in moderate wind on concrete, patios, or other hard surfaces.
Q: Is it difficult to tune for different bands?
A: Not at all. The HF-010 comes with a detailed Quick Setup table. Simply adjust the sliding coil and telescopic whip to the marked positions using the included tape measure, achieving near-perfect SWR in seconds for fast, hassle-free multiband operation.
HF-010
JPC-12 (PAC-12)
ATAS-120A
Frequency Range
Power Rating
Connector & Material
Rust-Resistant Finish
Mounting Surfaces
Out-of-the-box Setup
Stability Tools
Coax Cable
Cable Management
Tuning Method
Tuning Accessories
Carrying Bag
Total Weight
Unique Advantages
(80m - 6m)@@100W CW
150W PEP SSB@@304 Stainless Steel
(SO-239 Base)@@✔ Stainless Upgrade@@Soft Soil & Hard Surfaces
(Concrete/Floor)@@✔ Complete Kit
(< 2 Min Setup)@@Tripod Mount &
3L Water Bag@@32.8ft (10m) RG58@@✔ Integrated Spools
(Coax & Radials)@@Sliding Coil +
Telescopic Whip@@✔ Tape Measure Included
(additional marks on ground radials)@@✔@@6.6 lbs (3 kg)@@80m Ready.
Ultimate stability & wire mgmt.
*80m needs opt. coil@@100W SSB@@Aluminum Alloy
(M10 Thread)@@Anodized
(Dry after use)@@Soft Soil Only
(Grass/Sand)@@✔ Basic Kit
(3-5 Min Setup)@@Ground Spike Only@@× Not Included@@× Not Included@@Sliding Coil +
Telescopic Whip@@Coil Marks Only@@✔@@3.1 lbs (1.4 kg)@@Ultra-lightweight.
M10 thread limits accessories.
(40m - 70cm)@@120W SSB@@Stainless Steel
(PL-259 Base)@@✔ Waterproof Cap@@Vehicle Mounts
(Trunk/Balcony)@@× Requires Yaesu Radio
& Mobile Mount@@Relies on Vehicle Mount@@× Not Included@@× Not Included@@Auto-Tuning Motor
(Via Radio)@@Allen Wrench@@×@@~2.0 lbs (0.9 kg)@@Hands-free auto tuning.
Ideal for mobile.

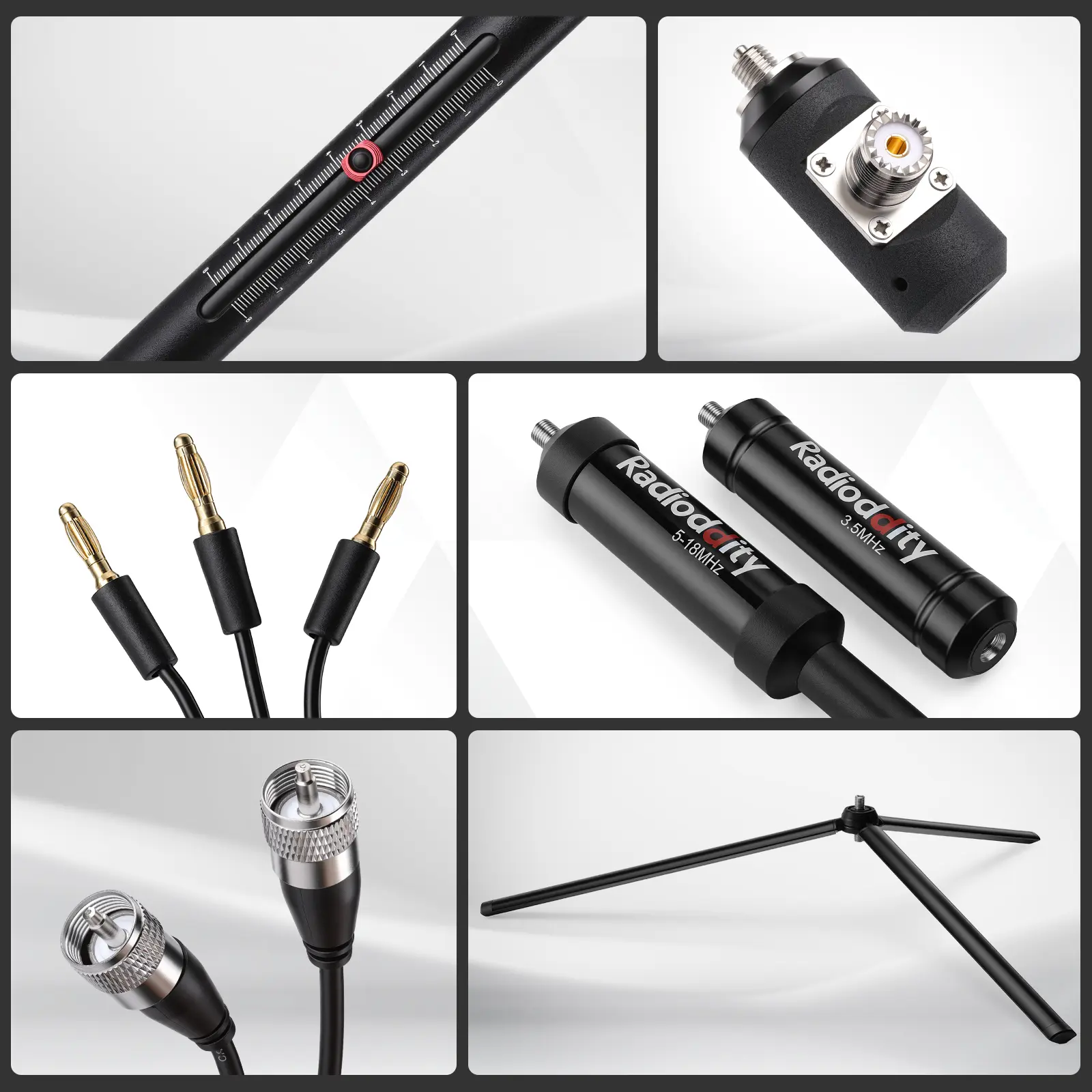

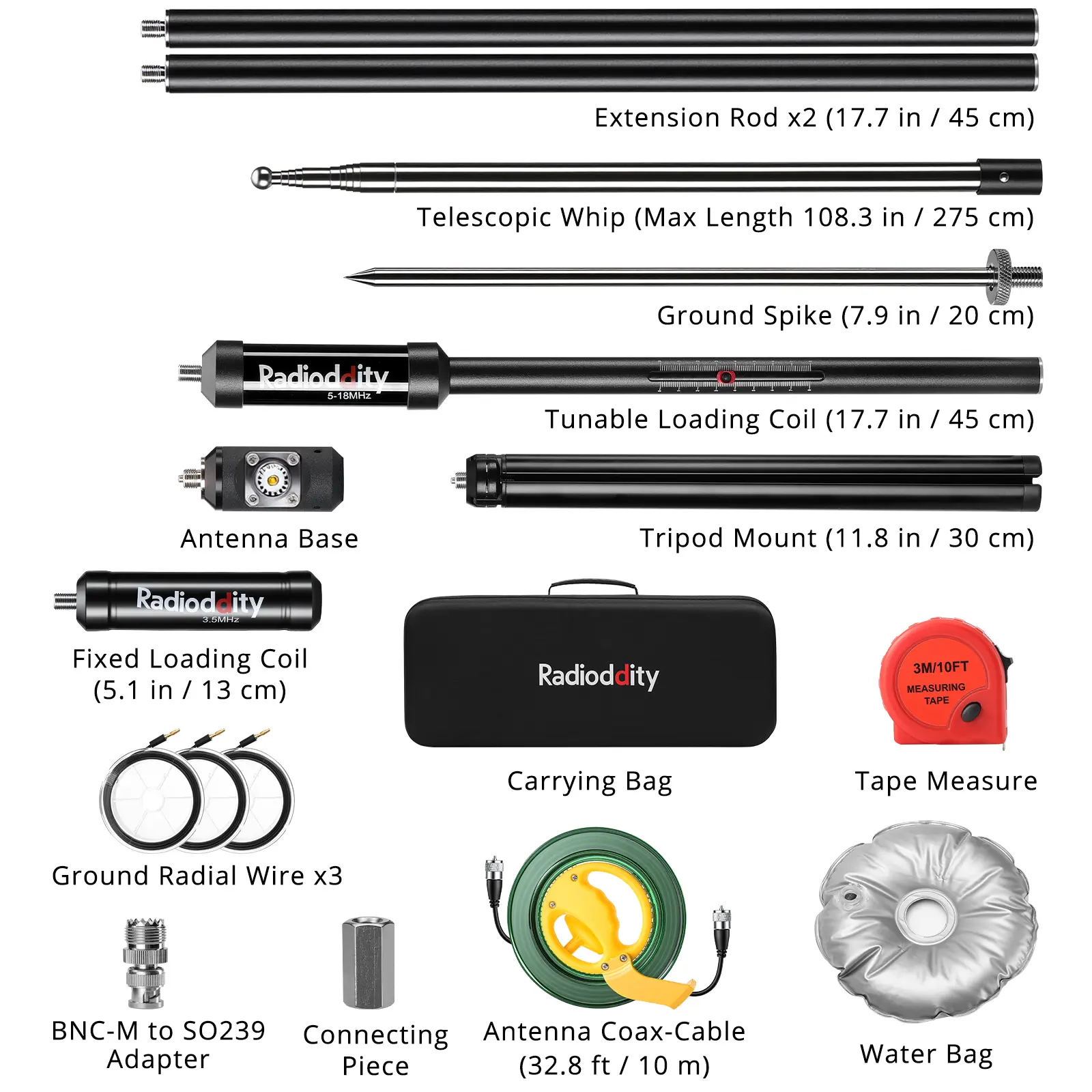

What’s in the box?
1 x Antenna Base
1 x Ground Spike (7.9 in / 20 cm)
1 x Securing Nut
2 x Extension Rod (17.7 in / 45 cm)
1 x Tunable Loading Coil (17.7 in / 45 cm)
1 x Fixed Loading Coil (5.1 in / 13 cm)
1 x Telescopic Whip (Max Length 108.3 in / 275 cm)
3 x Ground Radial Wire
1 x Antenna Coax-Cable (32.8 feet / 10 m)
1 x BNC-M to SO239 Adapter
1 x Tripod Mount (11.8 in / 30 cm)
1 x Connecting Piece
1 x Water Bag
1 x Tape Measure

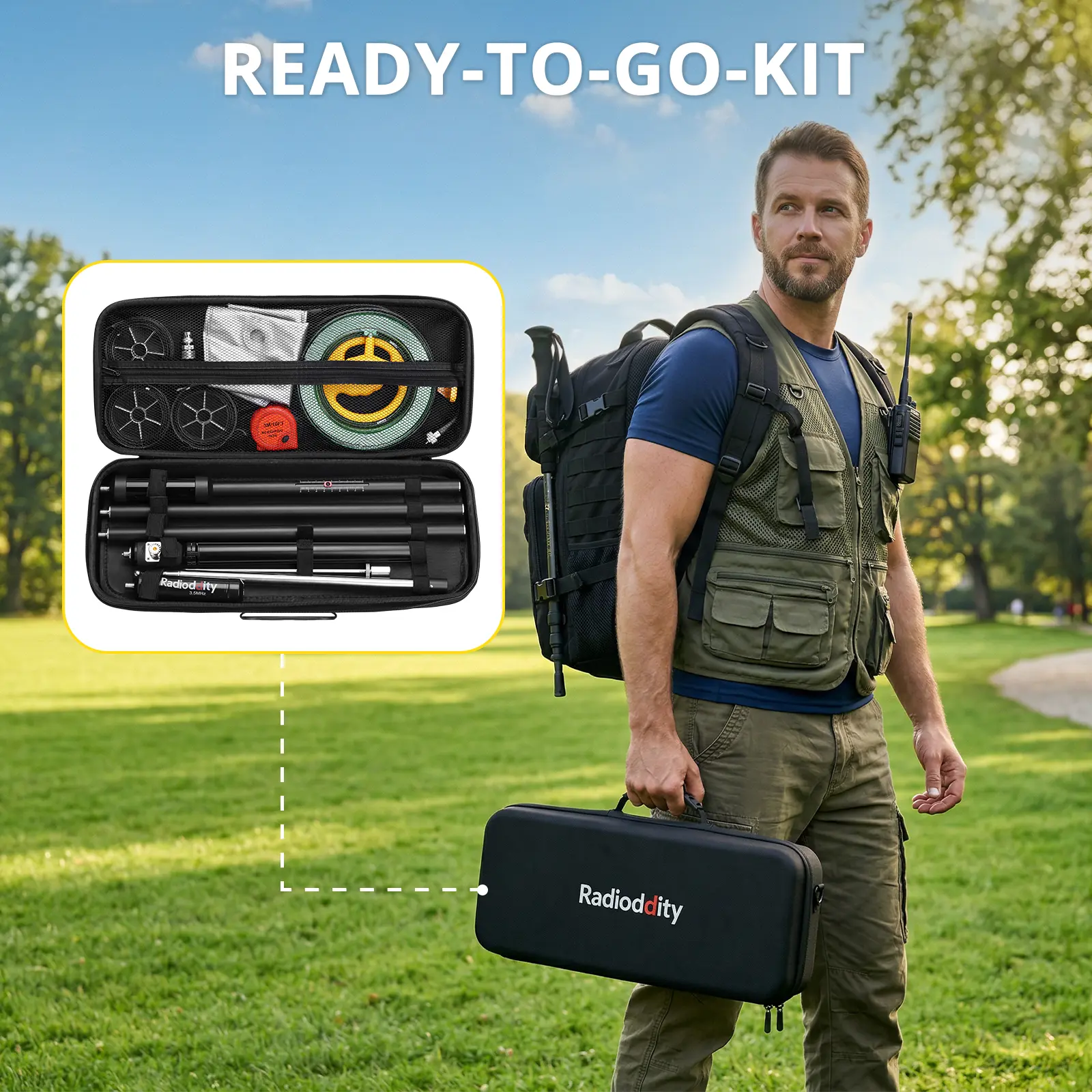

1 x Carrying Bag
1 x User manual (English)
Original: $239.00
-65%$239.00
$83.65More Images
