Raddy Mini Radio All-Band DSP Radio | Si4732 Chip | FM/SW/MW/VHF/CB Receiver | LSB/USB Modes | Headphone Amplifier | 1.9" Color Screen | Pocket Size | Firmware Upgrade
Raddy Mini Radio All-Band DSP Radio | Si4732 Chip | FM/SW/MW/VHF/CB Receiver | LSB/USB Modes | Headphone Amplifier | 1.9" Color Screen | Pocket Size | Firmware Upgrade
The Raddy Mini Radio integrates a high-performance Si4732 DSP chip with a dual-core ESP32 module, delivering exceptional sensitivity and rock-solid stability across AM, FM, MW, SW, VHF, and CB bands.
Engineered for precision, its Hi-Z input circuit and dedicated headphone amplifier work in tandem to provide crystal-clear audio and superior anti-interference—even when navigating the most challenging weak-signal conditions. The vibrant 1.9-inch IPS color display offers an intuitive, easy-to-read interface, while the USB-C port ensures your device stays future-proof with seamless firmware upgrades.
Powerful yet pocket-sized, the Raddy Mini Radio is the ultimate all-in-one receiver for enthusiasts who refuse to compromise on reception quality while on the go.

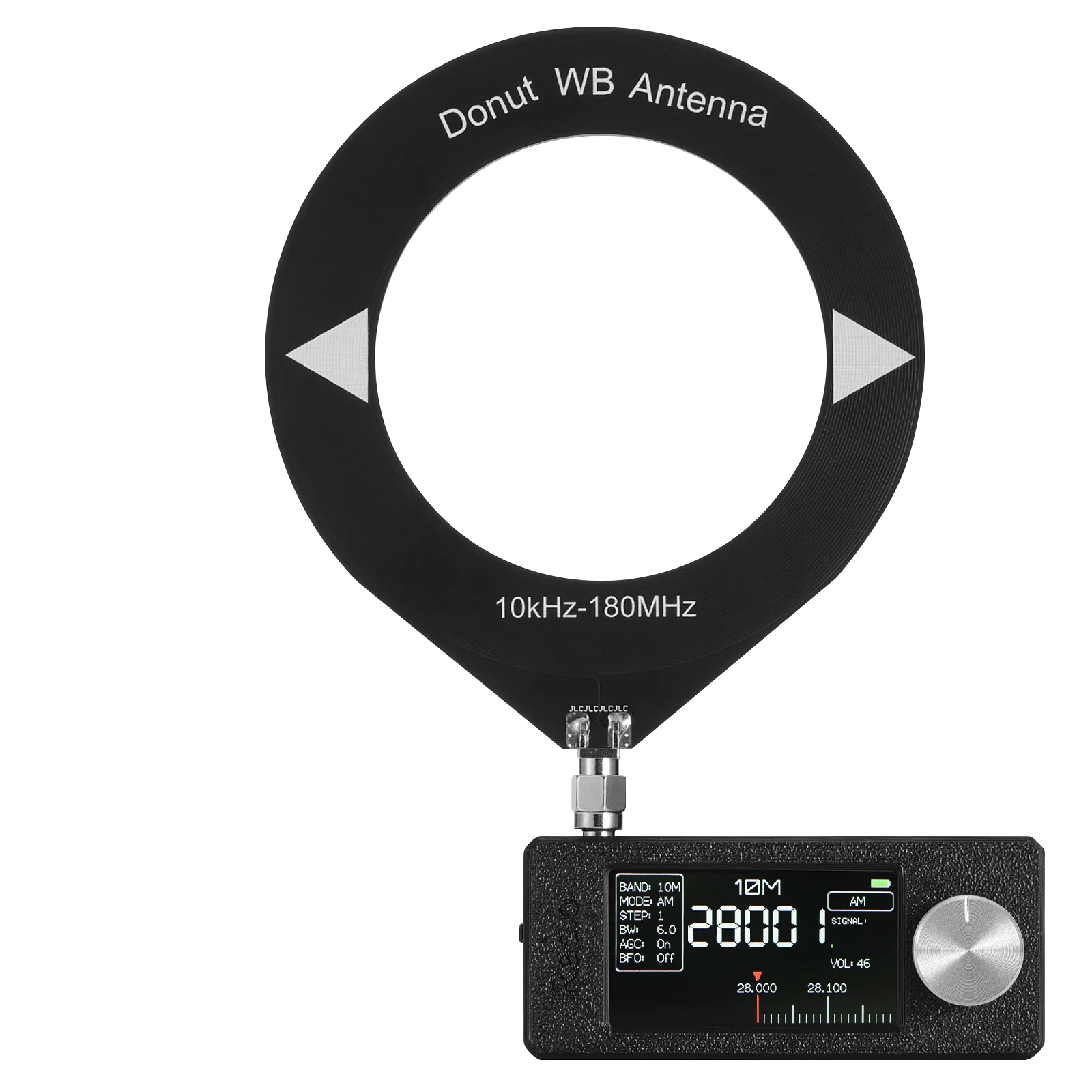

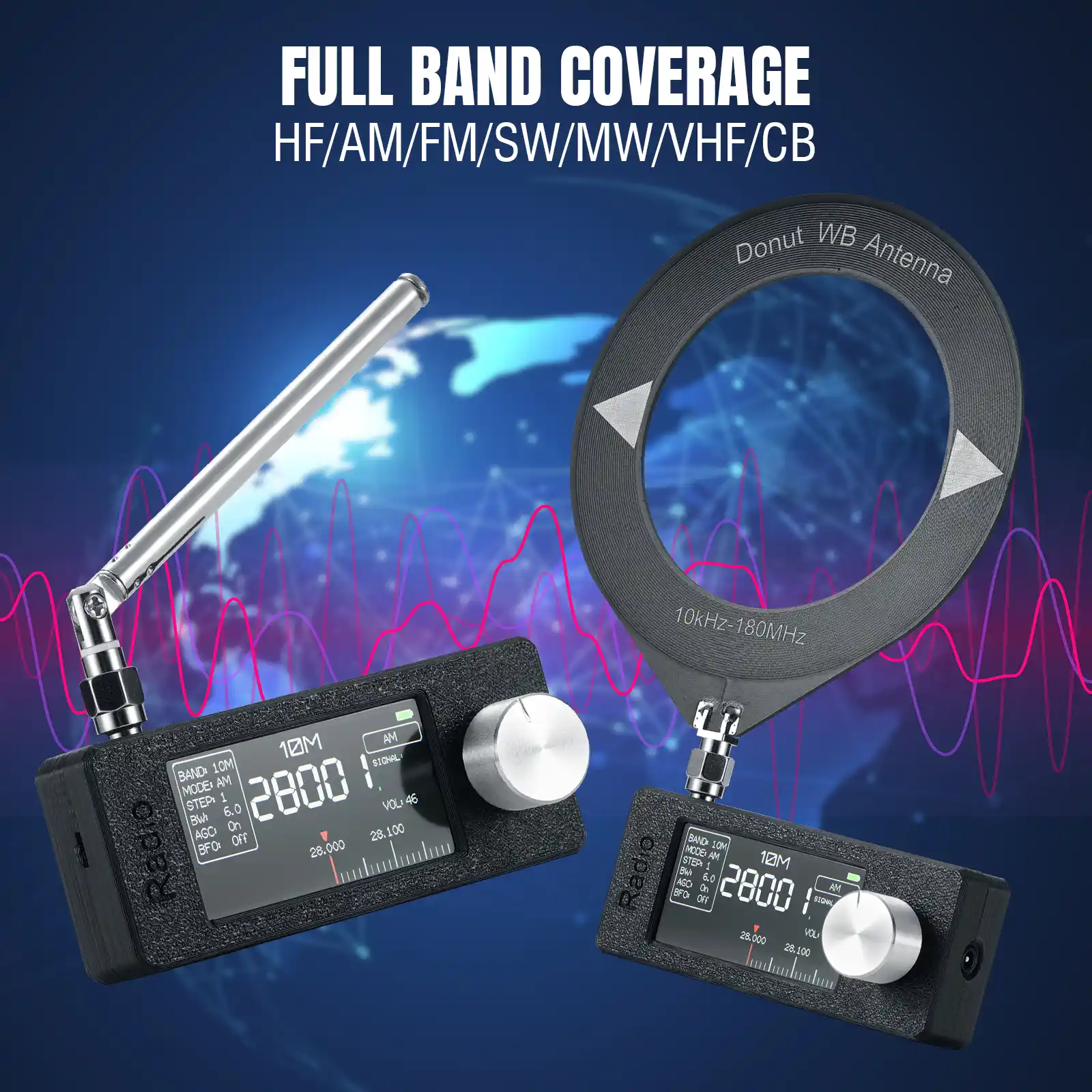

Dual-Antenna Enhanced Reception
Features a telescopic antenna and a dedicated Donut antenna to improve reception across AM/FM/LW/MW/SW/VHF/CB bands, delivering clearer and more stable signals across a wide range of frequencies.

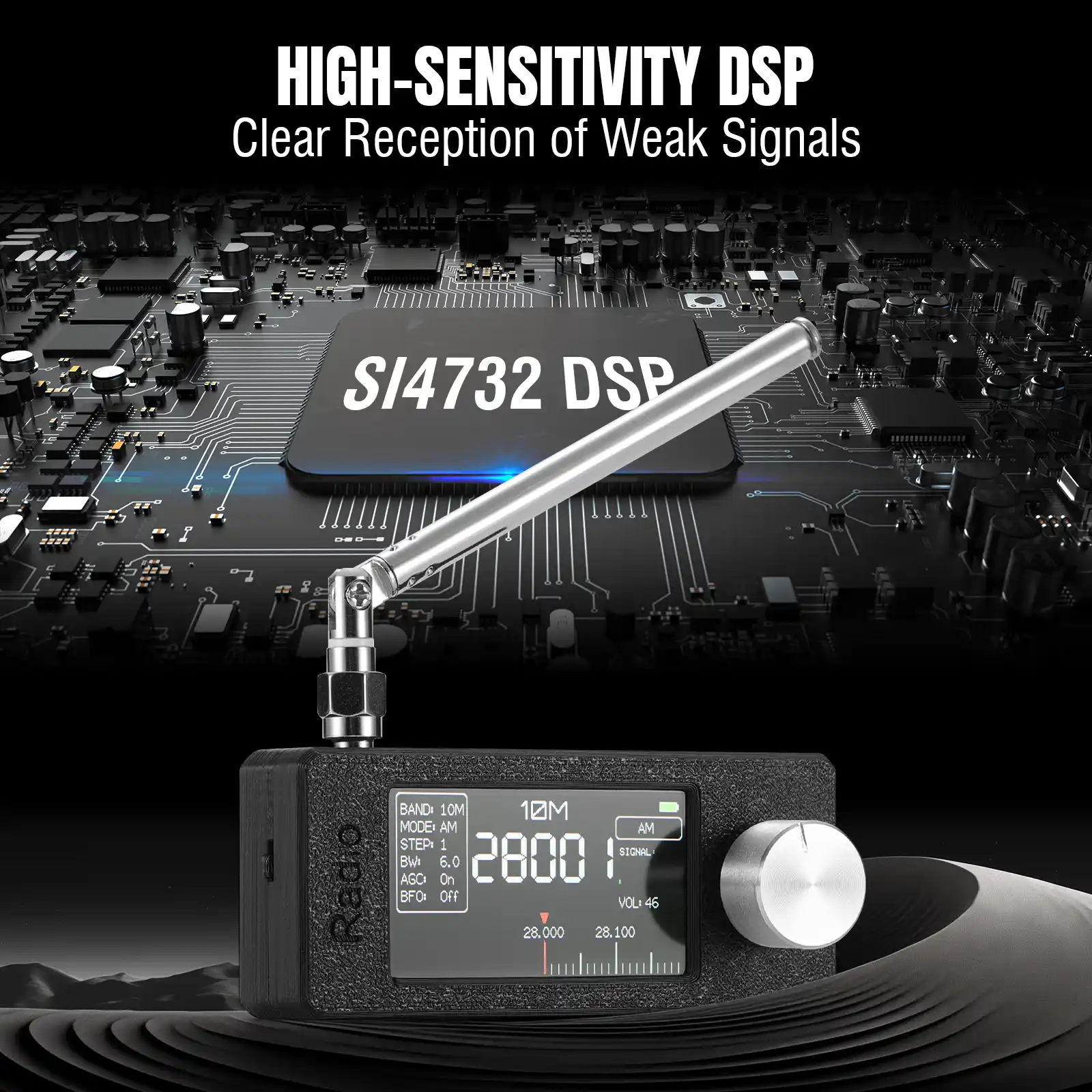

Advanced Si4732 & ESP32 Platform
Featuring the Si4732 DSP chip and ESP32 module, this radio offers high sensitivity, precise signal processing, and full SSB support—professional-level performance in a compact handheld design.

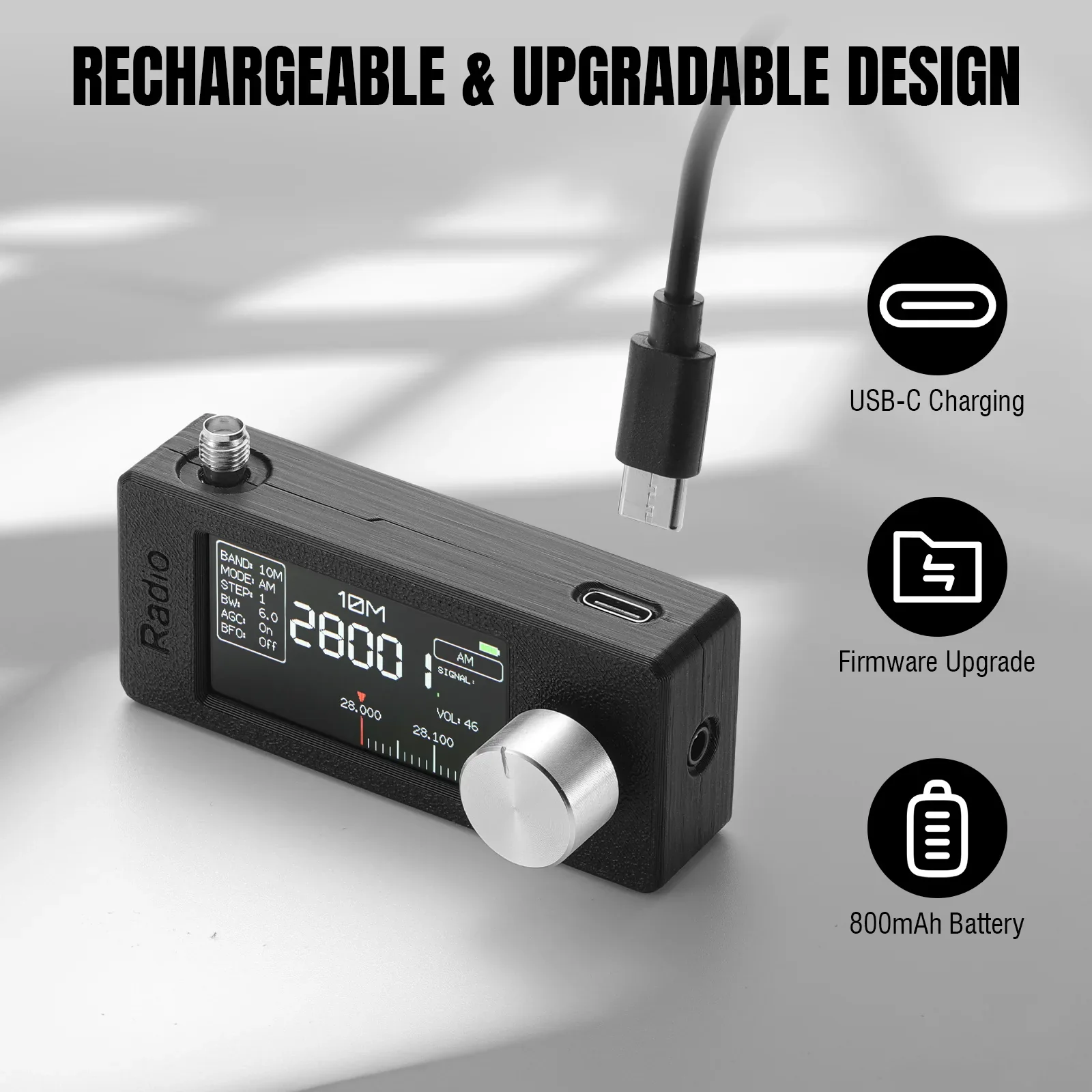

Smart USB-C Power
The built-in 800mAh battery delivers reliable runtime in a compact form, while the versatile USB-C port enables fast charging and easy firmware upgrades—keeping your device powered, portable, and up to date.

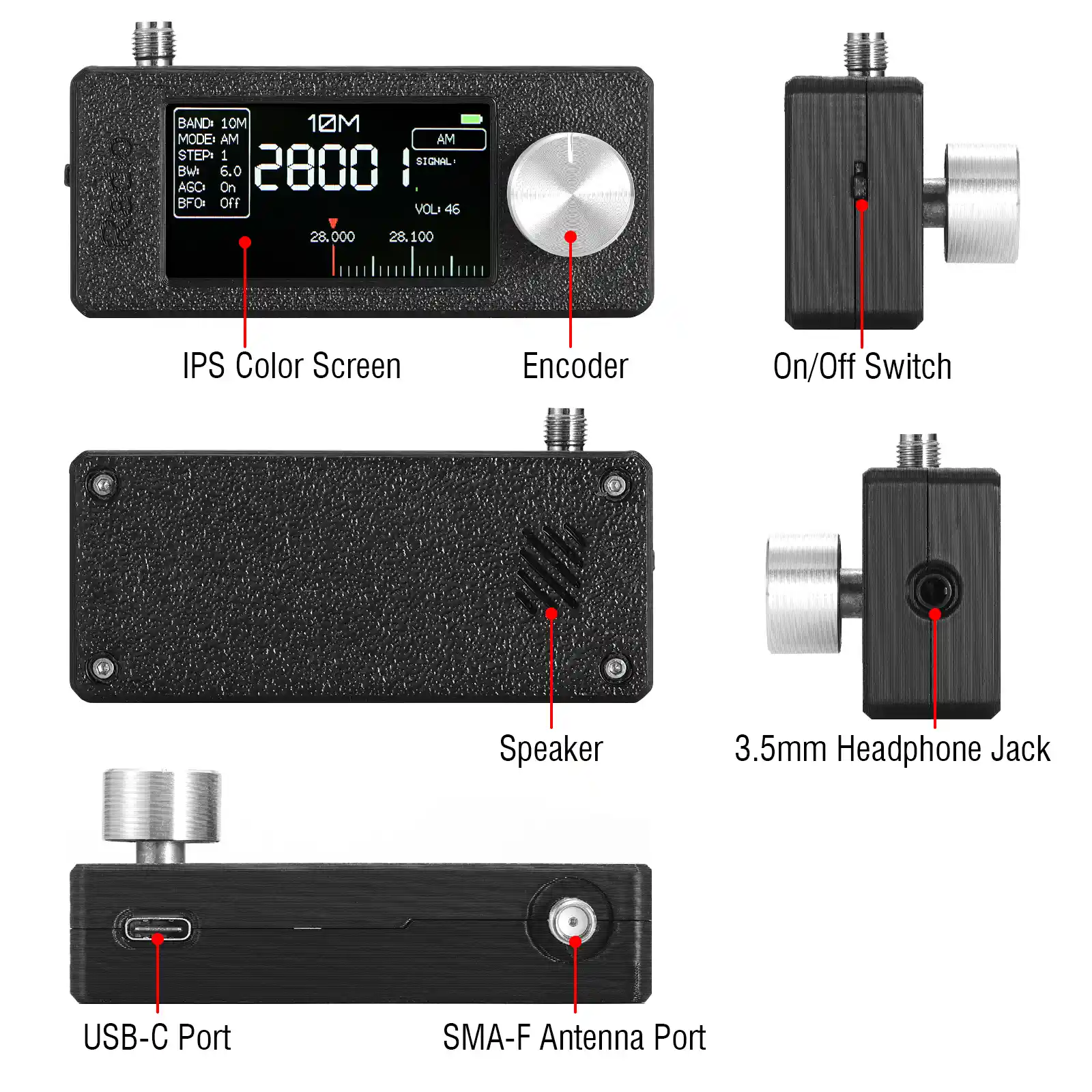

Specifications：
Supported Bands: FM, AM, MW, LW, SW, VHF, and CB Bands
Demodulation Modes: AM, FM, LSB, USB (Single Sideband/SSB)
DSP Chip: Si4732
Display: 1.9-inch IPS Color Screen
Battery Capacity: 800mAh
Charging Port: USB-C (Supports Firmware Upgrades)
Antenna Port: SMA Female Connector
Audio Output: 3.5mm Headphone Jack

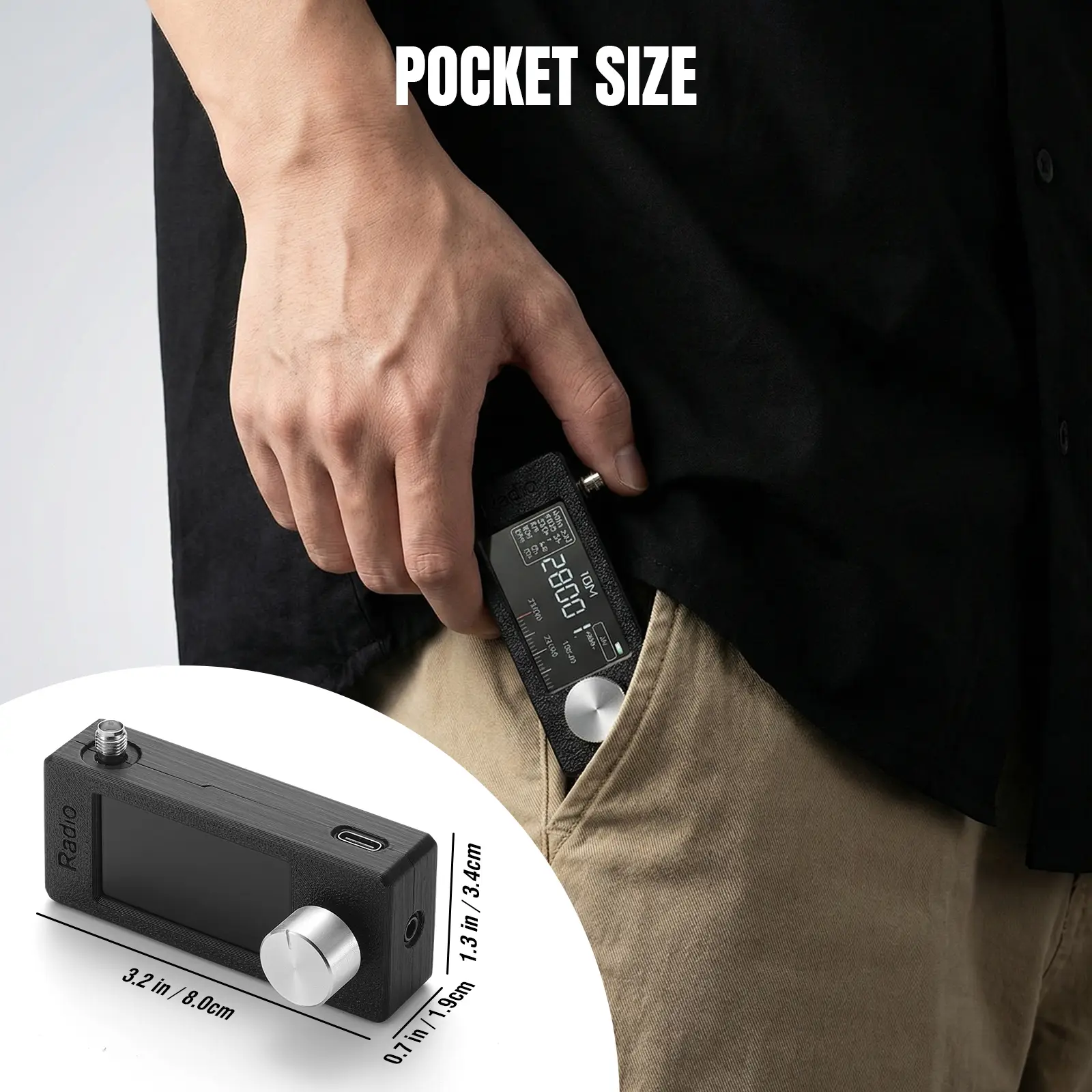

Dimensions: 3.1 x 1.4 x 0.8 inches (80 x 34 x 19 mm)
Net Weight: 4.2 oz (120g)
QA:
Q: How do I change bands and tune frequencies?
A: Use the large rotary tuning knob to switch between bands, then rotate it to precisely adjust the frequency for quick and accurate tuning.
Q1: How long does the battery last?
A: The built-in 800mAh lithium battery provides up to 10 hours of playtime per charge. USB-C charging makes it easy to recharge with a power bank or phone charger
Q2: Can it be used with headphones?
A: Yes! The Raddy Mini Radio features a built-in headphone amplifier and is compatible with headphones. You can connect headphones through the 3.5mm headphone jack to enjoy private listening.

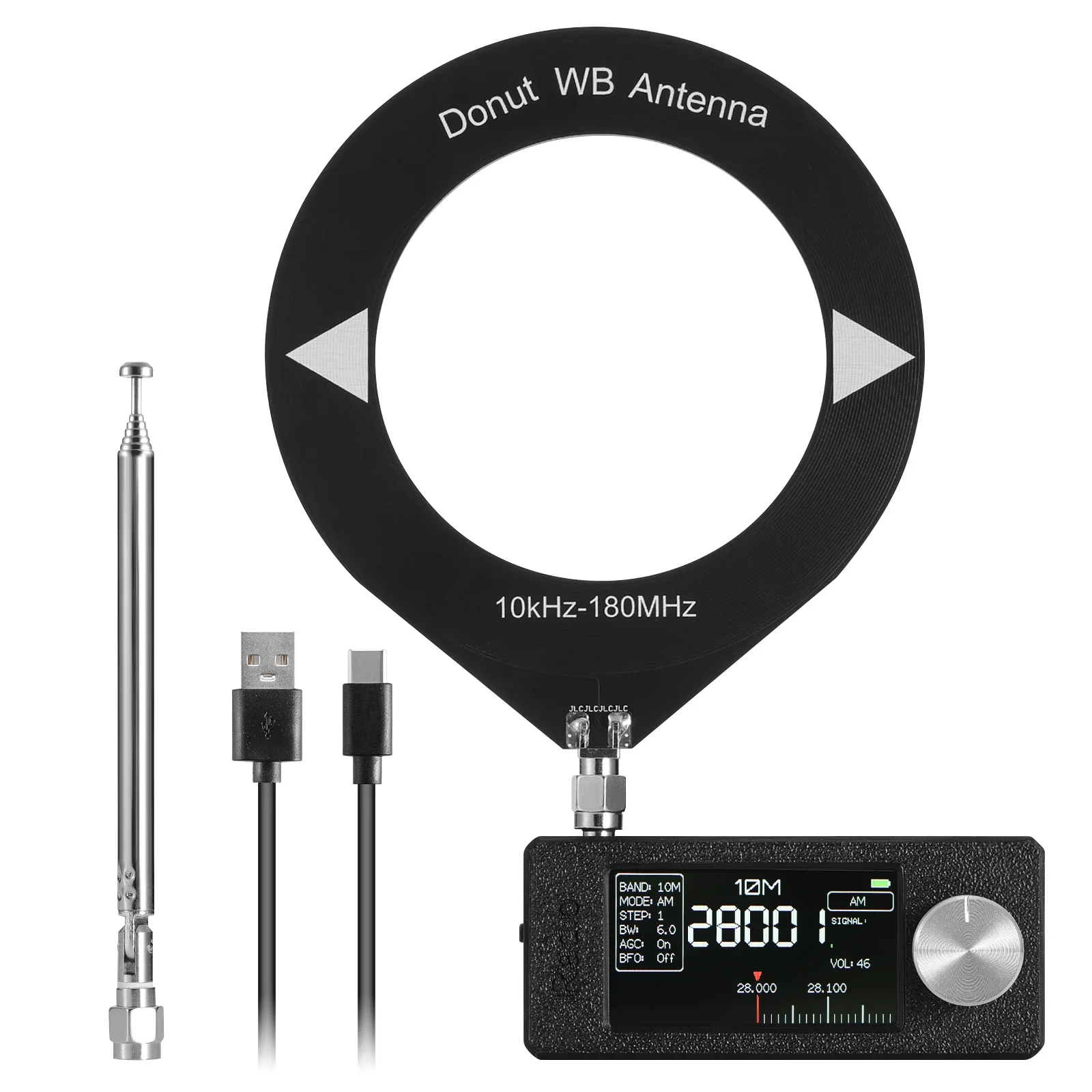

What’s in the box?
1 x Mini Radio
1 x SMA Telescopic Antenna
1 x Donut Antenna
1 x USB-C Data Cable
Original: $49.99
-65%$49.99
$17.50More Images
Raddy Mini Radio All-Band DSP Radio | Si4732 Chip | FM/SW/MW/VHF/CB Receiver | LSB/USB Modes | Headphone Amplifier | 1.9" Color Screen | Pocket Size | Firmware Upgrade
The Raddy Mini Radio integrates a high-performance Si4732 DSP chip with a dual-core ESP32 module, delivering exceptional sensitivity and rock-solid stability across AM, FM, MW, SW, VHF, and CB bands.
Engineered for precision, its Hi-Z input circuit and dedicated headphone amplifier work in tandem to provide crystal-clear audio and superior anti-interference—even when navigating the most challenging weak-signal conditions. The vibrant 1.9-inch IPS color display offers an intuitive, easy-to-read interface, while the USB-C port ensures your device stays future-proof with seamless firmware upgrades.
Powerful yet pocket-sized, the Raddy Mini Radio is the ultimate all-in-one receiver for enthusiasts who refuse to compromise on reception quality while on the go.
Dual-Antenna Enhanced Reception
Features a telescopic antenna and a dedicated Donut antenna to improve reception across AM/FM/LW/MW/SW/VHF/CB bands, delivering clearer and more stable signals across a wide range of frequencies.
Advanced Si4732 & ESP32 Platform
Featuring the Si4732 DSP chip and ESP32 module, this radio offers high sensitivity, precise signal processing, and full SSB support—professional-level performance in a compact handheld design.
Smart USB-C Power
The built-in 800mAh battery delivers reliable runtime in a compact form, while the versatile USB-C port enables fast charging and easy firmware upgrades—keeping your device powered, portable, and up to date.
Specifications：
Supported Bands: FM, AM, MW, LW, SW, VHF, and CB Bands
Demodulation Modes: AM, FM, LSB, USB (Single Sideband/SSB)
DSP Chip: Si4732
Display: 1.9-inch IPS Color Screen
Battery Capacity: 800mAh
Charging Port: USB-C (Supports Firmware Upgrades)
Antenna Port: SMA Female Connector
Audio Output: 3.5mm Headphone Jack
Dimensions: 3.1 x 1.4 x 0.8 inches (80 x 34 x 19 mm)
Net Weight: 4.2 oz (120g)
QA:
Q: How do I change bands and tune frequencies?
A: Use the large rotary tuning knob to switch between bands, then rotate it to precisely adjust the frequency for quick and accurate tuning.
Q1: How long does the battery last?
A: The built-in 800mAh lithium battery provides up to 10 hours of playtime per charge. USB-C charging makes it easy to recharge with a power bank or phone charger
Q2: Can it be used with headphones?
A: Yes! The Raddy Mini Radio features a built-in headphone amplifier and is compatible with headphones. You can connect headphones through the 3.5mm headphone jack to enjoy private listening.
What’s in the box?
1 x Mini Radio
1 x SMA Telescopic Antenna
1 x Donut Antenna
1 x USB-C Data Cable
