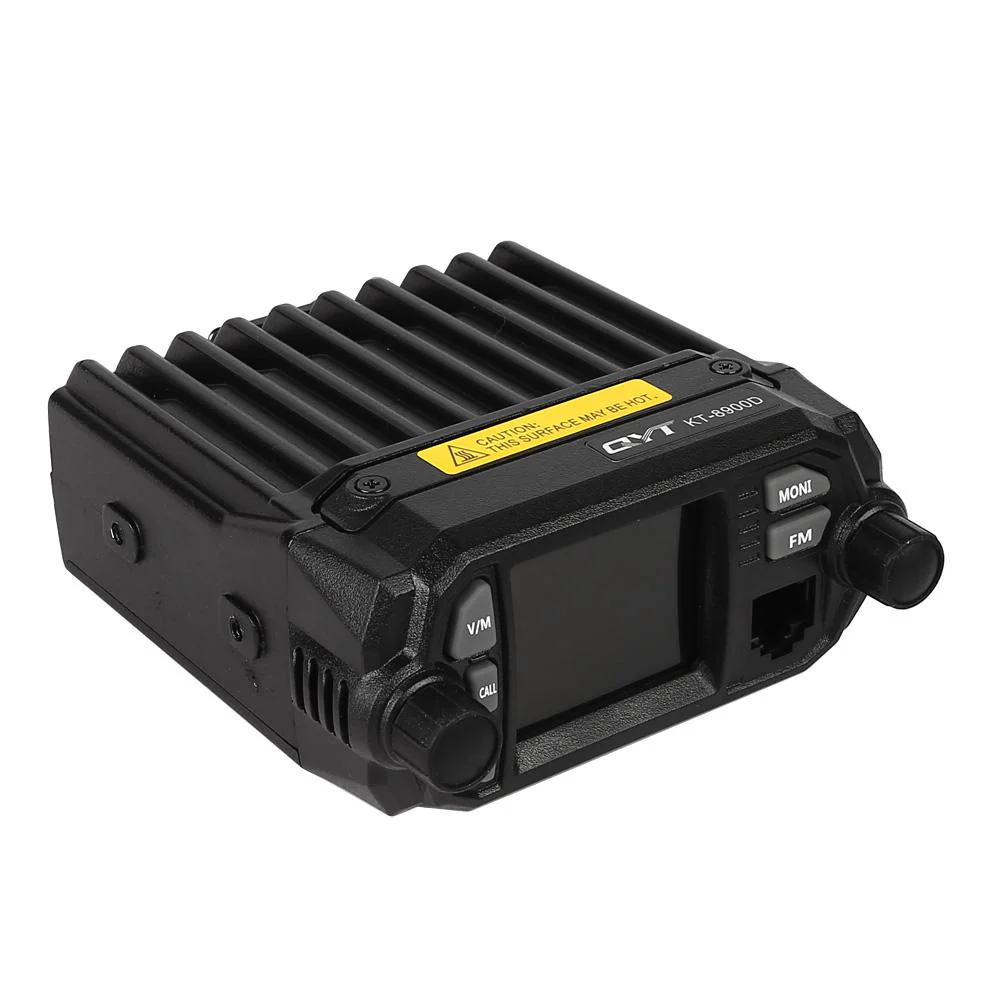

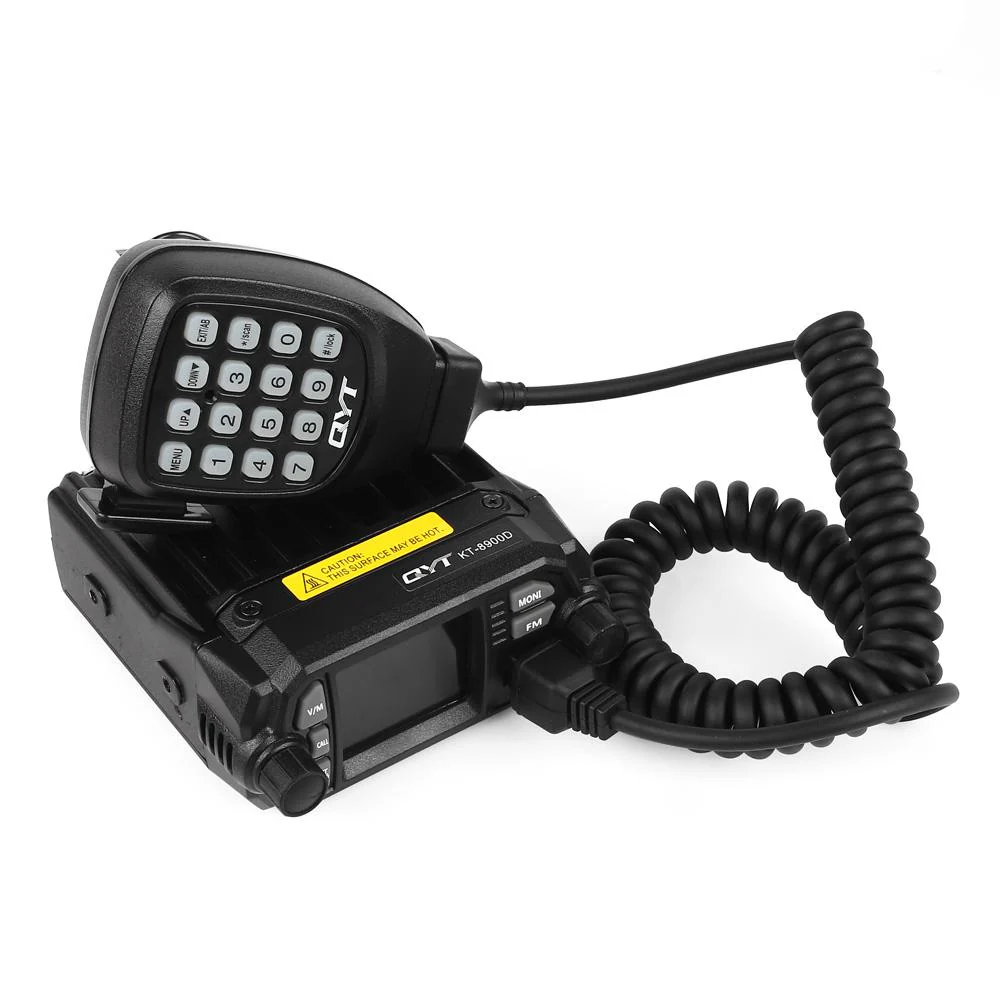

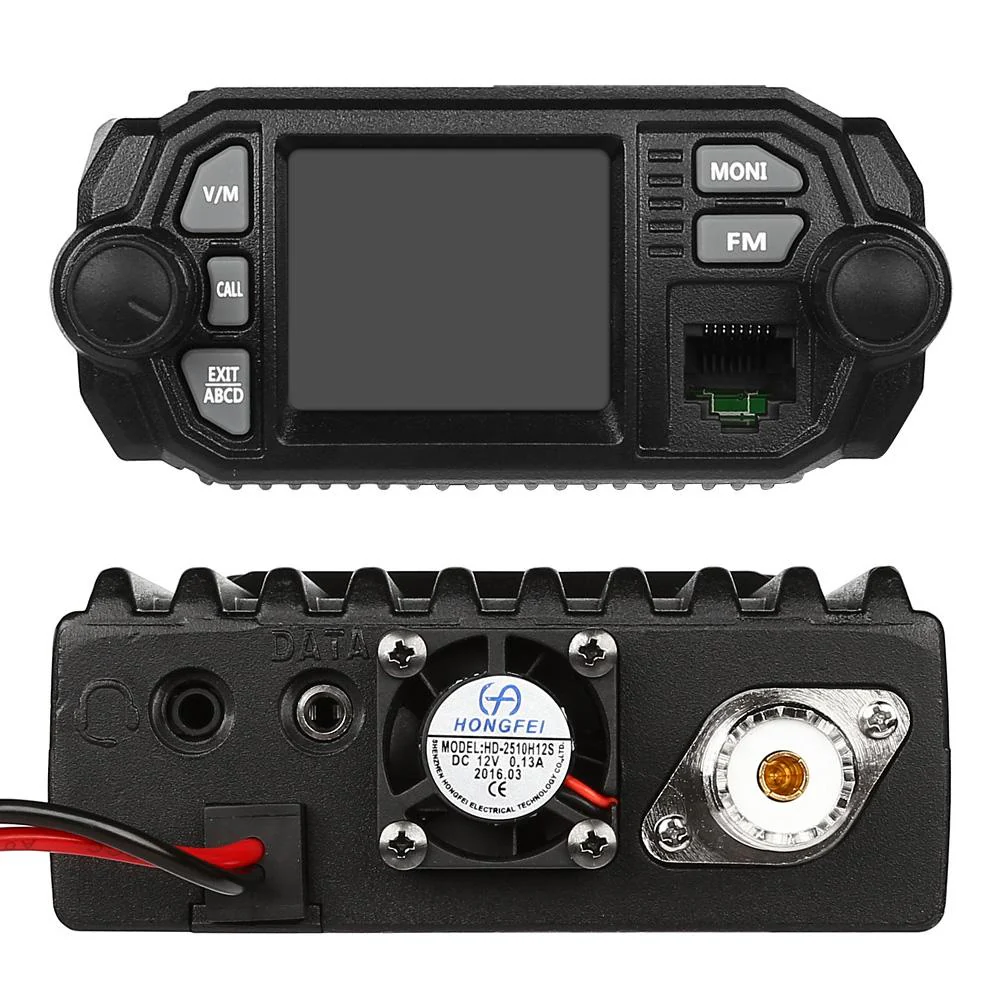

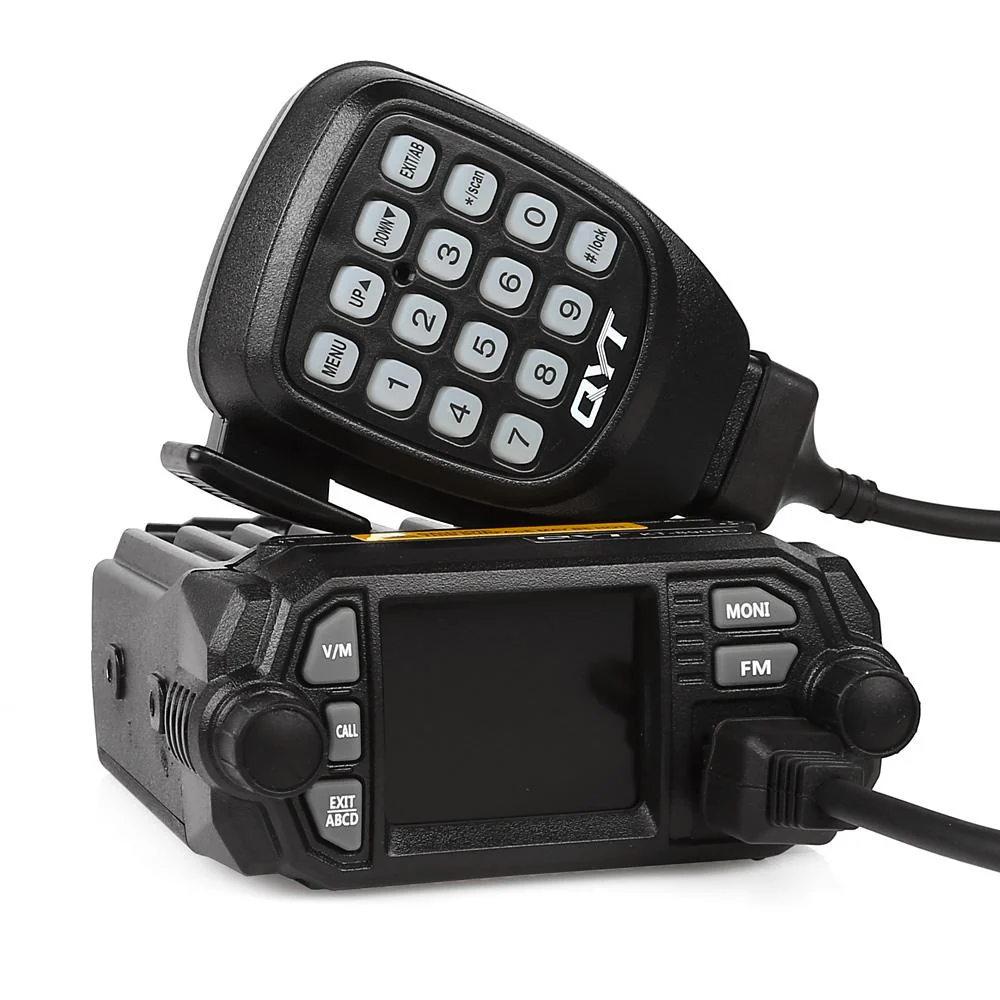

QYT KT-8900D 25W Dual Band Quad Standby Mobile Transceiver [DISCONTINUED]

Features
Dual Band,Quad-standby
25W Output Power
External speaker/PTT
Mini Size
PC Program
Remote Stun,Remote Activate,Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Long-distance Communication
FM Radio
Alarm Function
Monitor


Specifications

General
Frequency Range    VHF:136-174MHz UHF:400-480MHz
Number of Channel     200
Channel Spacing    25KHz 20KHz 12.5KHz
Phase lock step    5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
Working Voltage    13.8V DC±15%
Squelch way    CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability     ±2.5ppm
Operating Temperature    -20℃~+60℃
Dimension(W x H x D)    98(W) x 43(H) x 126(D)mm / [3.9(W)x1.7(H)x5(D)in]
Weight    910g

Receiver
Broadband    Narrow band
Sensitivity    ≤ 0.25μV    ≤ 0.35μV
Channel choice    ≥70dB    ≥60dB
Intermodulation    ≥65dB    ≥60dB
Spurious Rejection    ≥70dB    ≥70dB
Audio response    +1~ -3dB(0.3~3KHz)    +1~ -3dB(0.3~2.55KHz)
Signal to noise ratio    ≥45dB    ≥40dB
Audio distortion    ≤5%
Audio output power    ≥2W@10%

Transmitter
Broadband    Narrow band
Output power    25W/20W(VHF/UHF)
Modulation Mode    16KΦF3E    11KΦF3E
Channel Power    ≥70dB    ≥60B
Signal to noise ratio    ≥40dB    ≥36dB
Parasitic harmonic    ≥60dB    ≥60dB
Audio response    +1~ -3dB(0.3~3KHz)    +1~ -3dB(0.3~2.55KHz)
Audio distortion    ≤5%


Functions

• Four Full Color Display
• Time-out-timer(TOT)
• Front panel switches & controls
• DTMF /2 Tone/5 Tone
• Input frequency directly through MIC
• FM Radio
• 2100Hz/1750Hz/1450Hz/1000Hz (signaling for activating repeater)
• Large LCD display
• CTCSS&DCS Encode/Decode
• Scanning function
• Offset frequency and offset direction setting
• Busy channel lock
• Squelch
• Remote Alarm
• High/ Low power selectable
• Wide(25KHz)/Narrow(12.5KHz) bandwidth selective
• Frequency step 2.5/5/6.25/10/12.5/25KHz
• High power vehicle radio,transmit and receive further distance
• Reset

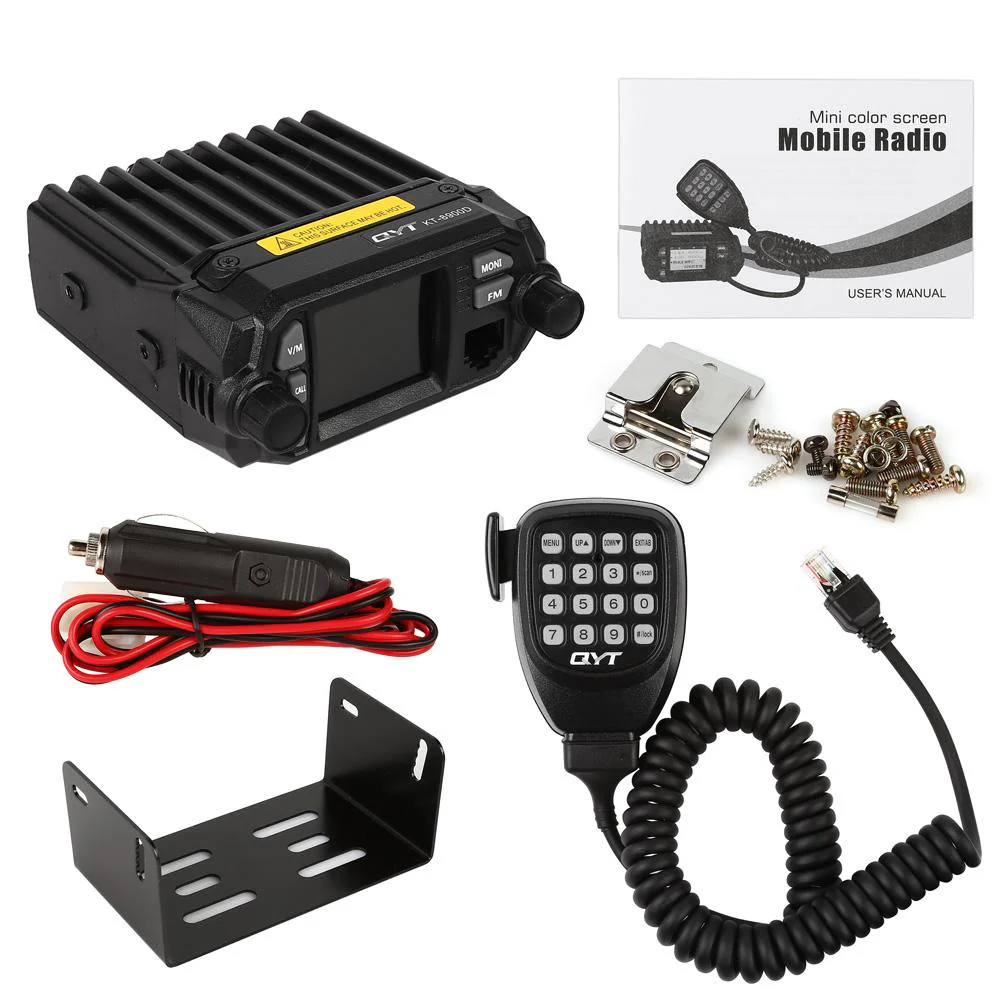

Package Content

1 x QYT KT-8900D Car Mobile Transceiver
1 x English User’s Manual
1 x Car Power Cable
1 x Mounting Bracket

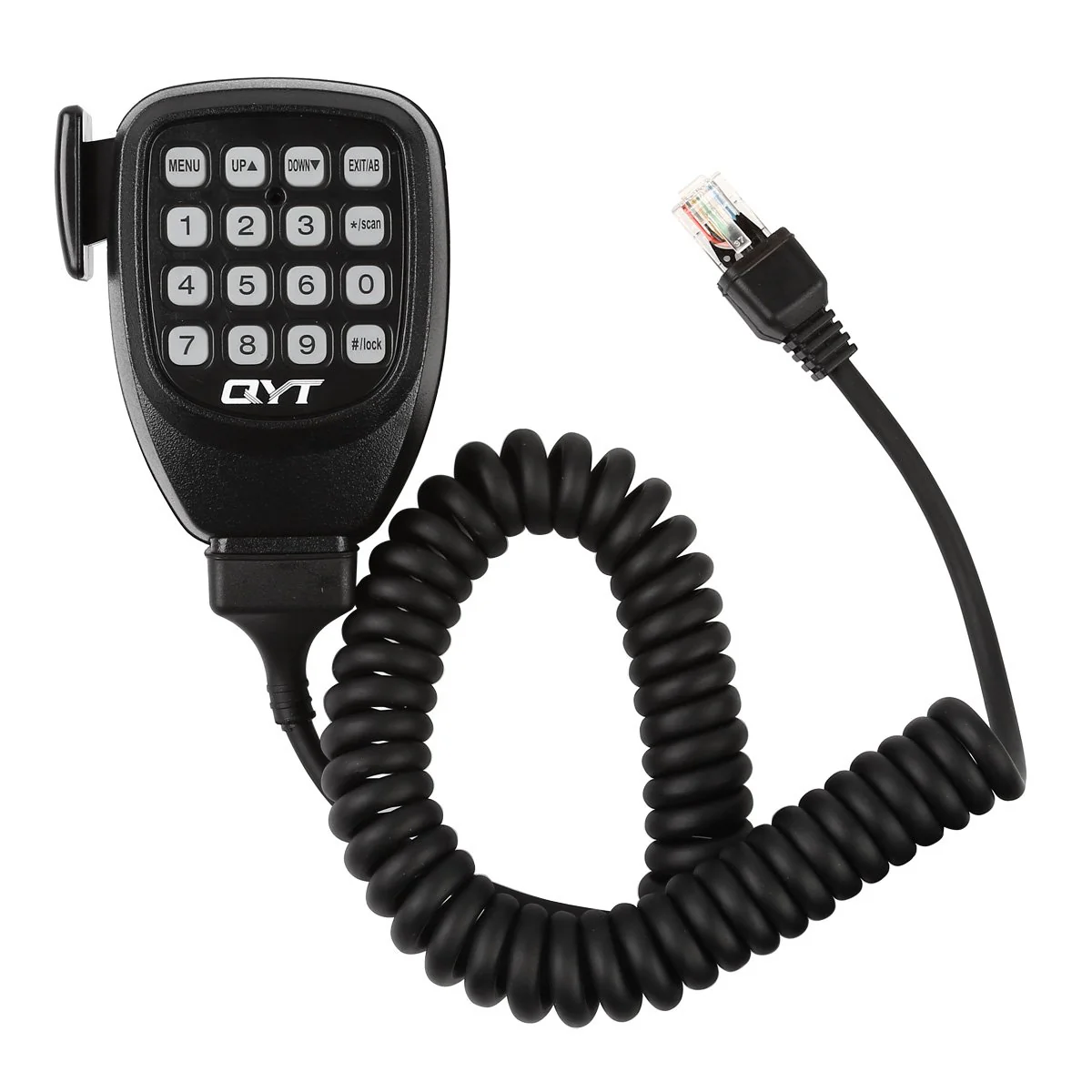

1 x Microphone
1 x Screw
1 x Fuse
