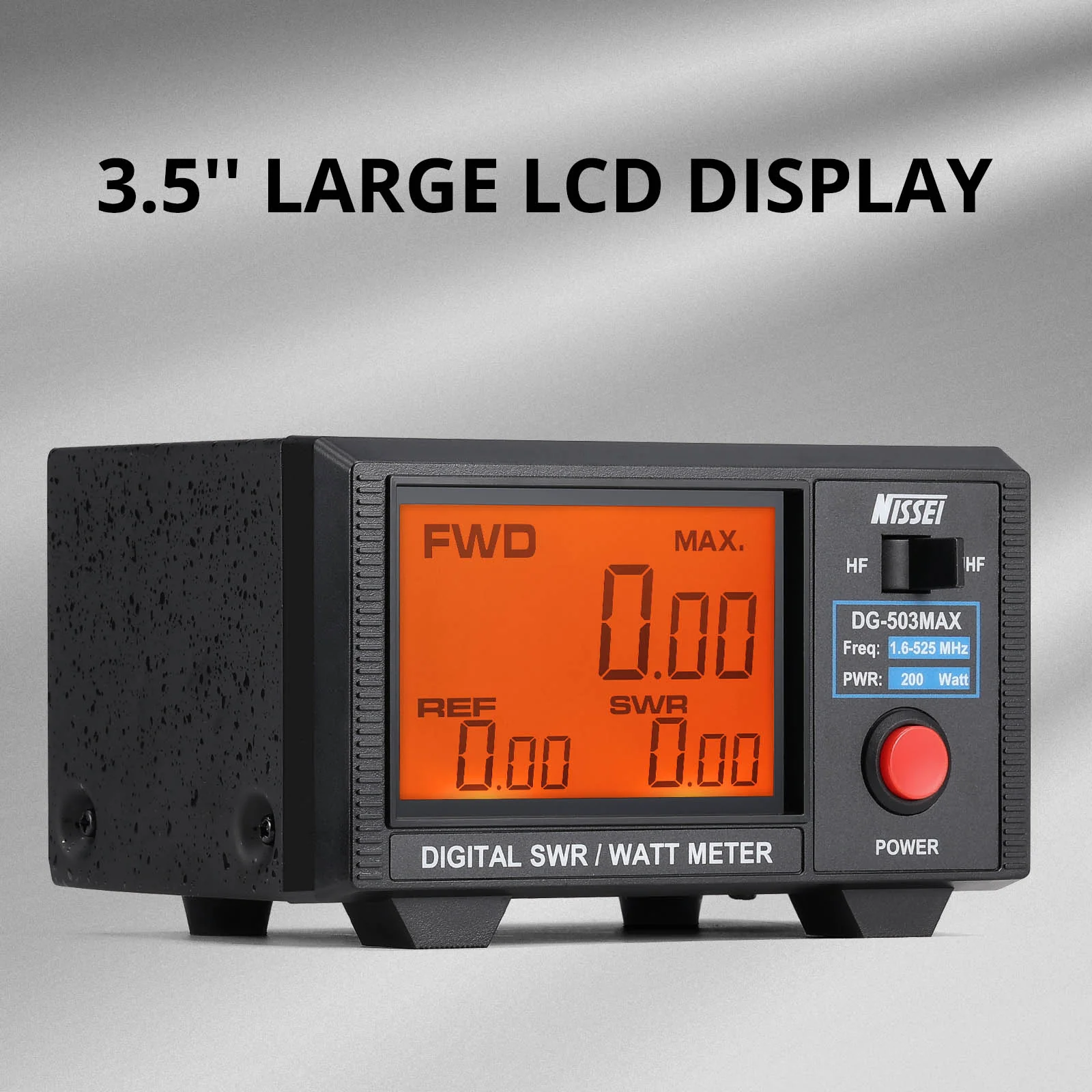

NISSEI DG-503 / DG-503MAX SWR Meter | HF/Dual Band | 3.5" LCD Screen | Max 200W | CW/FM/FDMA/DMR/AM/SSB

Specifications

DG-503MAX

DG-503

https://www.radioddity.com/products/nissei-swr-meter

https://www.radioddity.com/products/nissei-swr-meter

Frequency Range

Measurement (Analog mode)

Measurement (MAX mode)

Calibration Point

Accuracy

Minimum Power for SWR

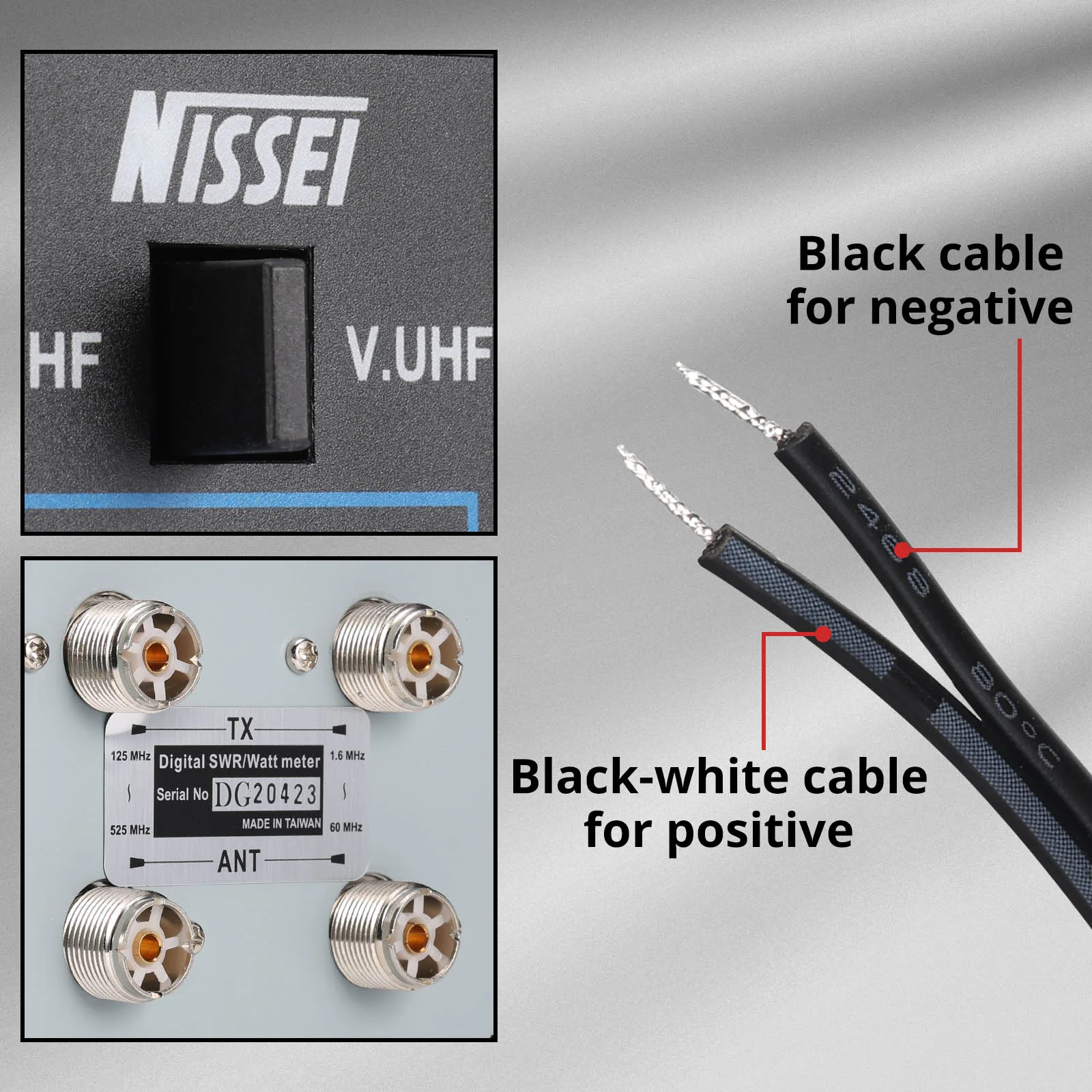

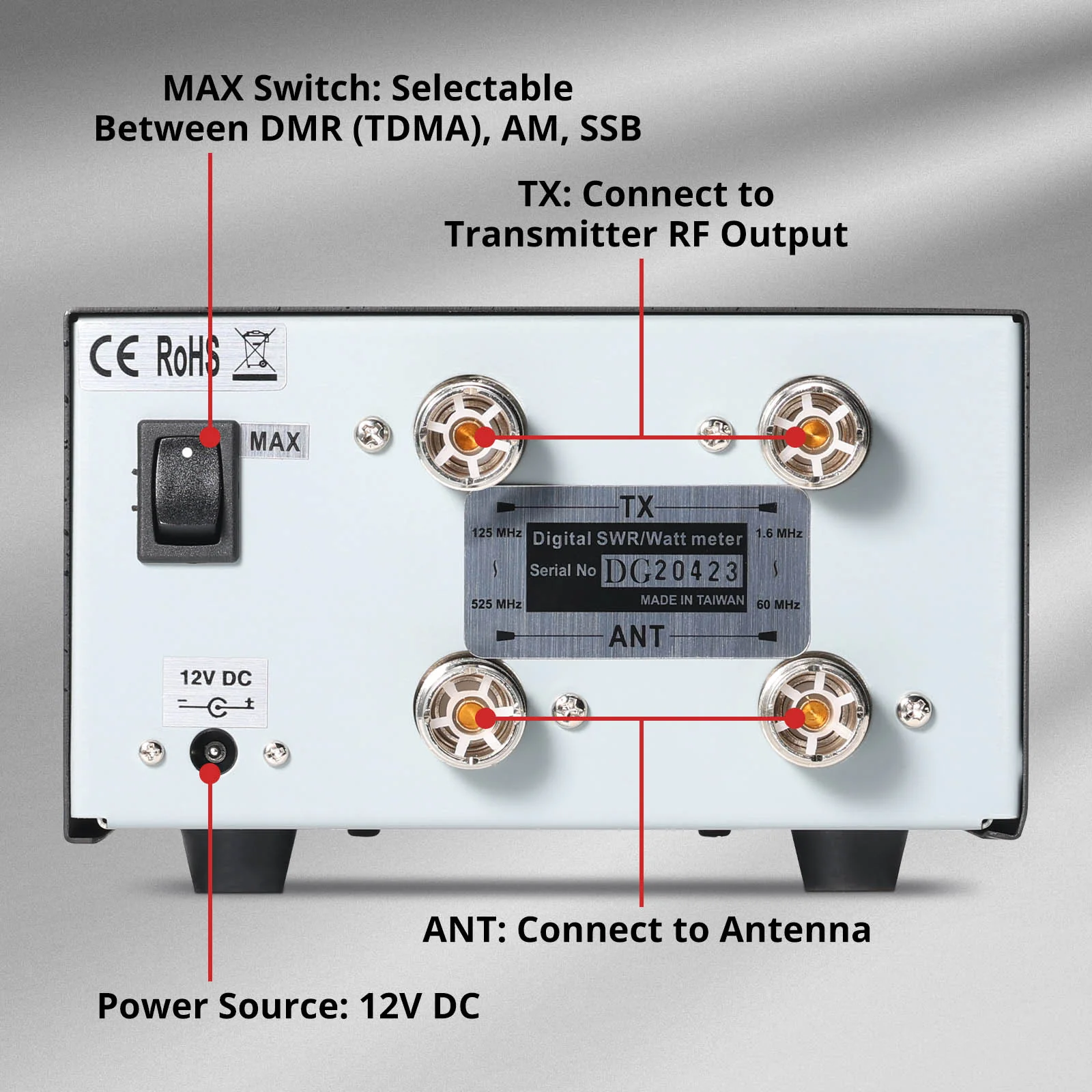

Input/Output Connector

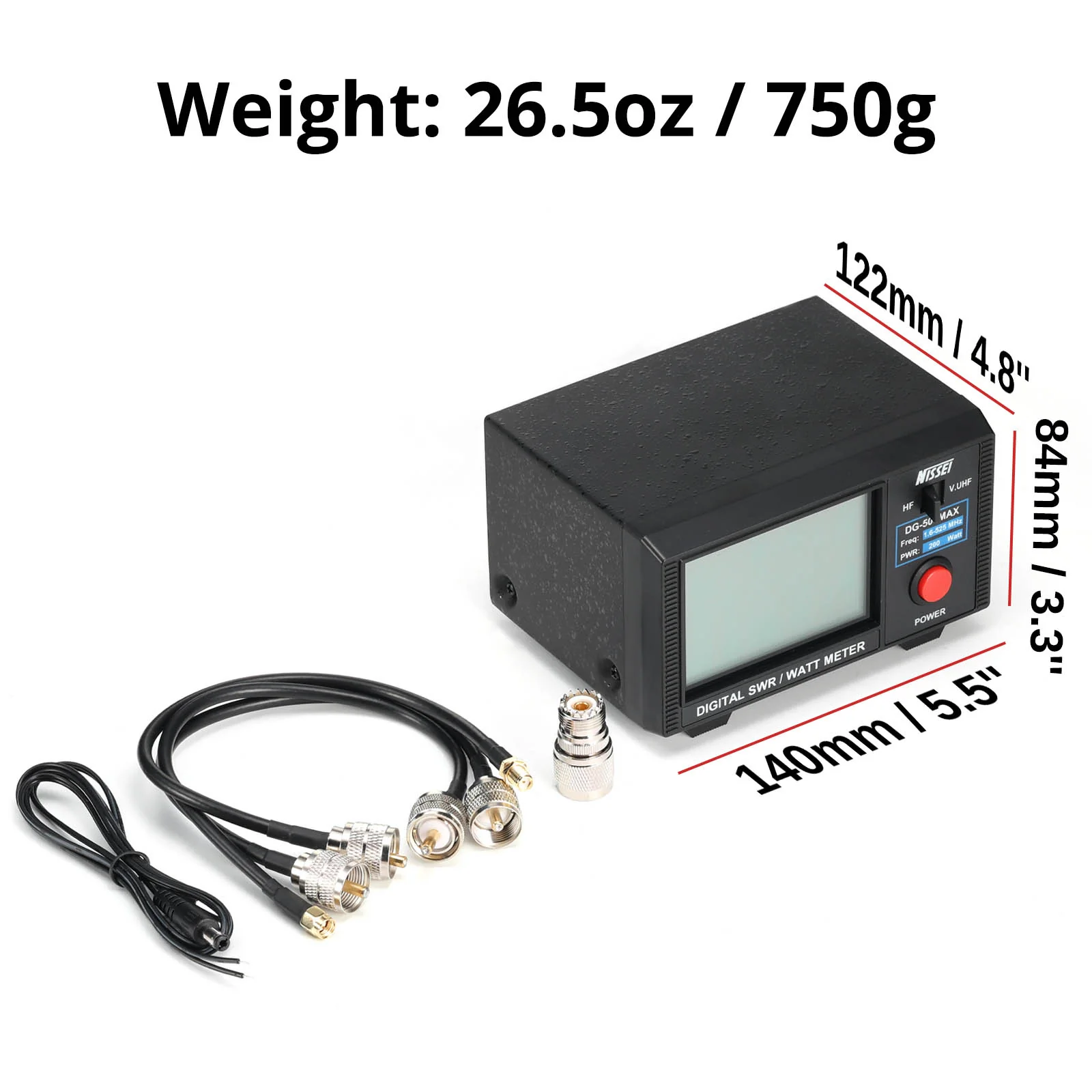

Weight (Net)

Insertion Loss

Testing Function

Input/Output Impedance

Dimension (W/H/D) mm

Accessories

1.6-60 MHz/125-525 MHz@@CW, FM, FDMA@@DMR (TDMA), AM, SSB@@28 / 145 / 435 MHz@@0 - 200W@@(+/- 5%)@@SO239 (N-female option)@@750 g@@Less than 0.1 dB@@Fwd/Ref Power & VSWR ratio@@50 Ohm@@140 x 84 x 122@@Operation Manual, 12V DC Wire

1.6-60 MHz/125-525 MHz@@CW, FM, FDMA@@ / @@28 / 145 / 435 MHz@@0 - 200W@@(+/- 5%)@@SO239 (N-female option)@@750 g @@Less than 0.1 dB@@Fwd/Ref Power & VSWR ratio@@50 Ohm@@140 x 84 x 122@@Operation Manual, 12V DC Wire

What’s in the box?
DG-503:
1 x DG-503 SWR/Watt Meter
1 x SO239 to PL259 Female Coax Connector
1 x PL259 Male to PL259 Male Coax Cable
1 x PL259 Male to SMA-female Coax Cable
1 x PL259 Male to SMA-male Coax Cable
1 x 12V DC Cable
1 x User Manual

DG-503MAX:
1 x DG-503MAX SWR/Watt Meter
1 x SO239 to PL259 Female Coax Connector
1 x PL259 Male to PL259 Male Coax Cable
1 x PL259 Male to SMA-female Coax Cable
1 x PL259 Male to SMA-male Coax Cable
1 x 12V DC Cable
1 x User Manual
