NanoVNA-F V2 Antenna Analyzer | 50KHz to 3GHz | 4.3-Inch Touch Screen | 5000mAh Battery
With a wide frequency range from 50âŻkHz to 3âŻGHz, the NanoVNA-F V2 is an essential tool for a broad spectrum of RF applications. Whether you're debugging duplexers, measuring S-parameters, analyzing SWR, or mapping phase response, it delivers reliable accuracy. Boasting an impressive dynamic range of 80âŻdB, it ensures precise readings for both professionals and hobbyists alike, making it a versatile must-have for anyone working in RF diagnostics and analysis.
| General Specifications | |
| Frequency Range: | 50kHz~3GHz |
| RF output power: | -10dBm[50kHz - 140MHz]
-9dBm[140MHz - 1GHz] -12dBm[1GHz - 2GHz] -14dBm[2GHz - 3GHz] |
| Frequency accuracy: | <±0.5ppm |

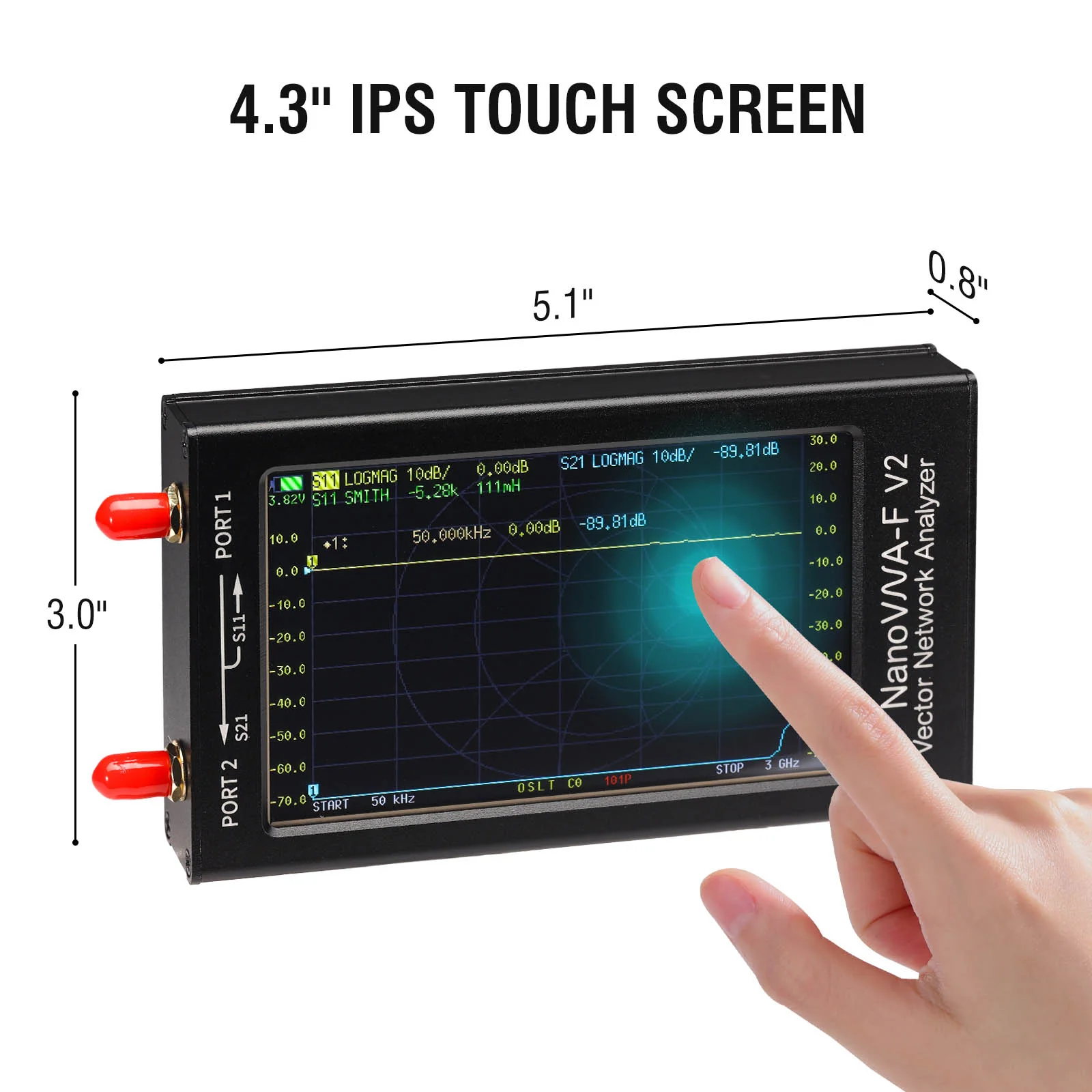

| Display: | 4.3 inches IPS LCD[Resolution: 800*480] |
| Sweep points: | 201[11-201 configurable] |
| Traces: | 4 |
| Markers: | -4 |
| Calibration storage: | 7 |
| Sweep time: | 1.5s/101 points |
| Operation temperature: | 0â-45â |
| General Specifications | |
| Touch screen: | RTP |
| S21 dynamic range: | 70dB[50kHz - 1.5GHz ]
60dB[1.5GHz - 3GHz ] |
| S11 dynamic range: | 50dB[50kHz - 1.5GHz ]
40dB[1.5GHz - 3GHz ] |

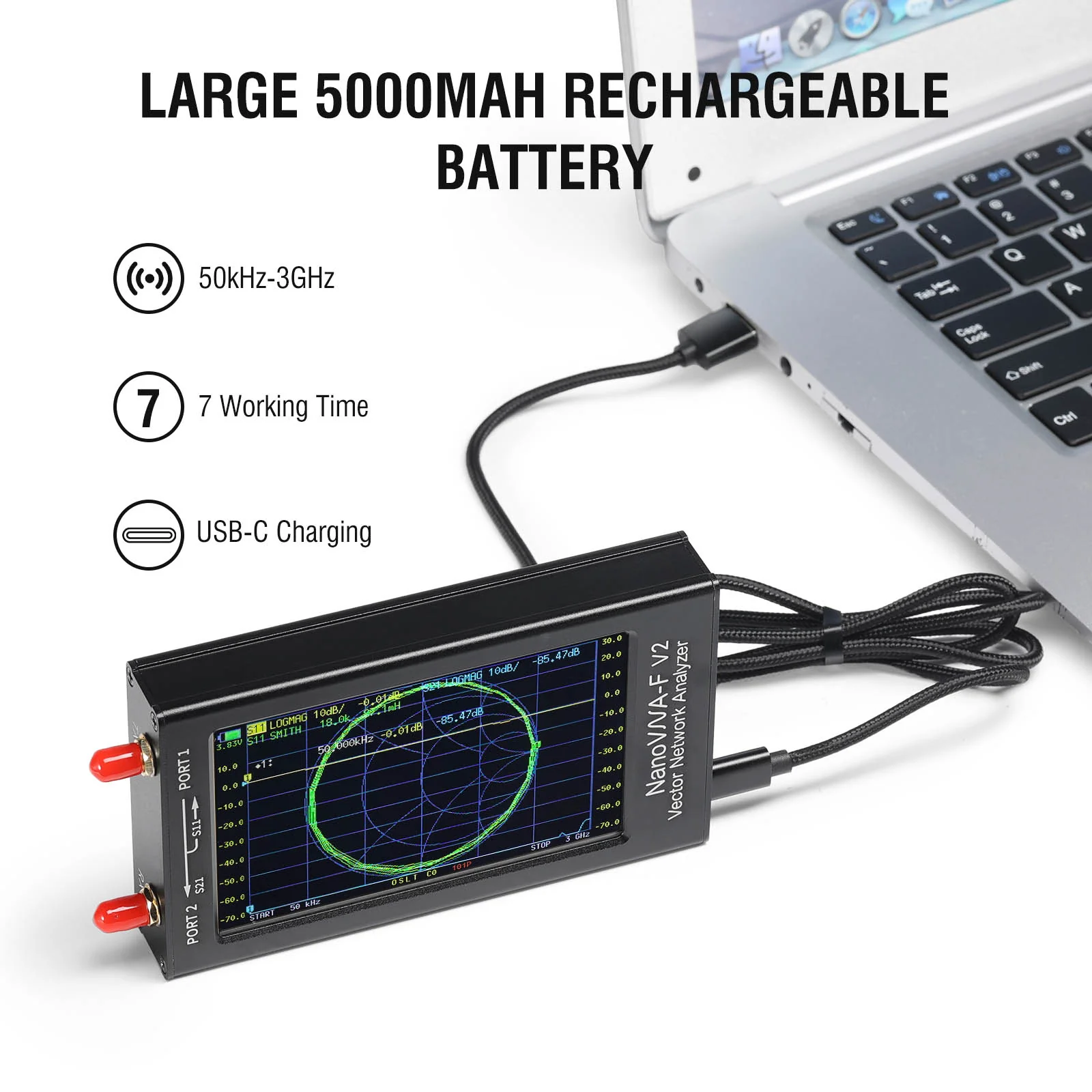

| Battery: | 3.7V 5000mAh |

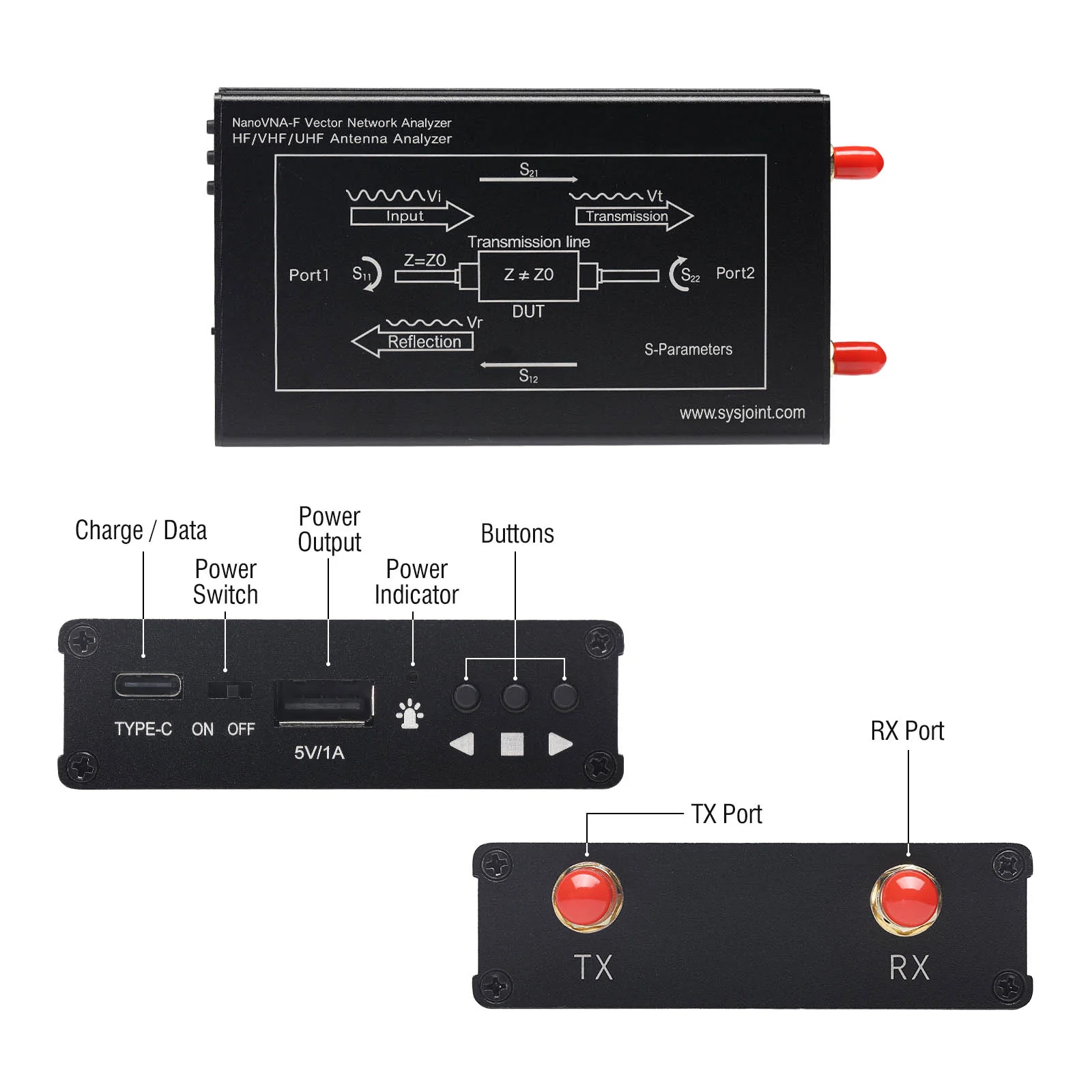

| Charging/Data port: | USB Type-C |
| Charging voltage: | 4.7V - 5.5V |
| Power output: | USB-A 5V/1A |
| RF connector: | SMA |
| Dimensions: | 130*75*22mm |
| Shell material: | Aluminum alloy |
Note: All specifications are typical values measured under standard conditions. Actual performance may vary depending on environmental factors.

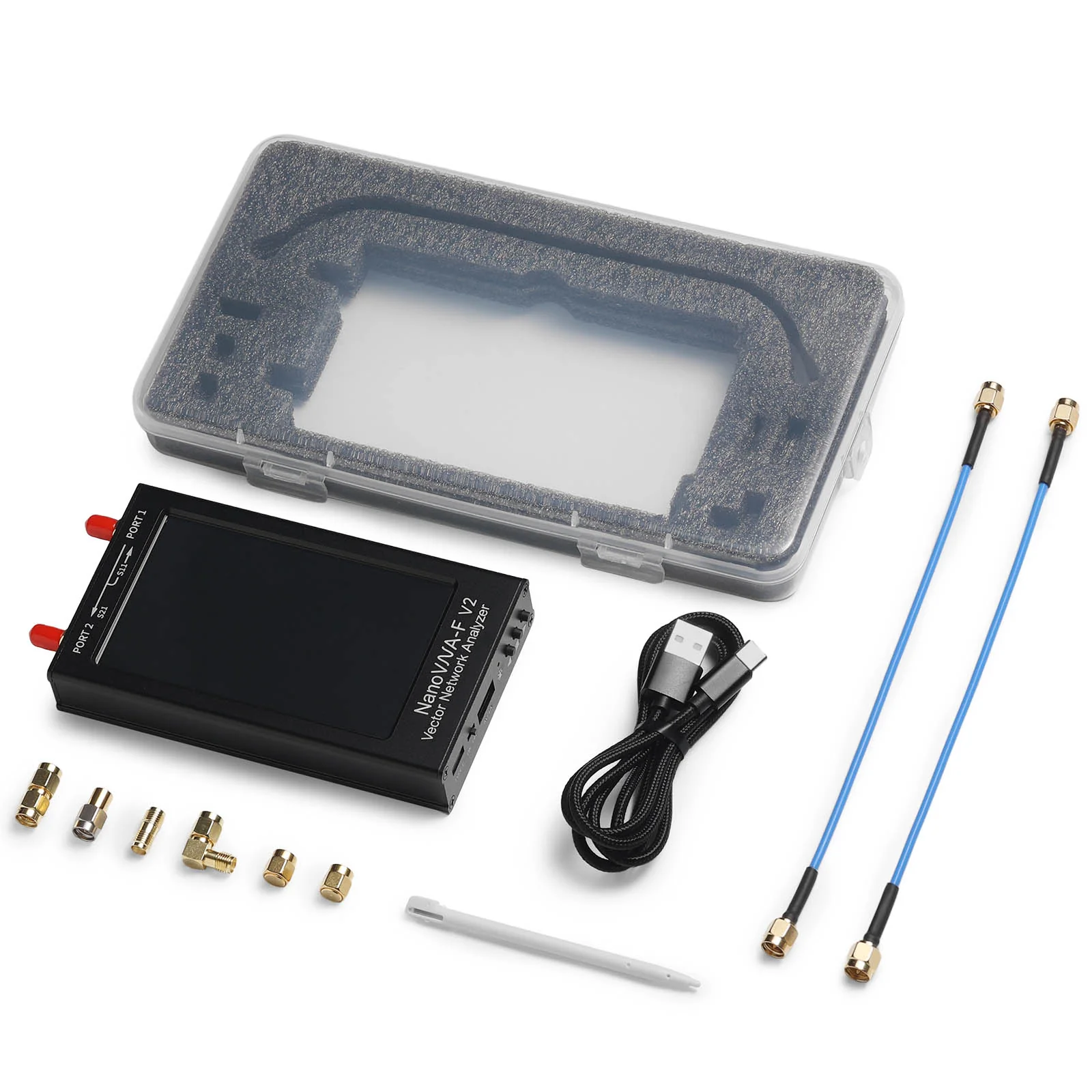

Whatâs in the box?
1 x NanoVNA-F V2
1 x SMA Open Calibration Standard
1 x SMA Short Calibration Standard
1 x SMA Load Calibration Standard
2 x SMA Male-to-Male RG405 Coaxial Cable
1 x SMA Female-to-Female Adapter (SMA-KK)
1 x SMA Male-to-Male Adapter (SMA-JJ)
1 x SMA Right Angle Male to Female Adapter (SMA-JKW)
1 x USB-C Cable
1 x White Touchscreen Pen
Original: $149.99
-65%$149.99
$52.50More Images
