KT-8900R Tri Band 25W Car Mobile Radio [DISCONTINUED]

Functions:

Tri-band, dual display, dual standby & Dual Track
Dual frequency standby setting(TDR)
Scrambling function
Channel scan function
Busy channel lock-out (BCL)
Time-out timer (TOT)
Transmit over alarm setting(TOA)
CTCSS/DCS encoding and decoding
PC software programmable
Broadband (Wide)/Narrow band (Narrow) selectable
Frequency Step Selectable 5/6.25/10/12.5/25KHz
High/low power selectable
Function key guide voice(BEEP)
Tri-color background light selectable
Level Threshold “Squelch” adjustable from 0 to 9
Operation for manual channel memory and delete
Memory FM radio channel
Automatic lock-out
Display mode setting
Optional signaling setting
Transmit transit signal
PTT ID Setting
DTMF signal setting
DTMF signal
Speaker mute setting(SPMUTE)
Monitor function
Remote stun
Remote kill
Turn on function
Alarm function
DTMF transmit by Call Key setting
2 tone and 2 tone signal transmit by Call Key setting

Specification:

General
 Frequency range     VHF: 136-174 mhz, 240-260 MHz
 UHF: 400-480 MHz
 FM : 76-108.900 MHz
 Output power     25W/20W(VHF/UHF)
 Channel capacity     200
 Channel Spacing     25/20/12.5KHz
 Frequency Spacing     5/6.25/10/12.5/15/25KHz
 Operating Voltage     13.8V DC±15%
 Squelch way     CTCSS/DCS/5Tone/2Tone/DTMF
 Frequency stability     ±2.5ppm
 Working Temperature     -20°C~+60°C
 Color     Black
 Dimension(Exclude antenna)     98(W)x35(H)x118(D)mm
 Weight(Include Battery)     408g

Transmitter
 Parameter     Broadband     Narrowband
 Sensitivity     <=0.25µV     <=0.35µV
 Channel choice     >=70dB     >=60dB
 Intermodulation     >=65dB     >=60dB
 Suprious Rejection     >=70dB     >=70dB
 Audio response     +1~-3dB(0.3~3KHz)     +1~-3dB(0.3~2.55KHz)
 Signal to noise ratio     >=45dB     >=40dB
 Audio Distortion     <=5%
 Audio output power     >=2W@10%

Receiver
 Parameter     Broadband     Narrowband
 Modulation Mode     16KØF3E     11KØF3E
 Channel Power     >=70dB     >=60dB
 Signal to noise ratio     >=40dB     >=36dB
 Parasitic harmonic     >=60dB     >=60dB
 Audio response     +1~-3dB(0.3~3KHz)     +1~-3dB(0.3~2.55KHz)
 Audio distortion     <=5%

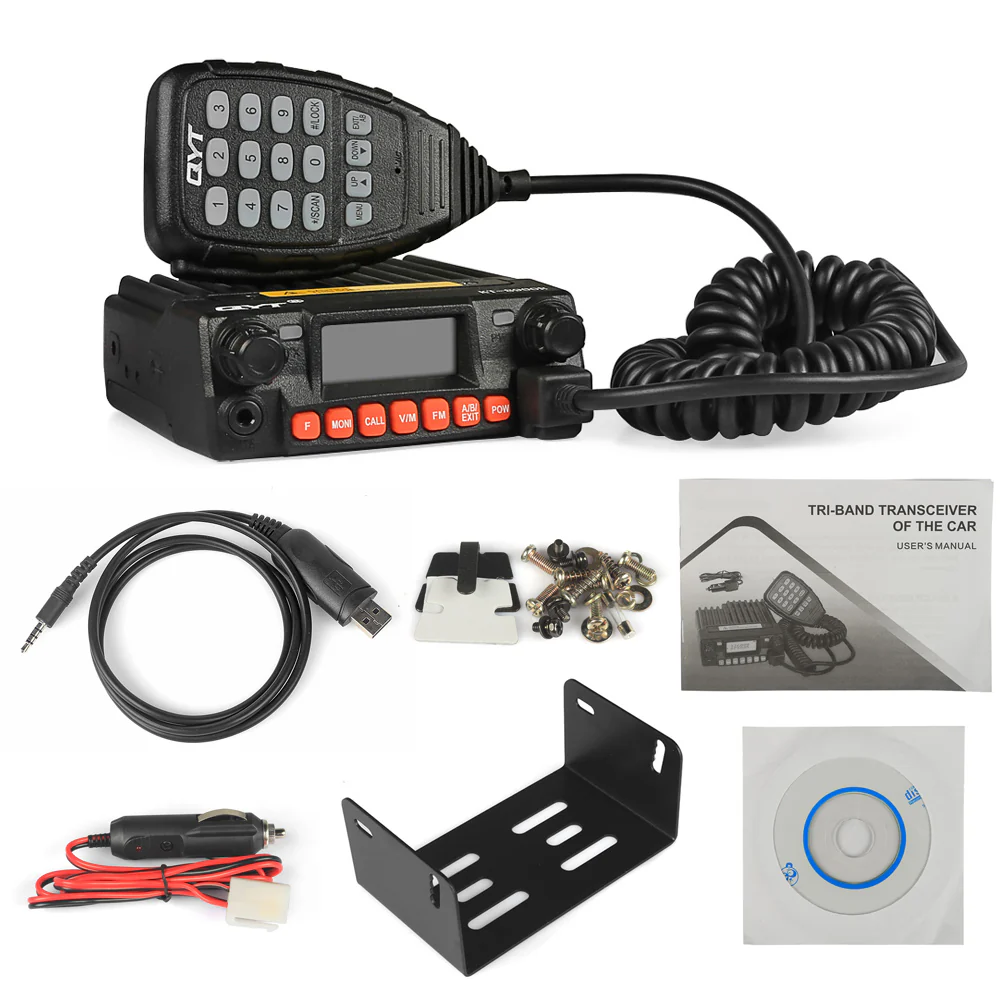

Package Content:

1 x New QYT KT-8900R Machine

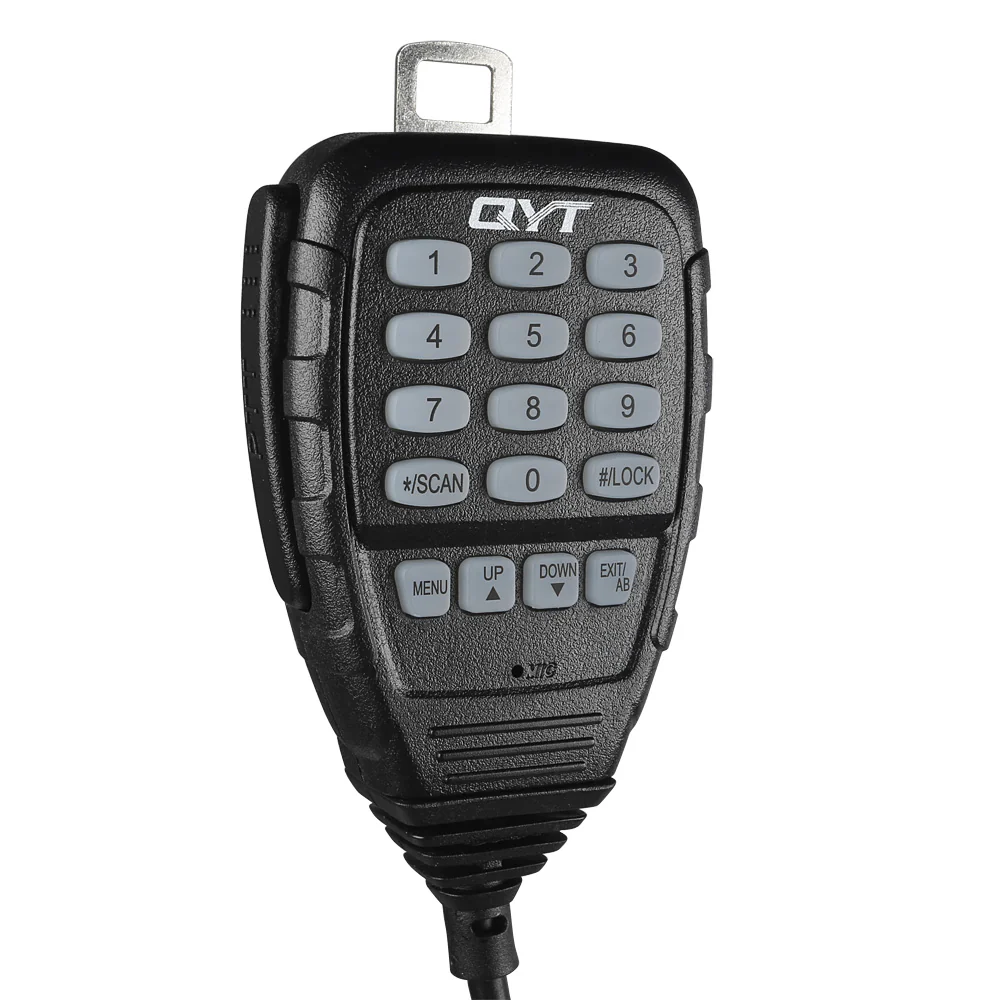

1 x Handheld Microphone
1 x Mounting bracket
1 x Power cable
1 x User's manual
1 x Programming Cable
