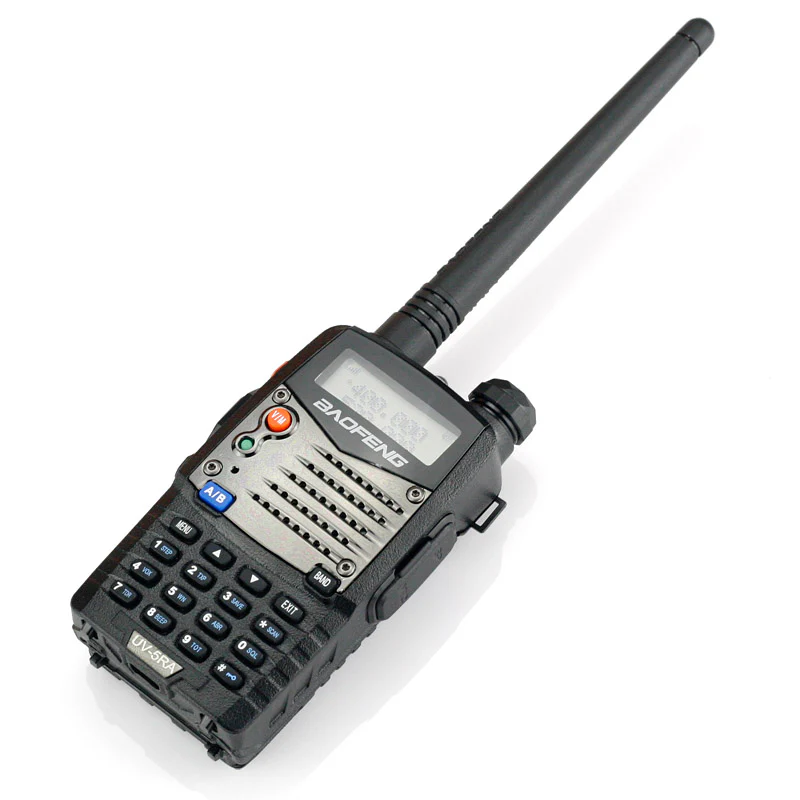

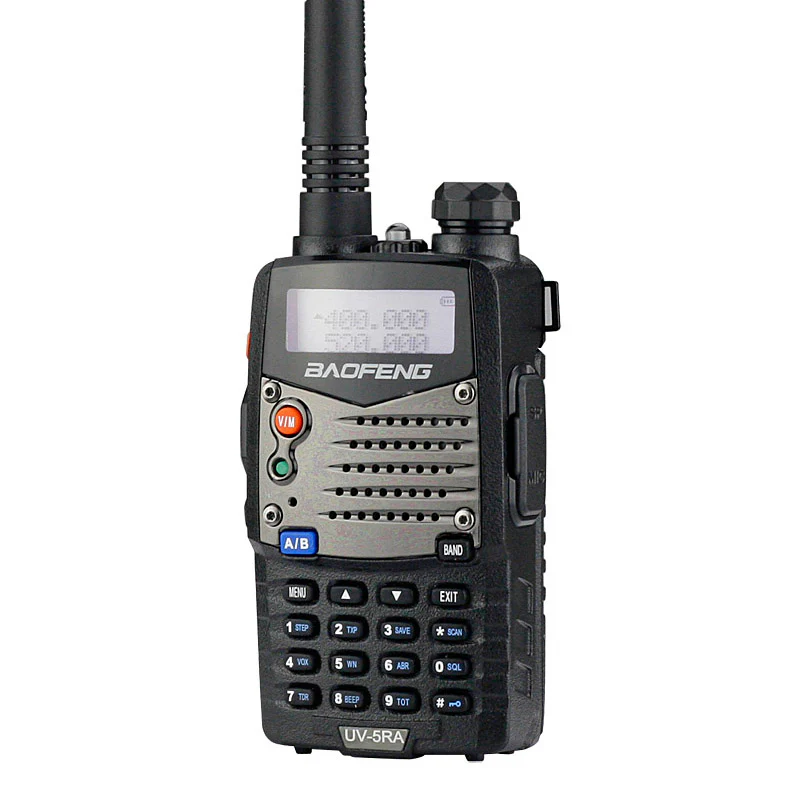

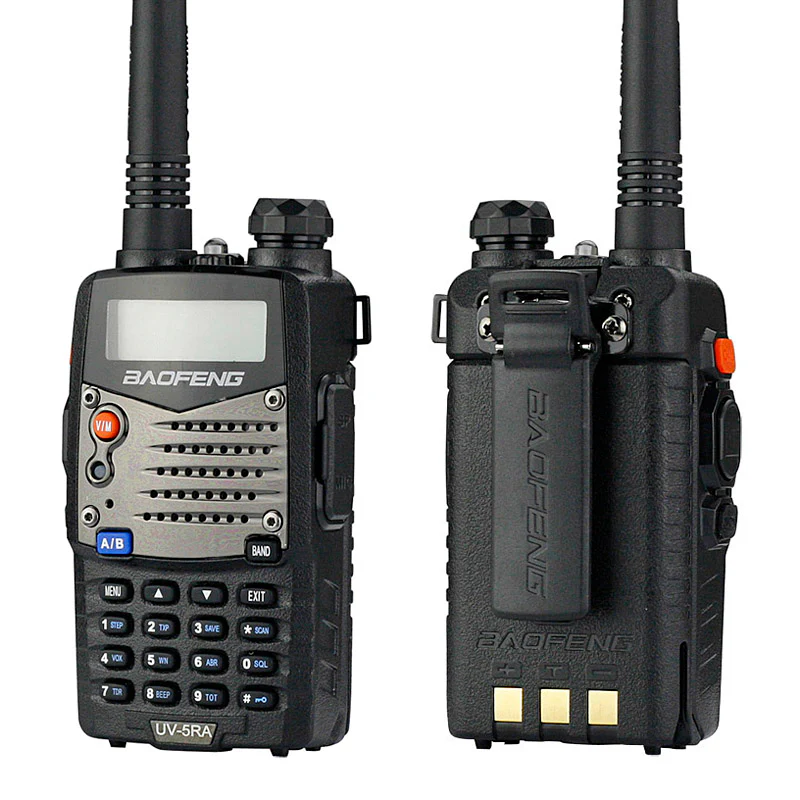

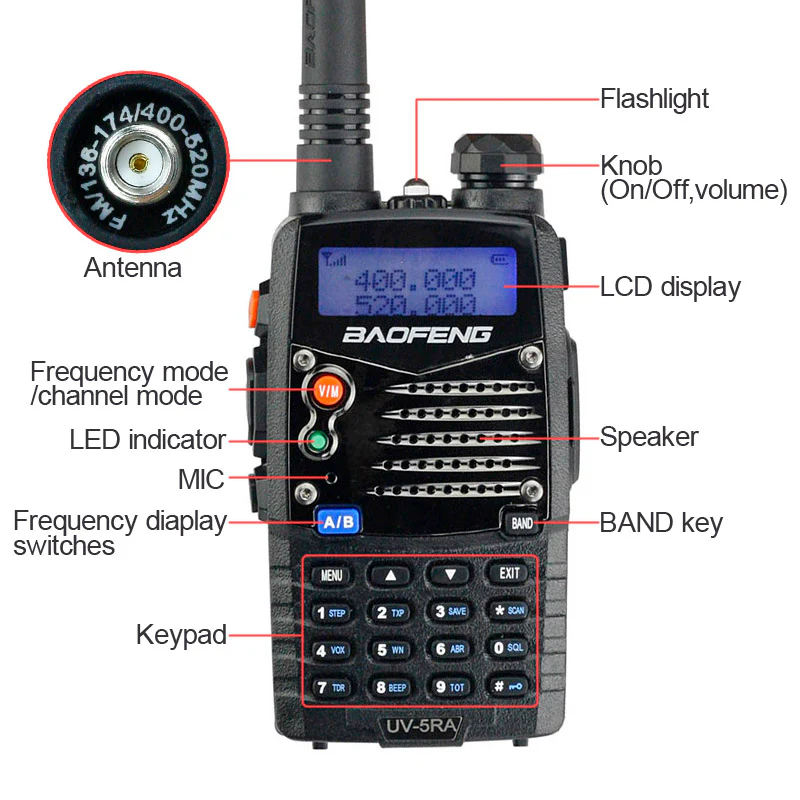

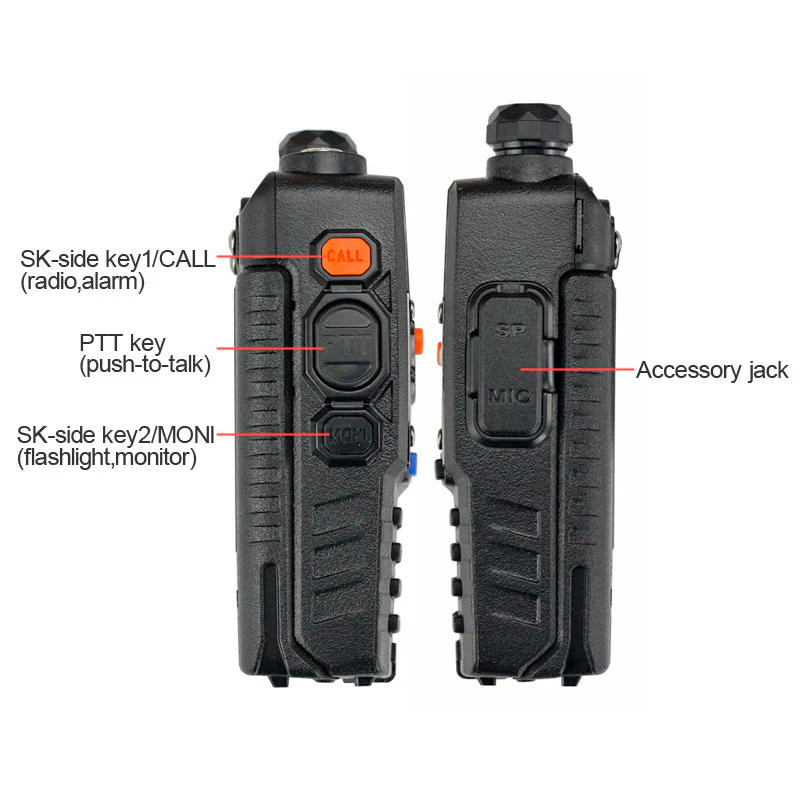

Baofeng UV-5RA | Dual Band | 4/1W | 128CH | FM Radio | TOT [DISCONTINUED]

▸ FCC ID: 2AJGM-UV5R

Functions:
1. Frequency Range: 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX) | 65-108MHz (FM RX Only)
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1 Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Burst Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10. High /Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
　

Specifications:

General
Frequency Range	65-108MHz (FM Receive only) 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX)
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain Dual-Band Antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension（W x H x D）	100 x 52 x 32 mm
Weight	250g （including battery; antenna）
Transmitter
Output power	4W / 1W (Max 5W)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation	＜7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	＜10

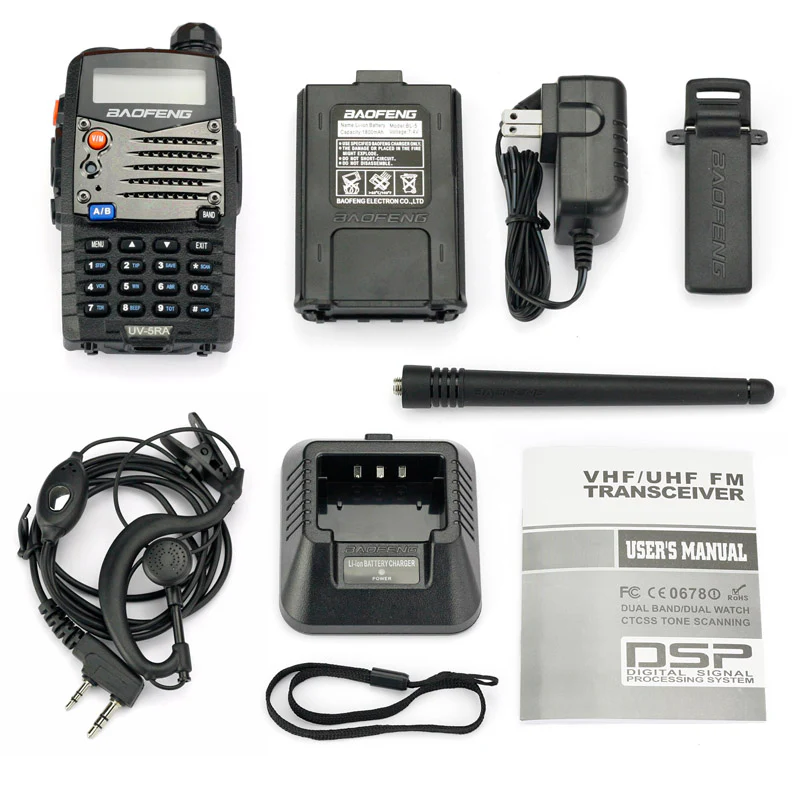

Package:
1 x BaoFeng UV-5RA Two-Way Radio

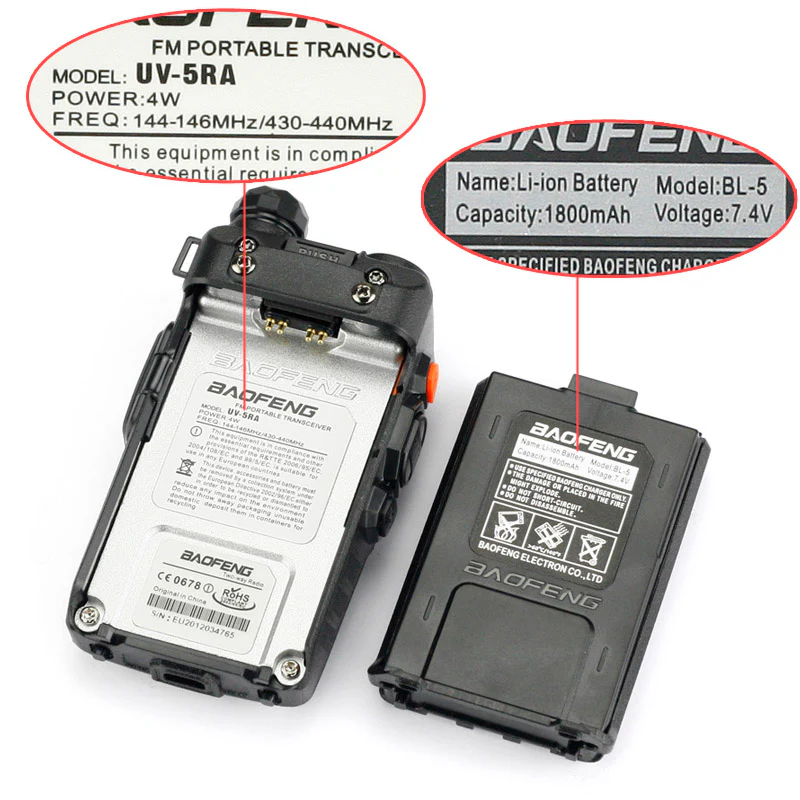

1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x adapter

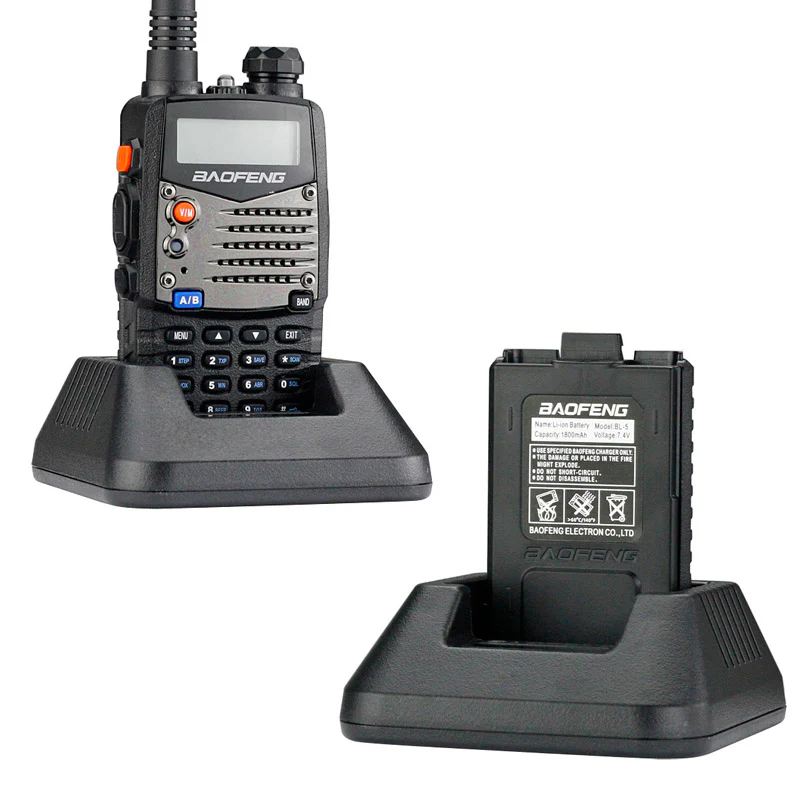

1 x Desktop Charger ( 100V ~ 240V )
